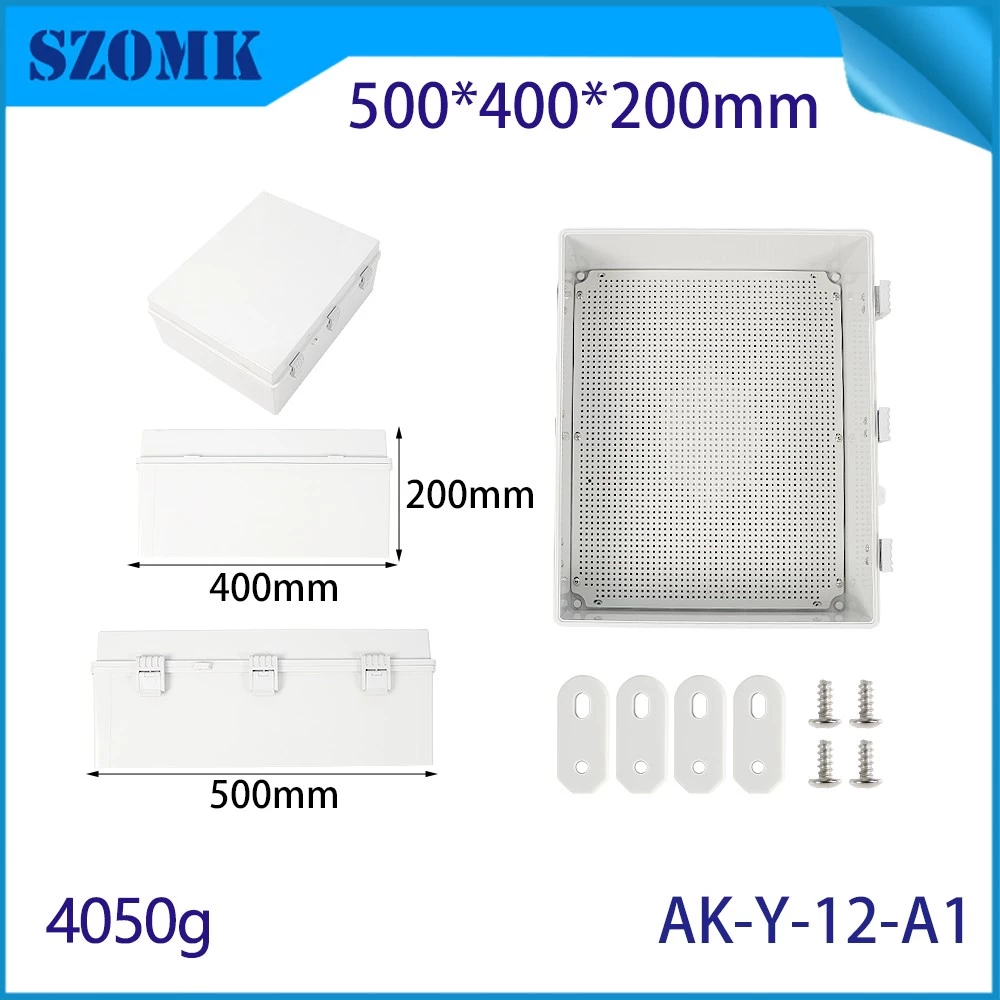

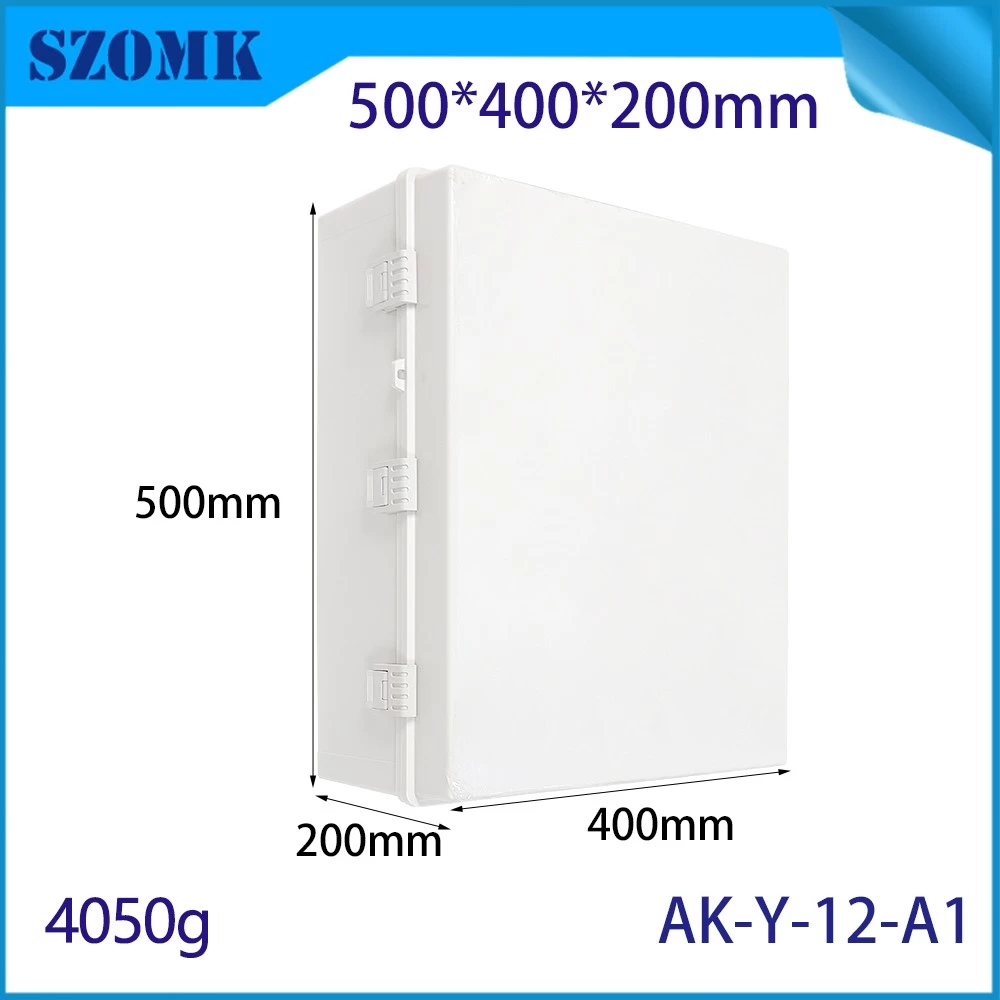

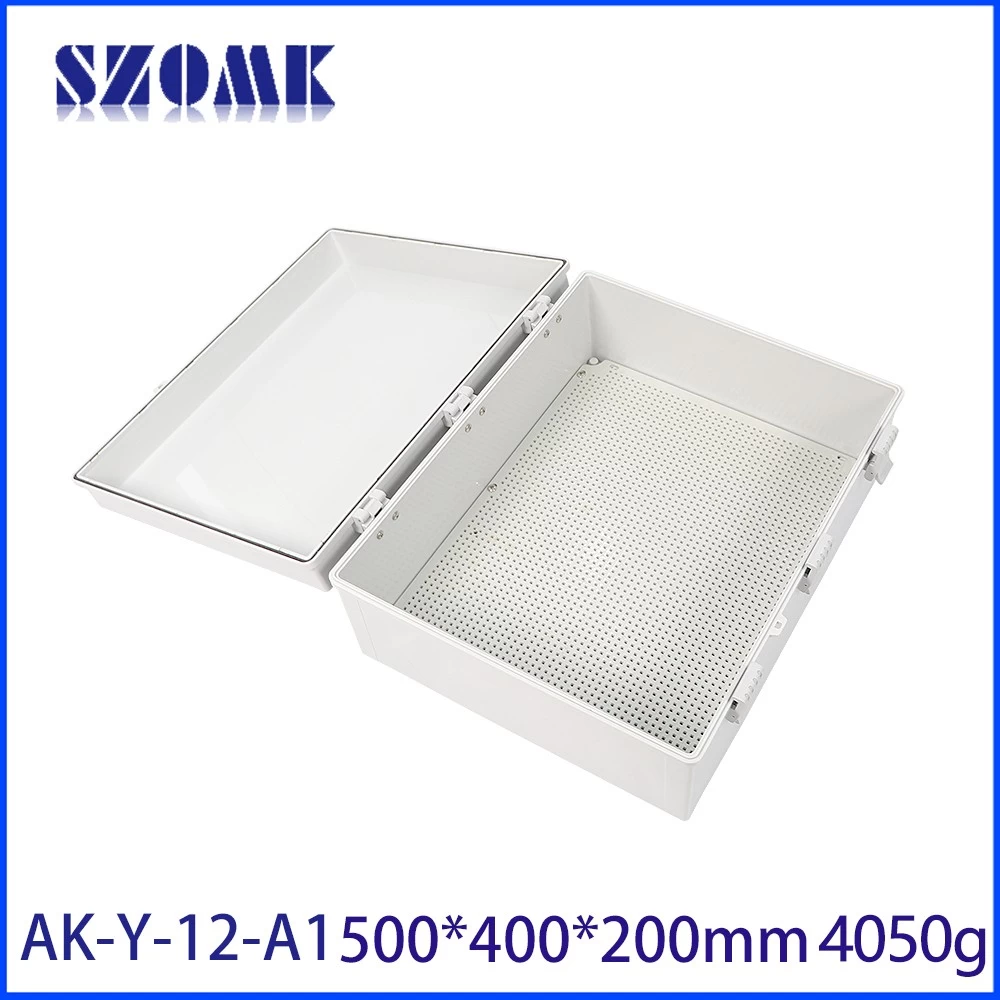

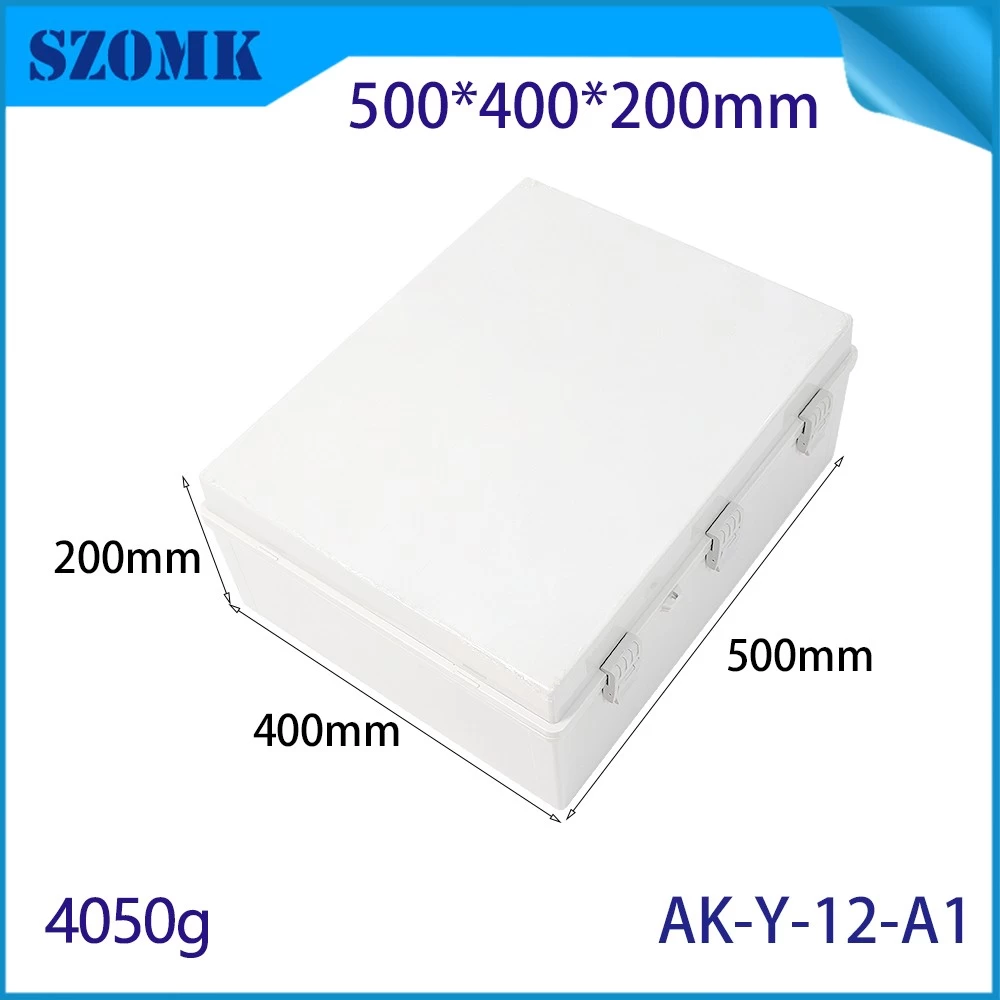

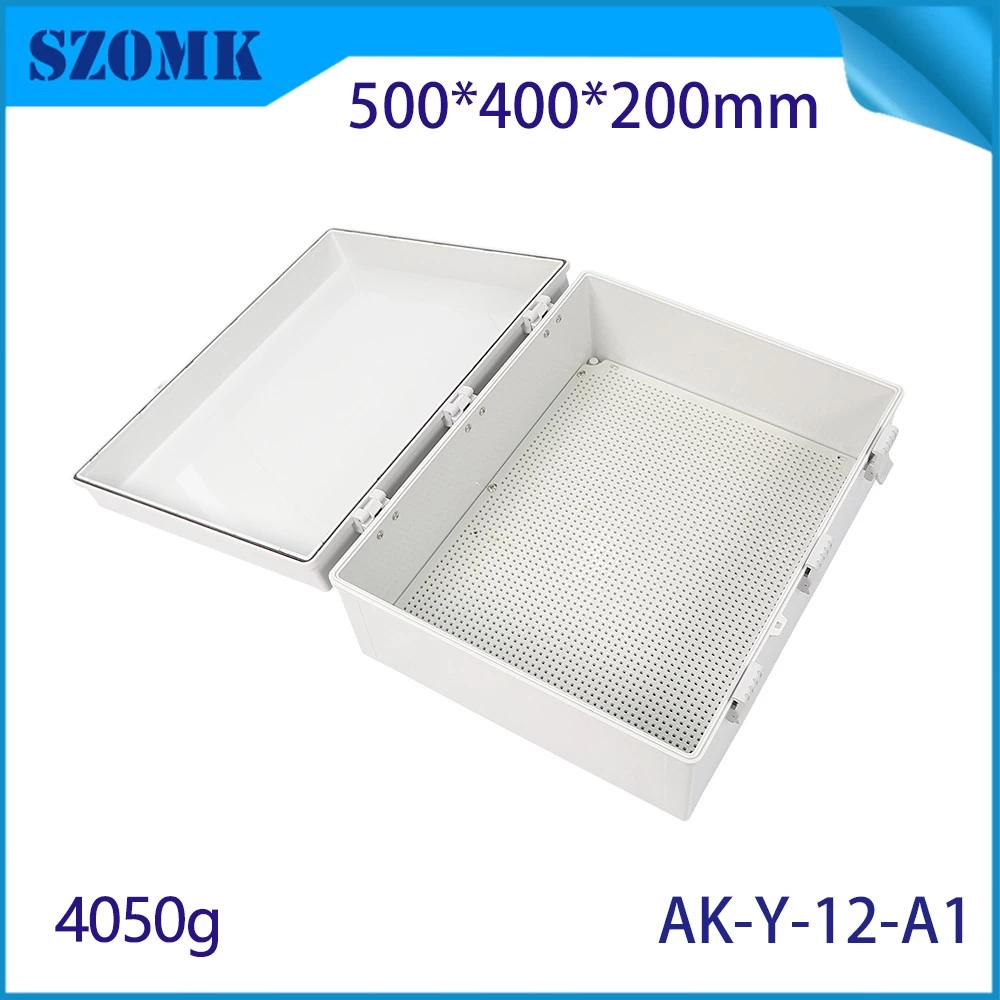

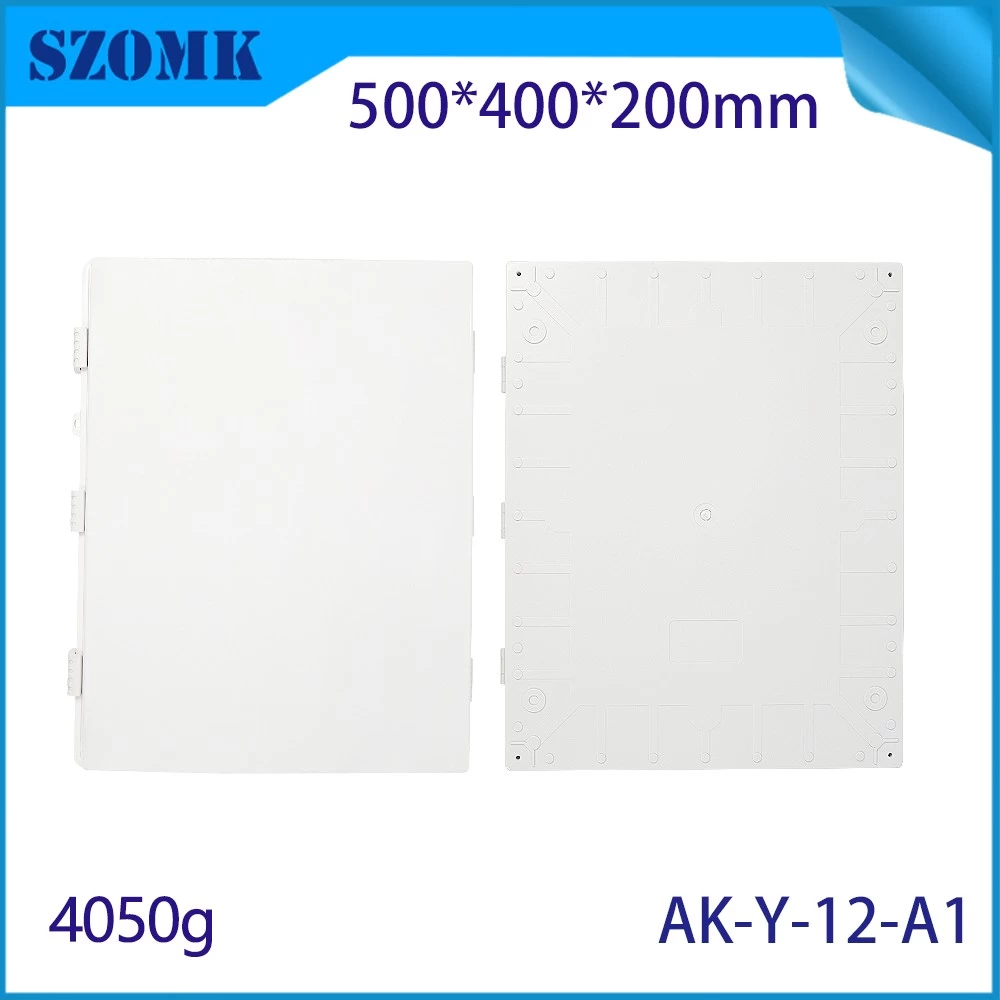

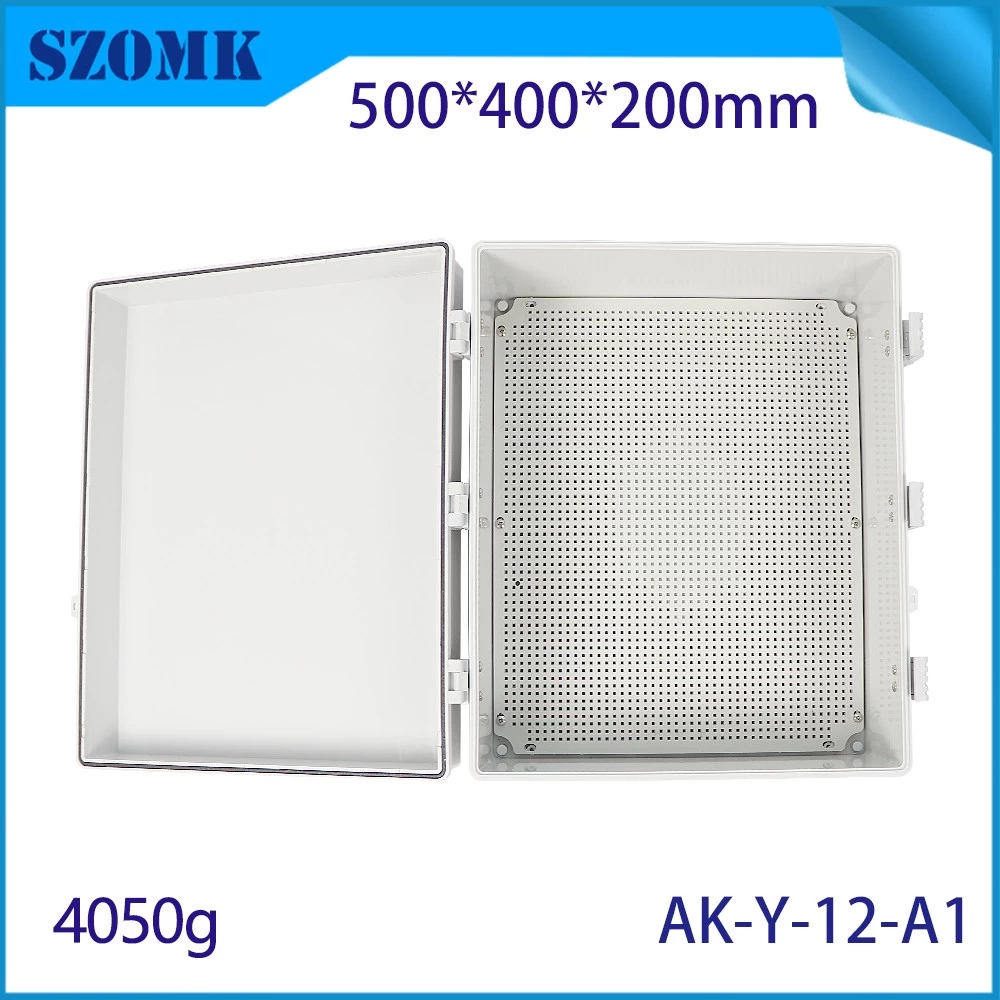

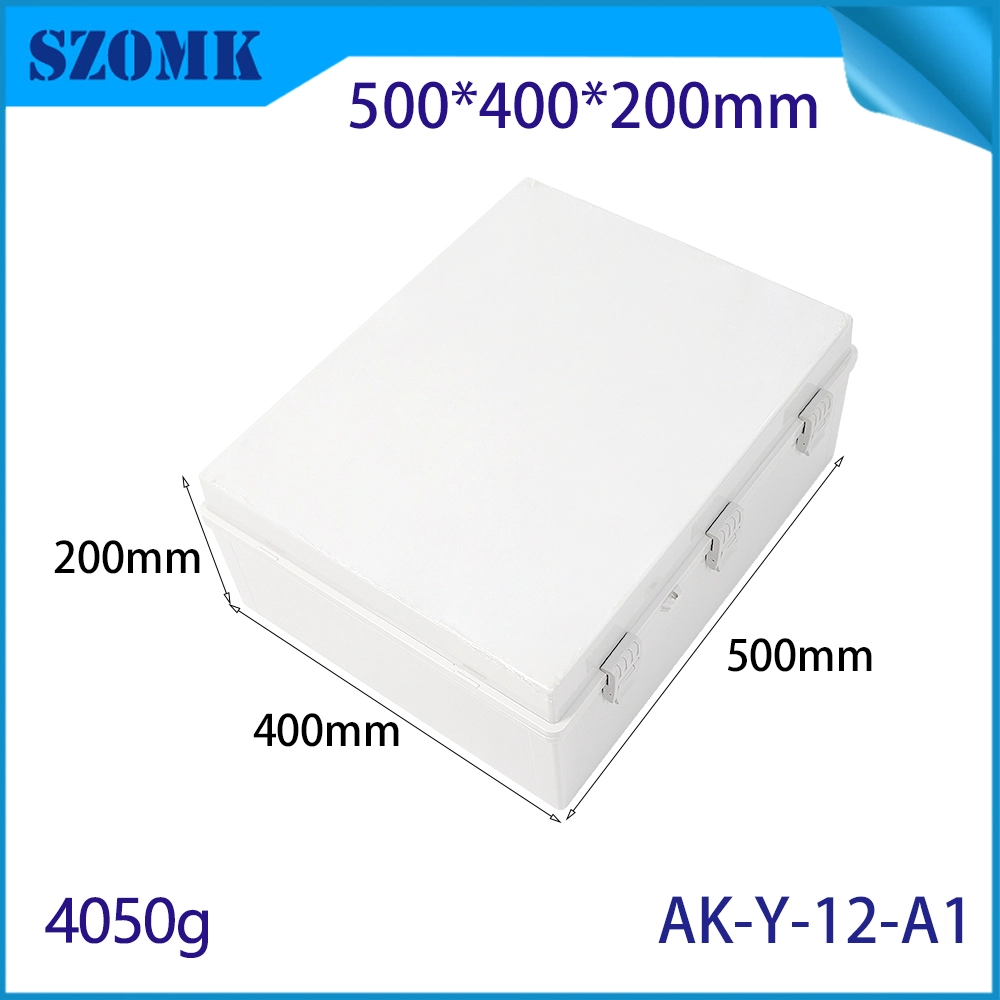

AK-Y-12A1 Ip67 Abs Plastic Electronic Housing Junction Box Enclosure For Electrical Equipment Antidust Waterproof 500x400x200mm
- 1、Model Number：AK-Y-12A1
- 2、Size：500X400X200MM
- 3、Product Name：IP67 Hinged Waterproof Junction Box
- 4、Material：ABS
- 5、Features：The electronic instrument enclosures hinge cover waterproof housing combines convenient maintenance (hinge design) and high-strength protection (waterproof and dustproof) .
- 6、Application：Suitable for industrial, outdoor and smart equipment fields.
What can SZOMK do for you?
Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)
6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.
Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
AK-Y-12A1 Ip67 Abs Plastic Electronic Housing Junction Box Enclosure For Electrical Equipment Antidust Waterproof 500x400x200mm
| product parameter | |
| Product Name | IP67 electrical housing hinge |
| model | AK-Y-12A1 |
| type | Cable junction box |
| External dimensions | 500X400X200MM |
| color | Gray |
| Material | ABS |
| feature | Installation board, waterproof, dustproof |
| Function | Special resistance to impace, excellent electrical insulation |
| application | Outdoor electronic equipment |
| Custom Services | CNC holes, UV light, logos, oil paintings, PVC stickers, etc. |
| Drawing format | 2D/3D/CAD/DWG/STEP/PDF/IGS |
| Certificate | IP67/CE/ROHS/ISO9001 |
| IP67 Hinge lid waterproof box | ||
| Model | Dimensions (l*w*h) mm | |
| AK-Y-01A1 | 300x200x160 | Plastic buckle cable junction box IP67 waterproof junction box High quality plastic hinge box, opaque ABS material, transparent cover PC material (A2 type) |
| AK-Y-01A2 | 300X200X160 | |
| AK-Y-02A1 | 300x200x170 | |
| AK-Y-02A2 | 300X200X170 | |
| AK-Y-03A1 | 300X200X180 | |
| AK-Y-03A2 | 300X200X180 | |
| AK-Y-04A1 | 300x300x170 | |
| AK-Y-04A2 | 300X300X170 | |
| AK-Y-05A1 | 300x300x180 | |
| AK-Y-05A2 | 300X300X180 | |
| AK-Y-06A1 | 400X300X150 | |
| AK-Y-06A2 | 400X300X150 | |
| AK-Y-07A1 | 400X300X160 | |
| AK-Y-07A2 | 400X300X160 | |
| AK-Y-08A1 | 400x300x170 | |
| AK-Y-08A2 | 400X300X170 | |
| AK-Y-09A1 | 400X300X180 | |
| AK-Y-09A2 | 400X300X180 | |
| AK-Y-10A1 | 400X300X200 | |
| AK-Y-10A2 | 400X300X200 | |
| Ak-y-11a1 | 400X300X220 | |
| AK-Y-11A2 | 400X300X220 | |
| AK-Y-12A1 | 500X400X200 | |
| AK-Y-12A2 | 500X400X200 | |
| AK-Y-13A1 | 600x400x220 | |
| AK-Y-13A2 | 600X400X220 | |
| AK-Y-14A1 | 600X500X220 | |
| AK-Y-14A2 | 600X500X220 | |
| AK-Y-15 | 800*600*260 | |
| AK-02-35A1-1-JK | 100x150x70 | Stainless steel quilt junction box IP67 waterproof box, opaque ABS material, transparent cover PC material. (Type A2) |
| AK-02-35A2-1-JK | 100X150X70 | |
| AK-02-36A1-JK | 200x100x75 | |
| AK-02-36A2-JK | 200X100X75 | |
| AK-02-37A1-JK | 150x150x90 | |
| AK-02-37A2-JK | 150X150X90 | |
| AK-02-38A1-JK | 220X110X170 | |
| AK-02-38A2-JK | 220X110X170 | |
| AK-02-39A1-JK | 290X190X140 | |
| AK-02-39A2-JK | 290X190X140 | |
| AK-02-40A1-JK | 390x290x160 | |
| AK-02-40A2-JK | 390X290X160 | |
| AK-02-41A1-JK | 350x250x150 | |
| AK-02-41A2-JK | 350X250X150 | |
| AK-02-42A1-JK | 330x330x130 | |
| AK-02-42A2-JK | 330X330X130 | |
【Excellent Durability】—SZOMK outdoor junction boxes are made of high-quality ABS material, which has excellent impact resistance and excellent electrical insulation properties. (PS:opaque ABS material, transparent upper cover PC material)
【IP67 Rated Waterproof】- Electrical enclosures feature IP67 waterproof and weatherproof design, they provide superior protection from water, rain, dust, snow, oil, UV rays and other environmental factors. This rugged design makes it ideal for use in both indoor and outdoor environments, ensuring your electrical equipment is protected from harsh conditions.
【Easy Installation】- Comes with a mounting plate for easy installation, which can easily install various devices, saving your precious time and energy.
【Convenient to Use】- Our project box has a simple hinged lid that opens and closes easily, and a latch that provides a reliable watertight seal, making maintenance and operation easy.
【Suitable for DIY Projects】-This sturdy plastic electric waterproof box is easy to drill and can be molded to fit your specific needs, making it the perfect choice for your creative DIY projects.
Tag:
Electrical Enclosure Hinged
,IP67 Hinged Plastic Electrical Boxes
,IP67 waterproof box with hinged lid
