customizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure boxcustomizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure box

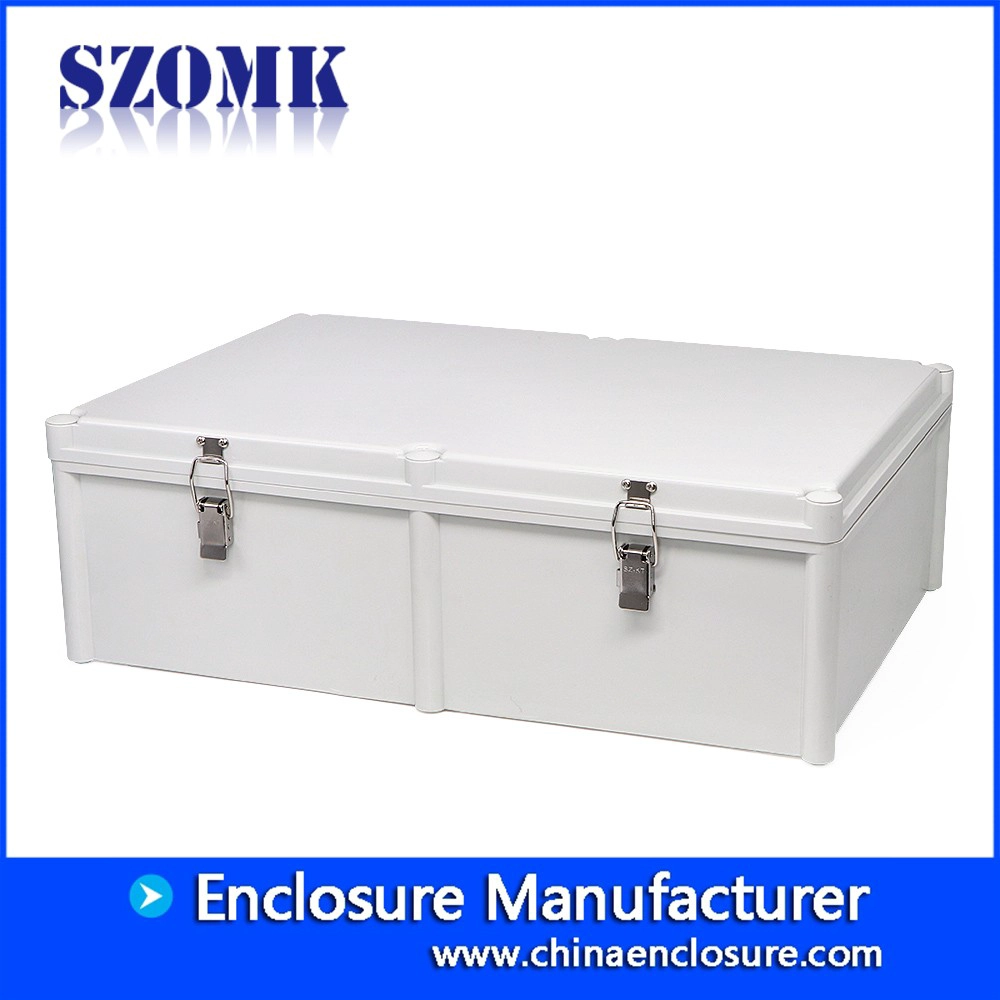

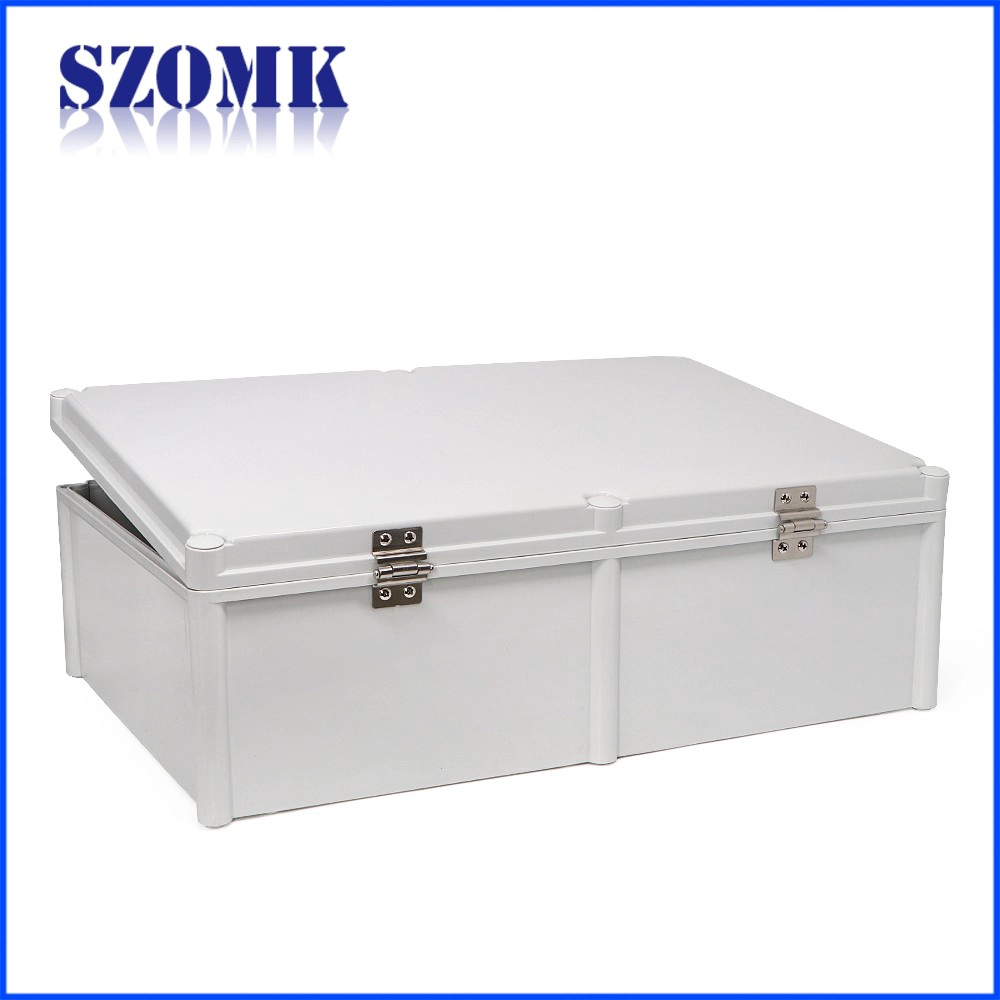

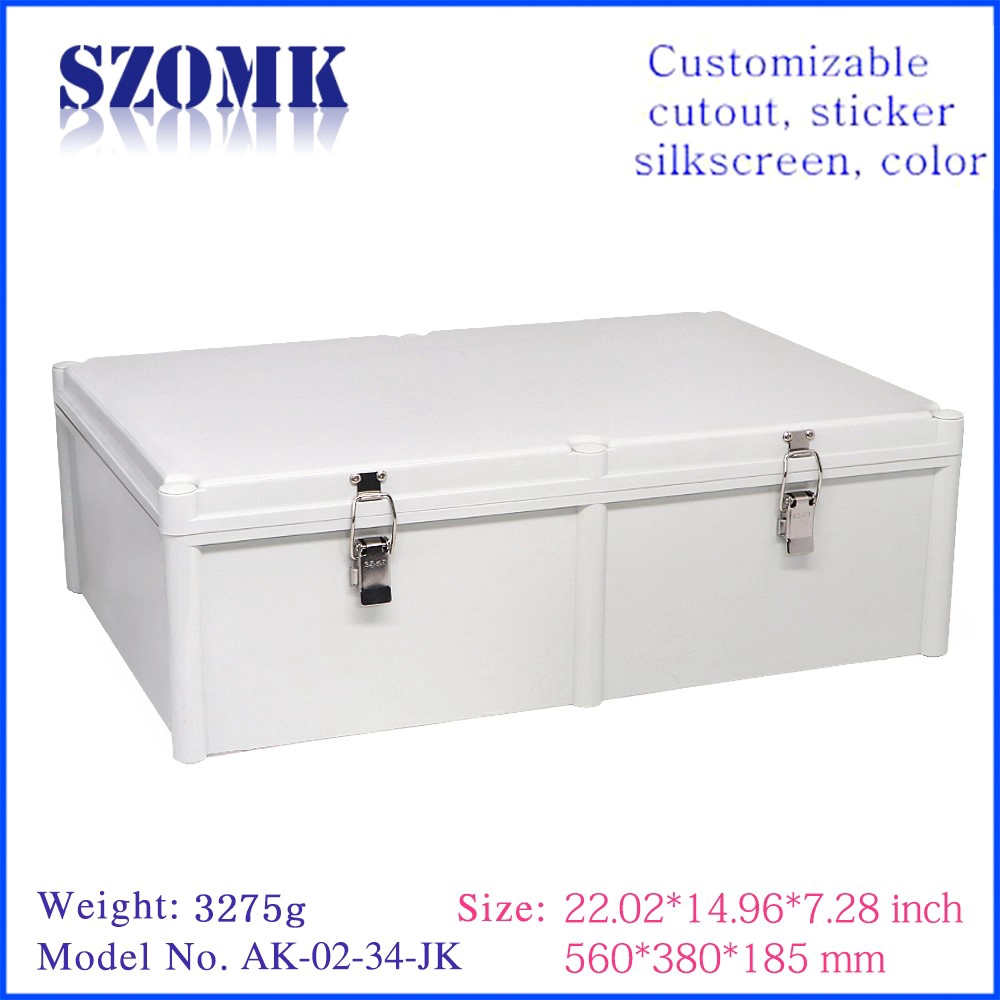

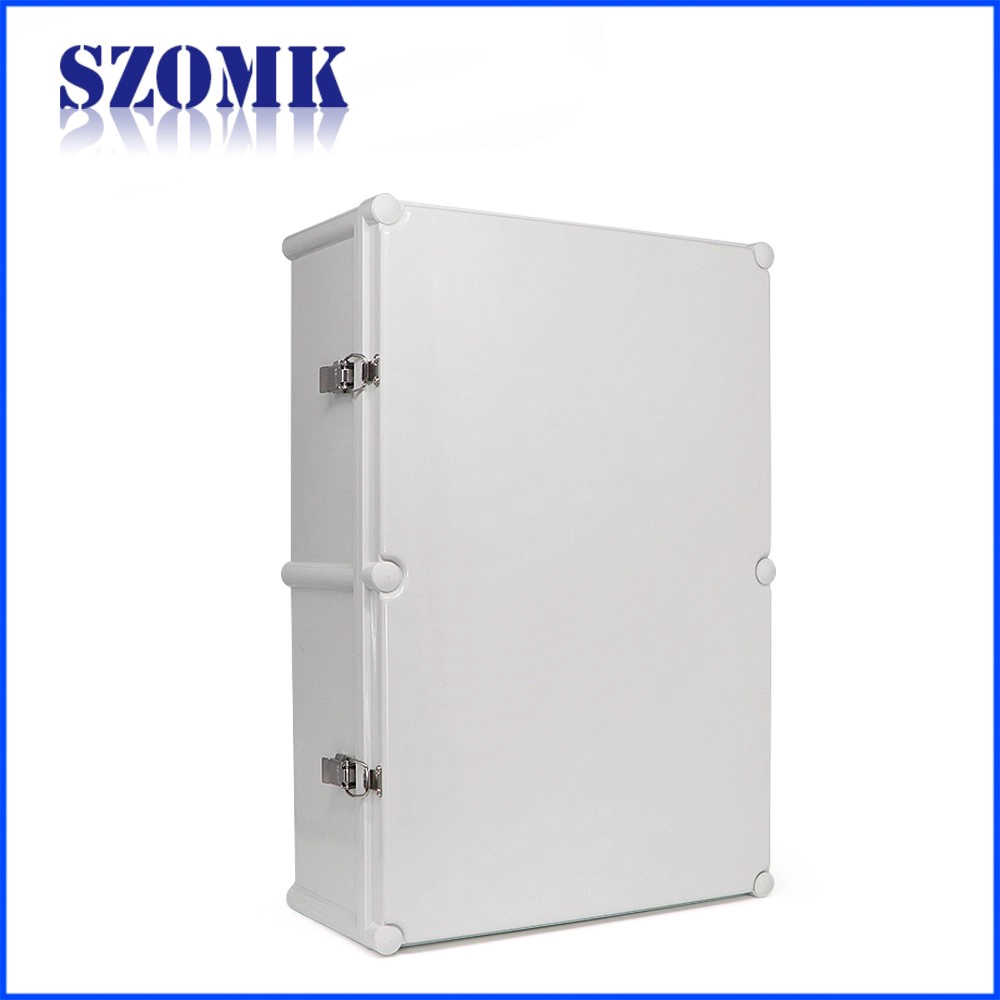

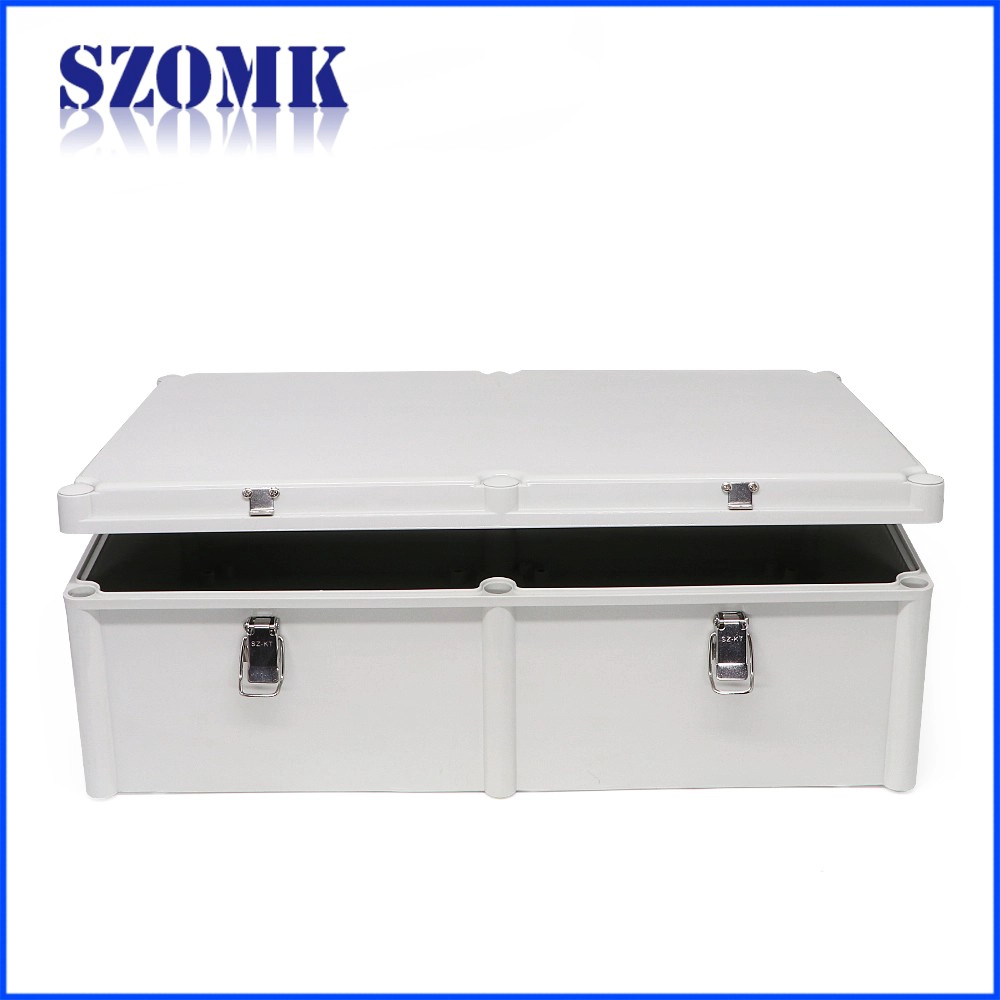

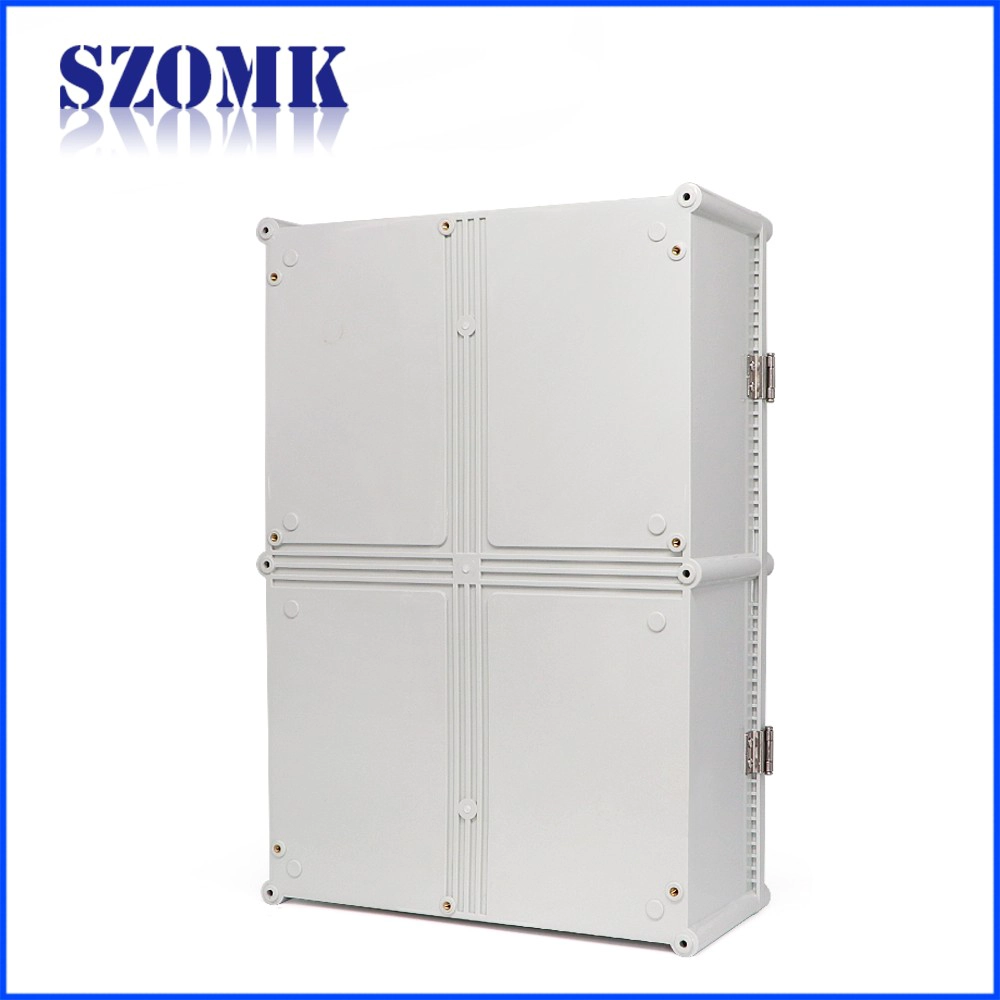

customizable IP65 waterproof enclosure junction box hinged plastic electrical box waterproof instrument housing 560*380*185mm AK-02-34-JK szomk plastic device control enclosure box

  • Model Number: AK-02-34-JK
  • External Size: 560*380*185 mm
  • Net Weight: 3275 g
  • Color: light grey,customizable
  • Material: ABS, can change to PC, Flame retardant, UV protection
  • Customization: drilling, printing, membrane keyboard,etc.
  • Type: hinged waterproof electronics plastic case enclosure box
  • MOQ: 1 piece
  • Capacity: OEM order
  • Certification: RoHS, Reach
  • Payment: Paypal,T/T,Western Union etc.

Specifications:

Hingedplatic waterproof electrical enclosure junction box


Type Hinged waterproof device enclosure junction box
Model number  AK-02-34-JK

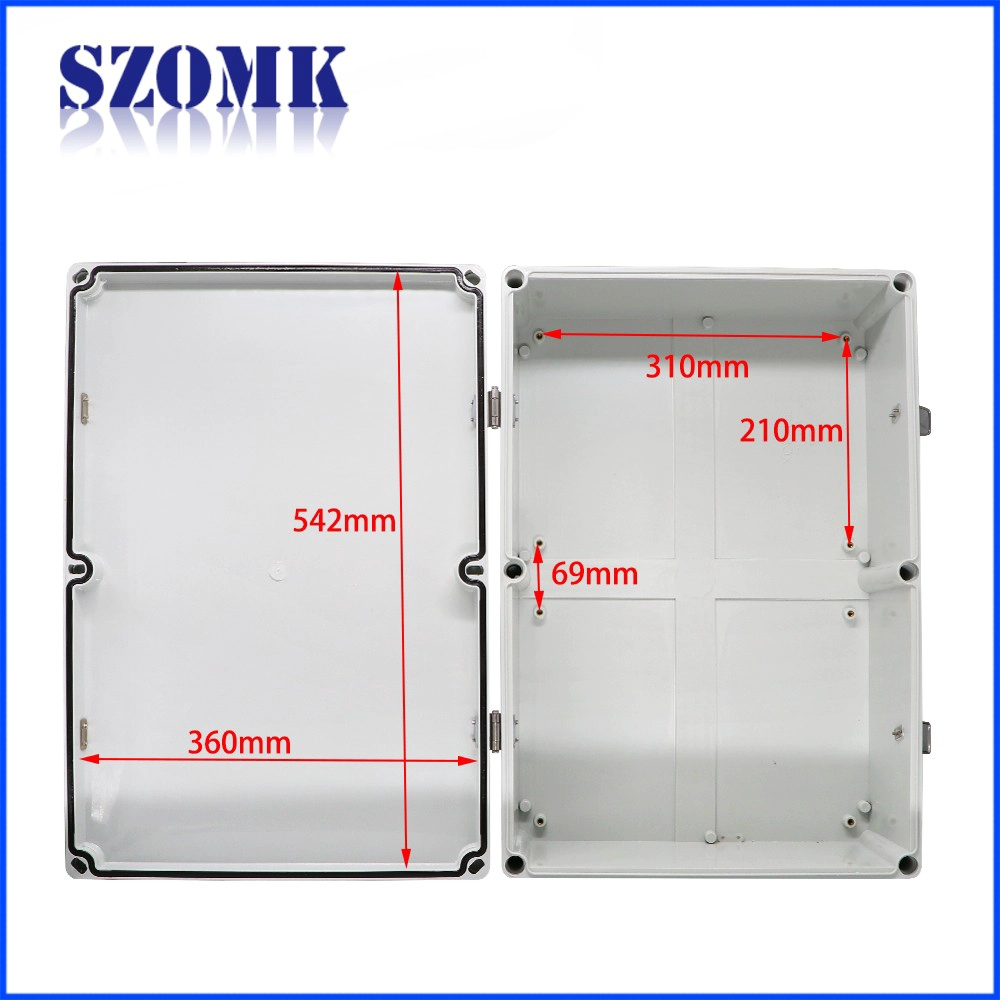

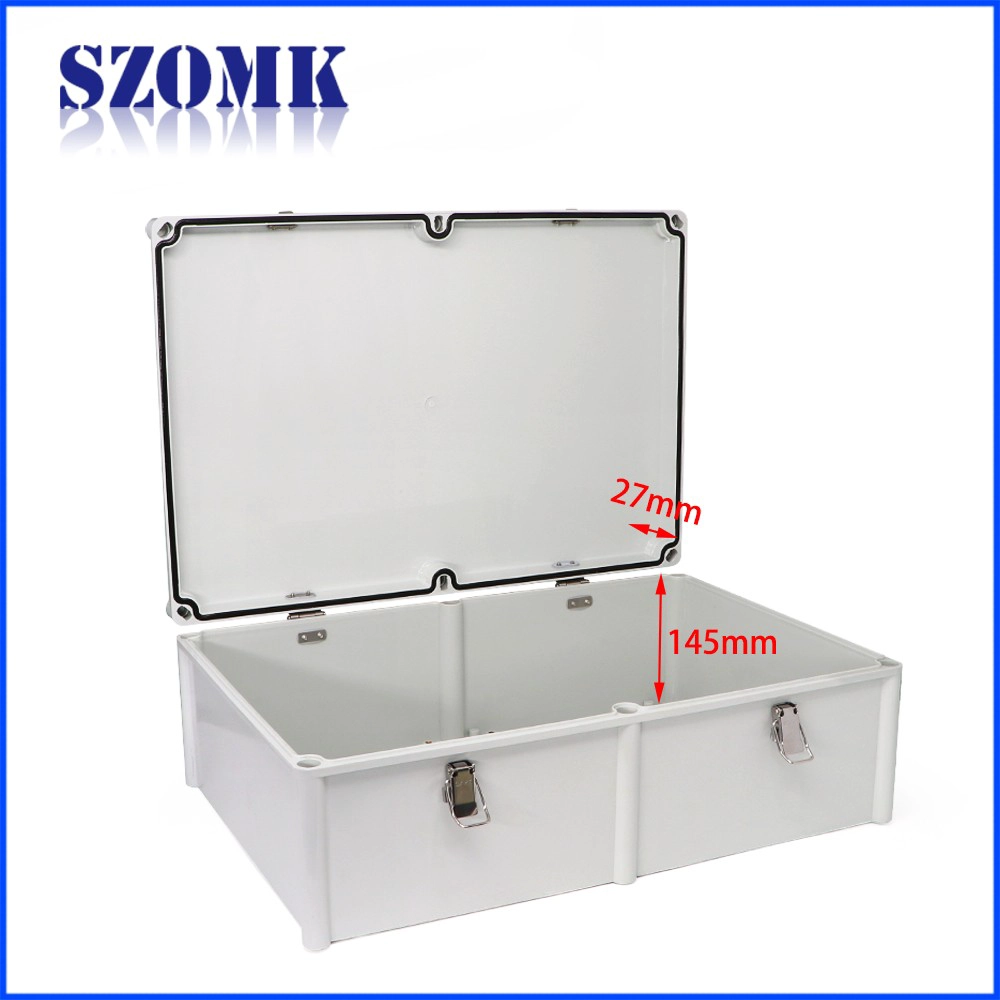

Size  560*380*185mm
Brand  SZOMK
Material  ABS plastic
Waterproof rating IP65
Color  Light grey
Capacity 100000 parts per week
Packaging  Carton and Foam
Operating temperature  -45℃ to85℃

Features: 

1.Made of high quality raw abs plastic, high hardness and durable in use.


2. This box is dust and waterproof resistant. Hinged type easy for mounting.


3. With good performance: waterproof, moisture-proof, anti-corrosion, isulation resistance,

anti-static.


4. Widely used in electronics project, protect power from waterproof, used from indoor

and outdoor application.


5. Applicable to all kinds of control box, cabinet, electronic product enclosure,

distributionbox etc.


6. Surface mounted, underground electrical enclosure switch junction box.




Here is our customize service:



1, Design enclosure                  2, Create private mold

3, Laser engraving                    4, Change color

5, Acrylic plate                             6, Cutout

7, Milling surface                          8, Silkscreen/ UV printing

9, Membrane keyboard

10, PVC label/ composite paper sticker

11, CNC process plastic/ aluminum parts                         

12, Silica gel/ rubber keypad or ring

13, Aluminum/ iron/ steel sheet enclosure

14, Change aluminum case length














Thanks for your time. 
Your inquiry would be responsed within 24 hours. : )
