pcb pluggable terminal block 5.08 mm   2EOMJC-5.08pcb pluggable terminal block 5.08 mm   2EOMJC-5.08pcb pluggable terminal block 5.08 mm   2EOMJC-5.08pcb pluggable terminal block 5.08 mm   2EOMJC-5.08

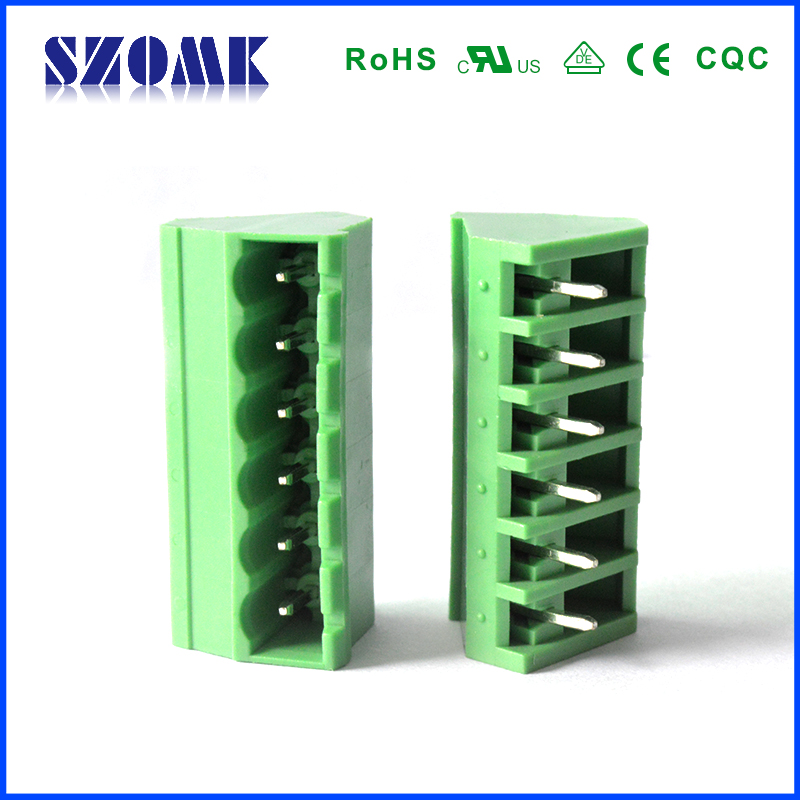

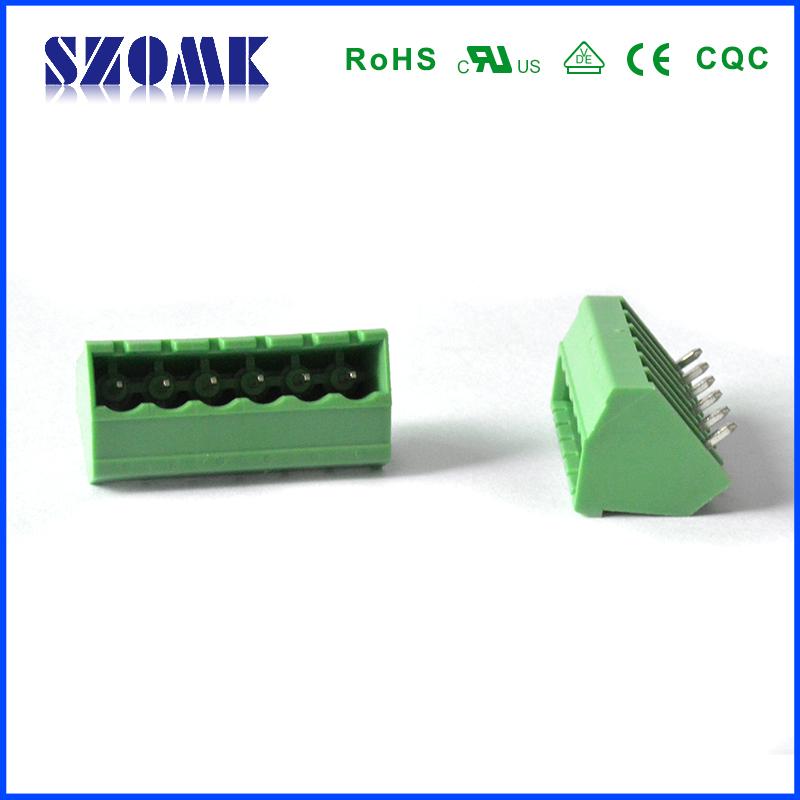

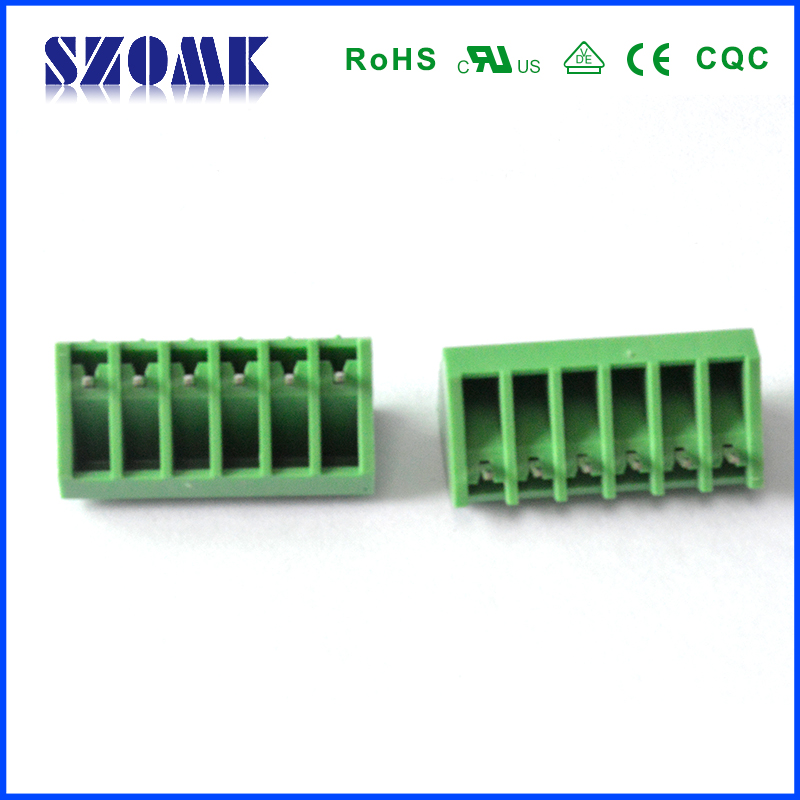

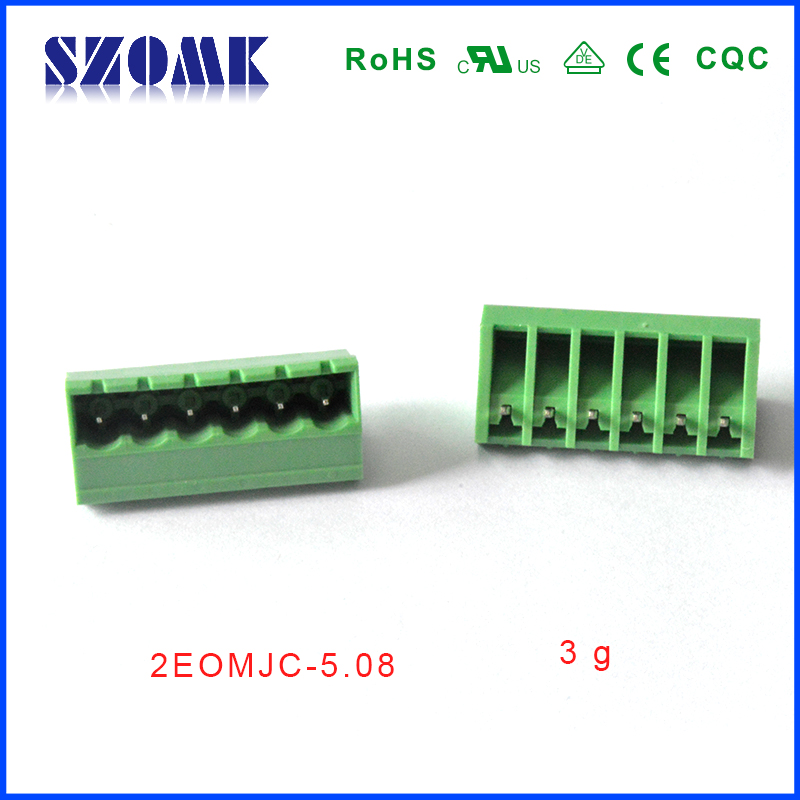

pcb pluggable terminal block 5.08 mm 2EOMJC-5.08

  •       1 Model Number:  2EOMJC-5.08
  •       2 Pitch:5.08
  •       3 Rated: 300V 10A
  •       4 Type: PCB  pluggable Terminal Block Connector
  •       5 Color:green with orange
  •       6 Wire Range: 22-14AWG
  •       7 Pole:2p 3p to any pole
  •       8 Brand: SZOMK
  •       9 Sample Available
Quick Details:

1 Place of Origin: Zhejiang, China (Mainland)
2 Packaging Details:Box length:260mm ,Width:200mm Depth:100mm .1000pcs/box
3 Delivery Detail:normally 3-5 days after payment
4 Top quality products with certification of CE,UL,ROHS
5 Prompt reponse for your inquiry


Characterization

PCB terminal block is mainly characterized by the monomer and the circuit board soldering and wiring easy, and reliable screw connection. The pitch is 3.5, 3.81, 5.0, 5.08,  and so on. The terminal blocks can be combined with 3P and 2P. The products without stitching are also available. The wiring directions are front, side, slope and other different styles
