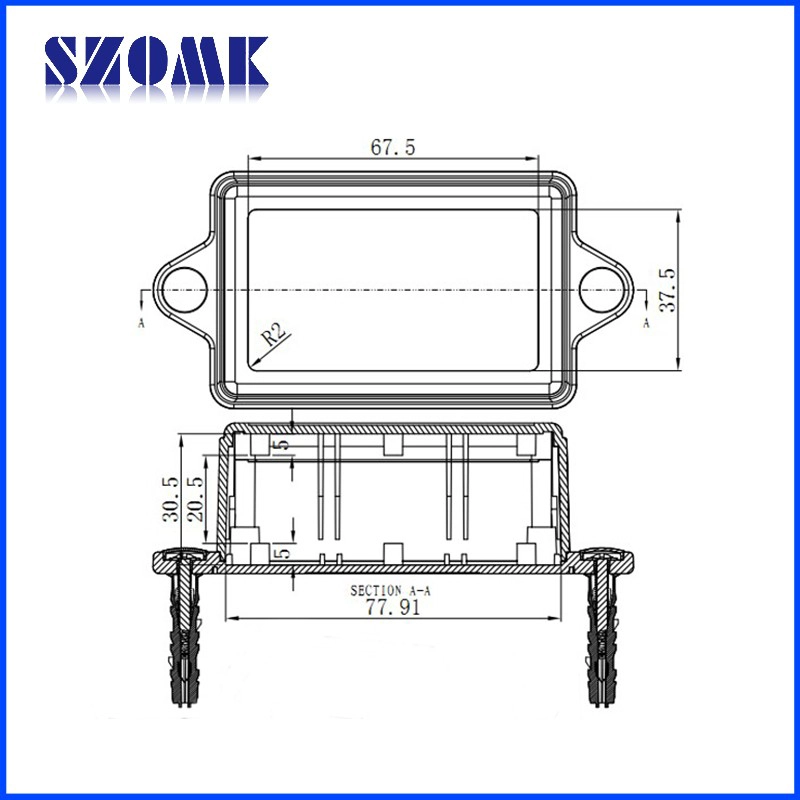

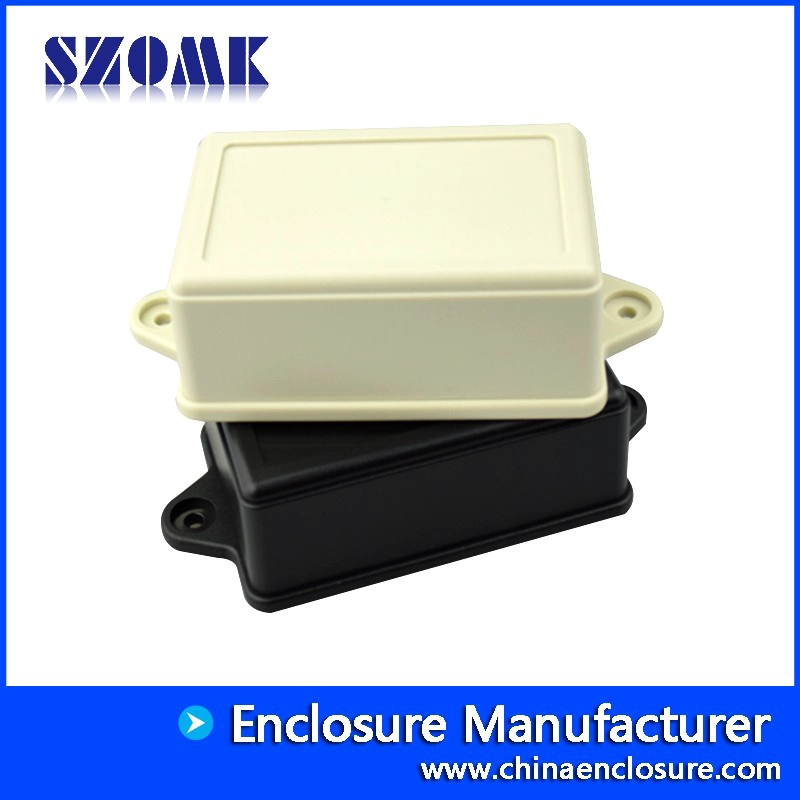

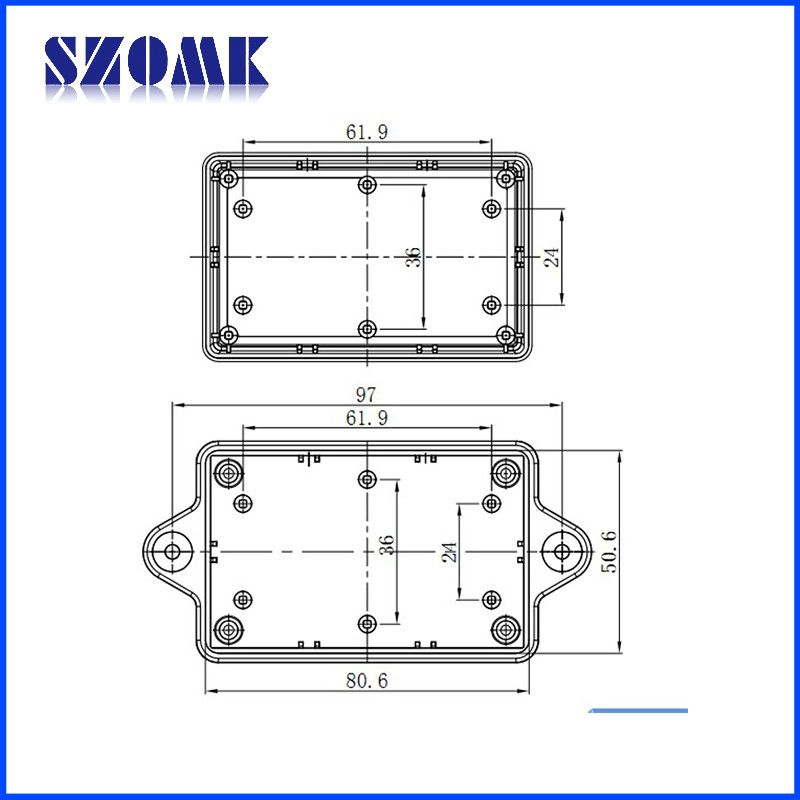

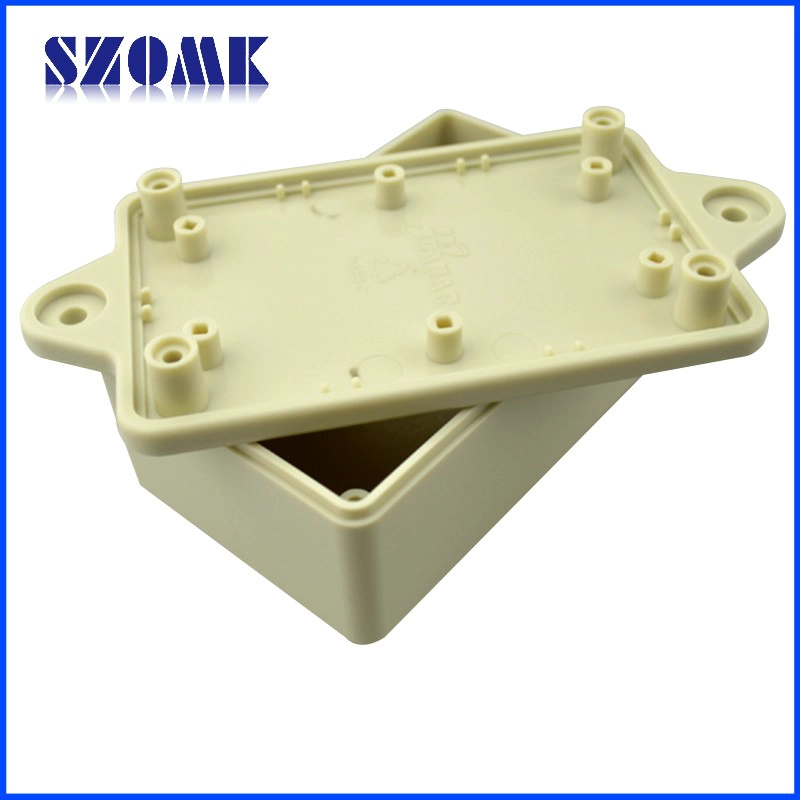

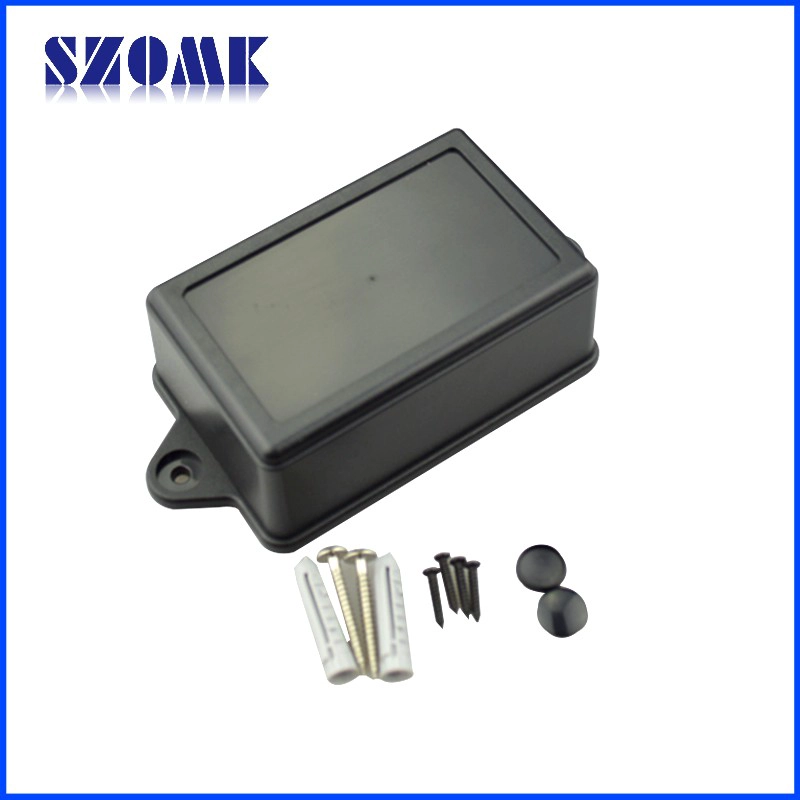

plastic enclosures electrical wall mounting enclosures AK-W-13,85x55x35mm

  • Model Number :AK-W-13
  • Type:Wall-Mounting Plastic Enclosures
  • Out size :85x55x35mm

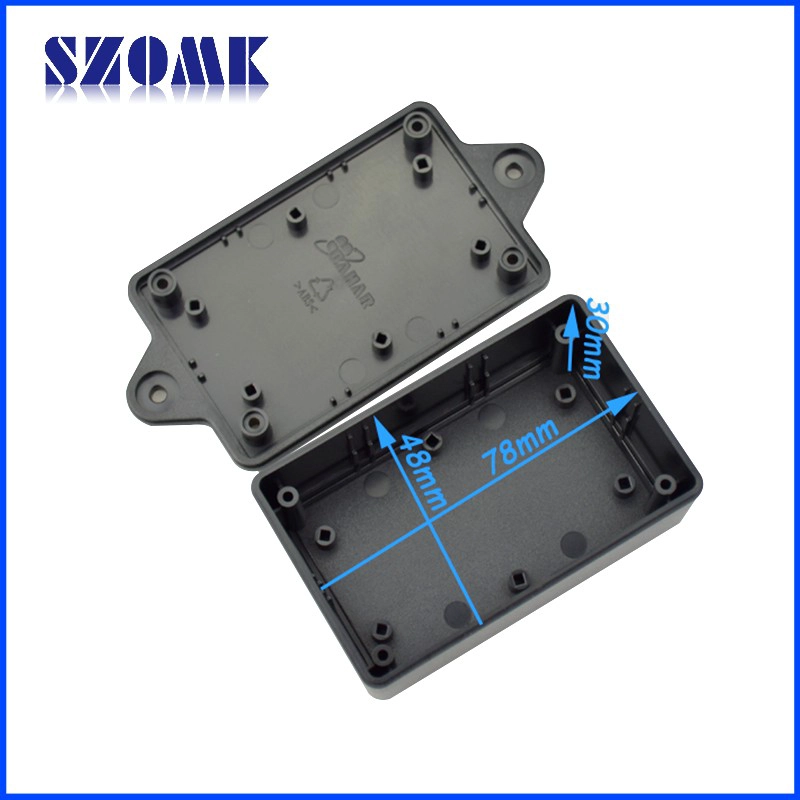

  • Inner Size (PCB size):77,37x47,68x26,7mm
  • Weight:45g
  • Available Color : Black and Light grey
  • Protection Level : IP54
  • Brand Name :SZOMK
  • Payment Way :Paypal/T/T/Escrow/WU/Alipay/Bank Transfer
  • Samples :Available

Features:

1, the product has a separate boxes and cartons.
2, the wall and the shell wall screw, the decorative sheet (grinding screw position).
3, with a simple (client) to match the screw
4, all of pouch packaging.
5, the product is made of a plastic material
6, respectively, according to their needs and drilling.


Main purpose:

In the wall-mounted meter boxes and geographical differences in the different names are used for different industrial main junction boxes, meter boxes, electronic products, such as Shell, is mainly used for indoor and outdoor electrical, communications, fire fighting equipment, iron, electronics, electricity, railways, construction sites, cocks, airports, hotels, large factories, pollution range.
