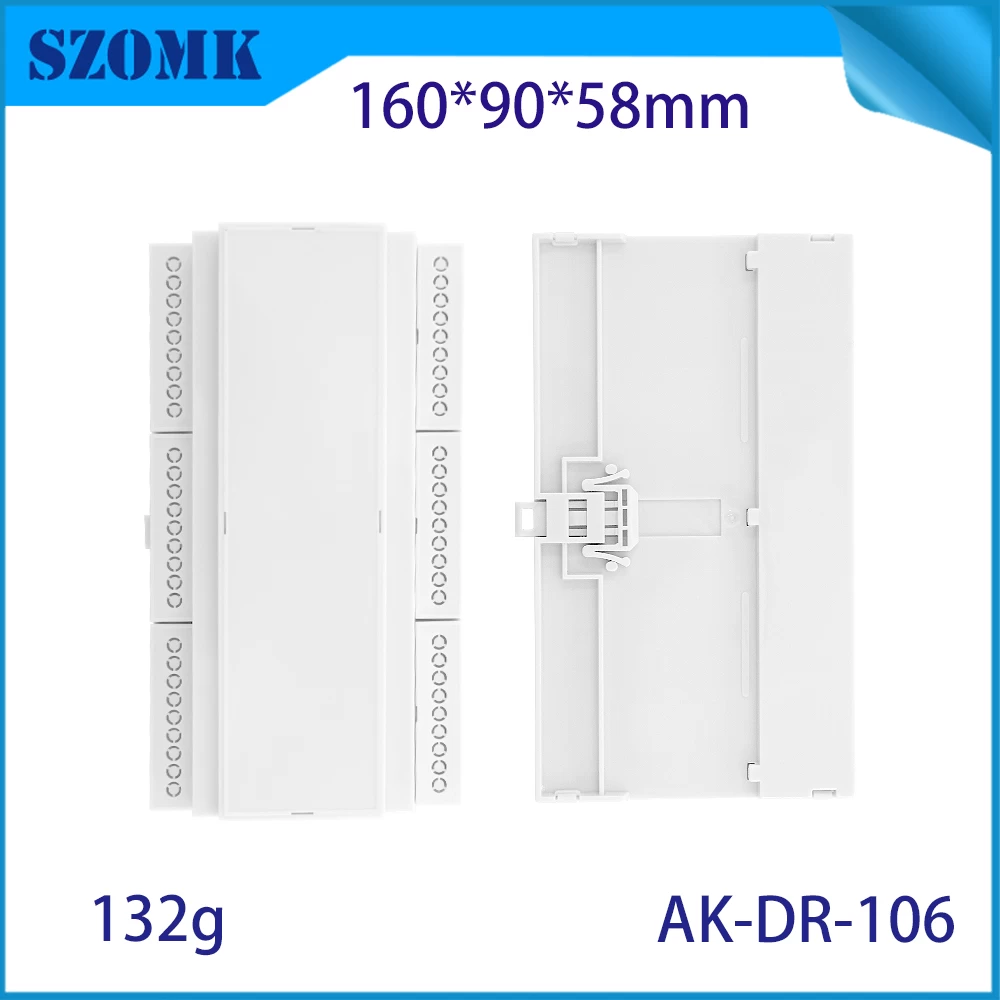

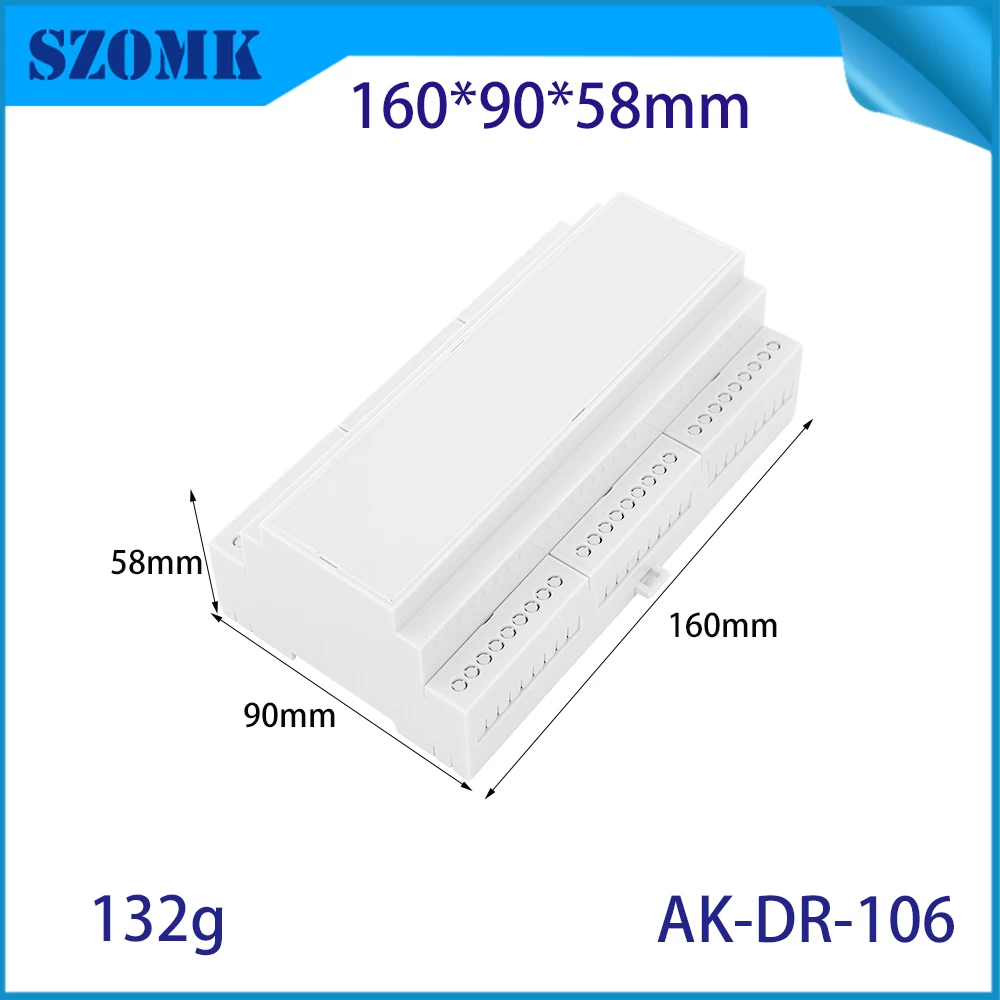

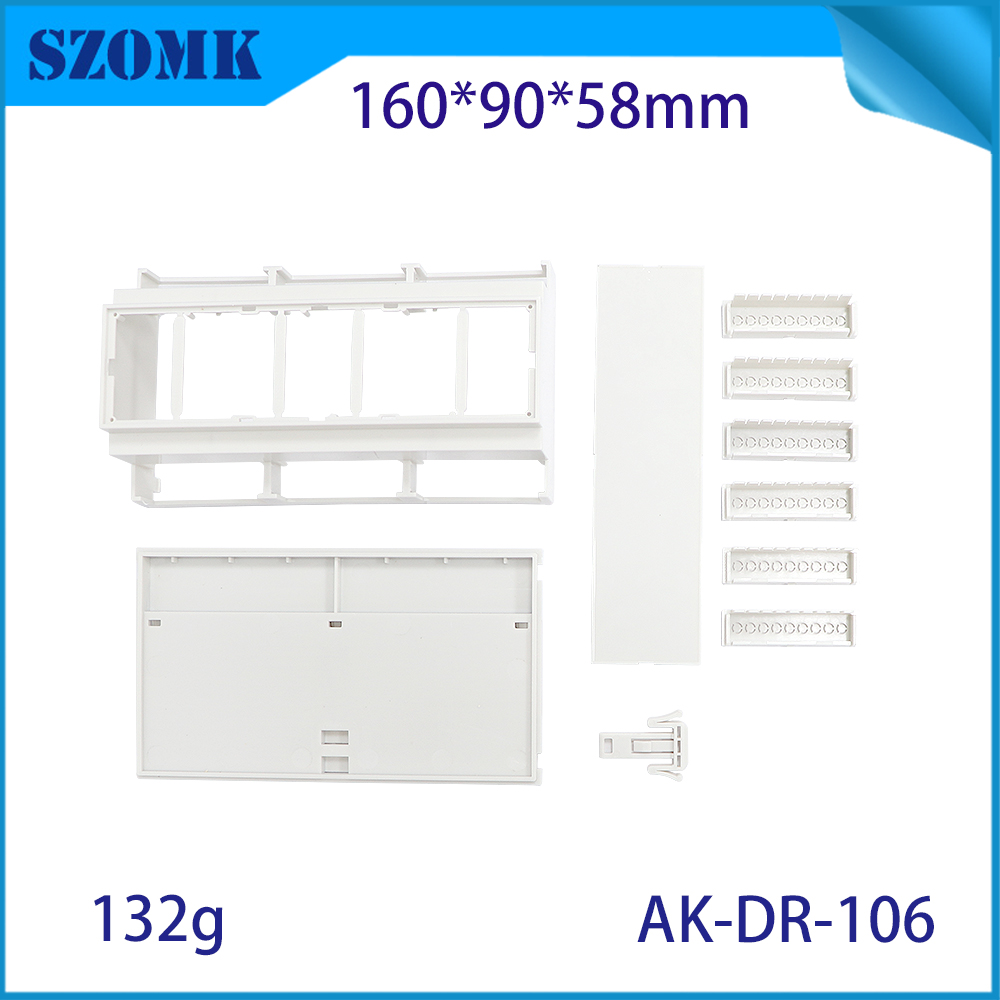

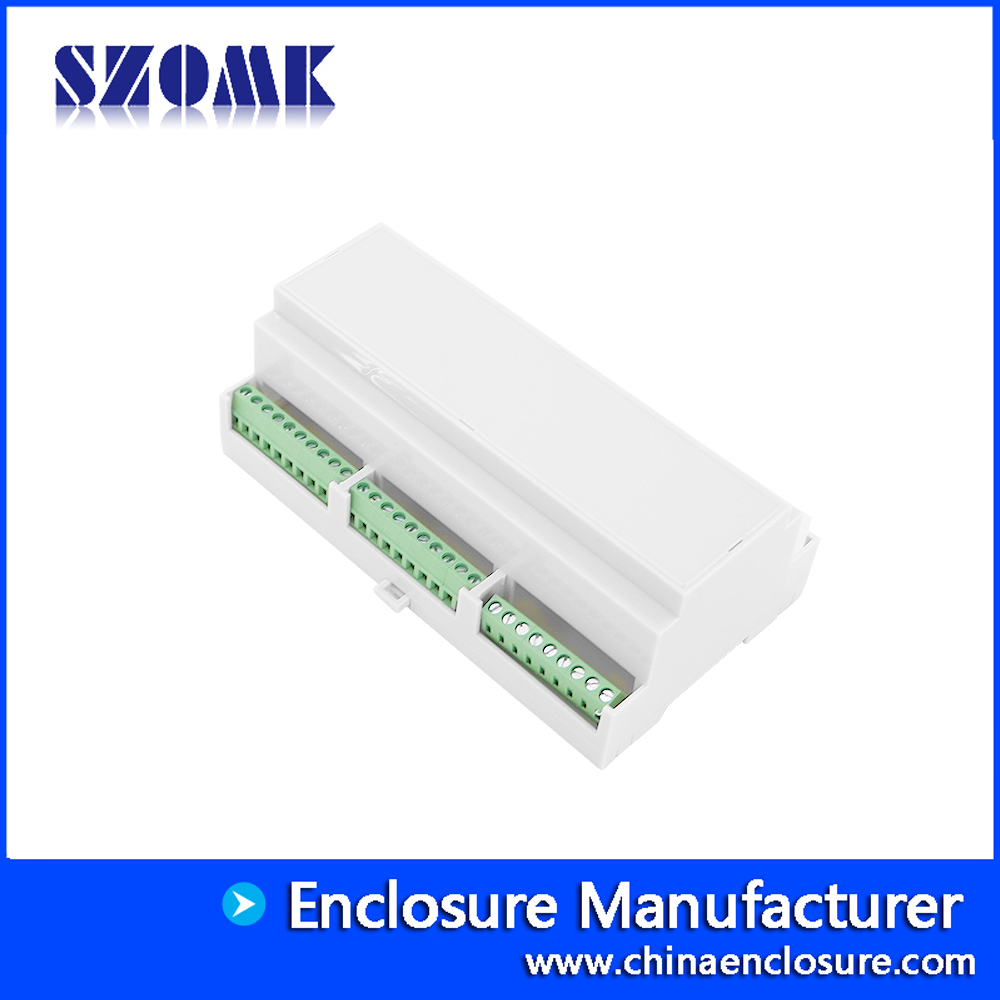

160*90*58MM AK-DR-106 Din Rail Connectors Pc Din Rail Mount Screw Module Adapter Plastic Din Rail Terminal Block Box
- Model Number:AK-DR-106
- Size：160*90*58MM
- Material:PC
- Product Name:DIN rail enclosures
- Uses：Usage with TH35
- Features：①PC material terminal blocks in different versions
- ②Suitable for mounting on din rails to en 60715 th35 or directly on a wall
- ③Closed housing for front connectors, d-sub plugs, etc
- ④Modular din rail enclosures and open pcb holders
- ⑤For pcb terminal blocks, plugs and front connectors
- Application:Especially for automatic timers, sensors, relays signal distribution, lighting controls etc.
What can SZOMK do for you?
Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)
6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.

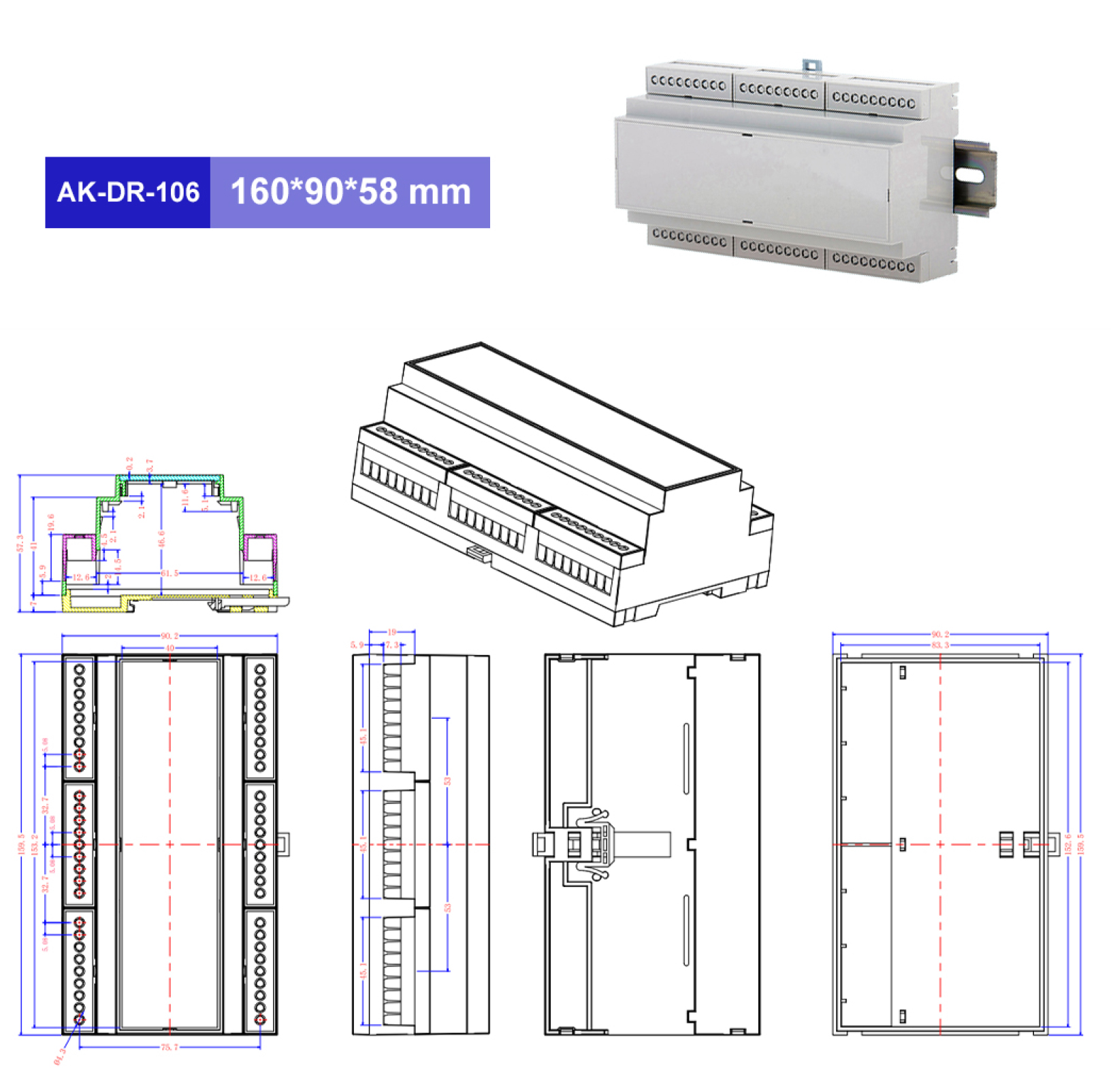

Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
160*90*58MM AK-DR-106 Din Rail Connectors Pc Din Rail Mount Screw Module Adapter Plastic Din Rail Terminal Block Box
| Product parameters | |
| Product Name | Modular DIN rail enclosures |

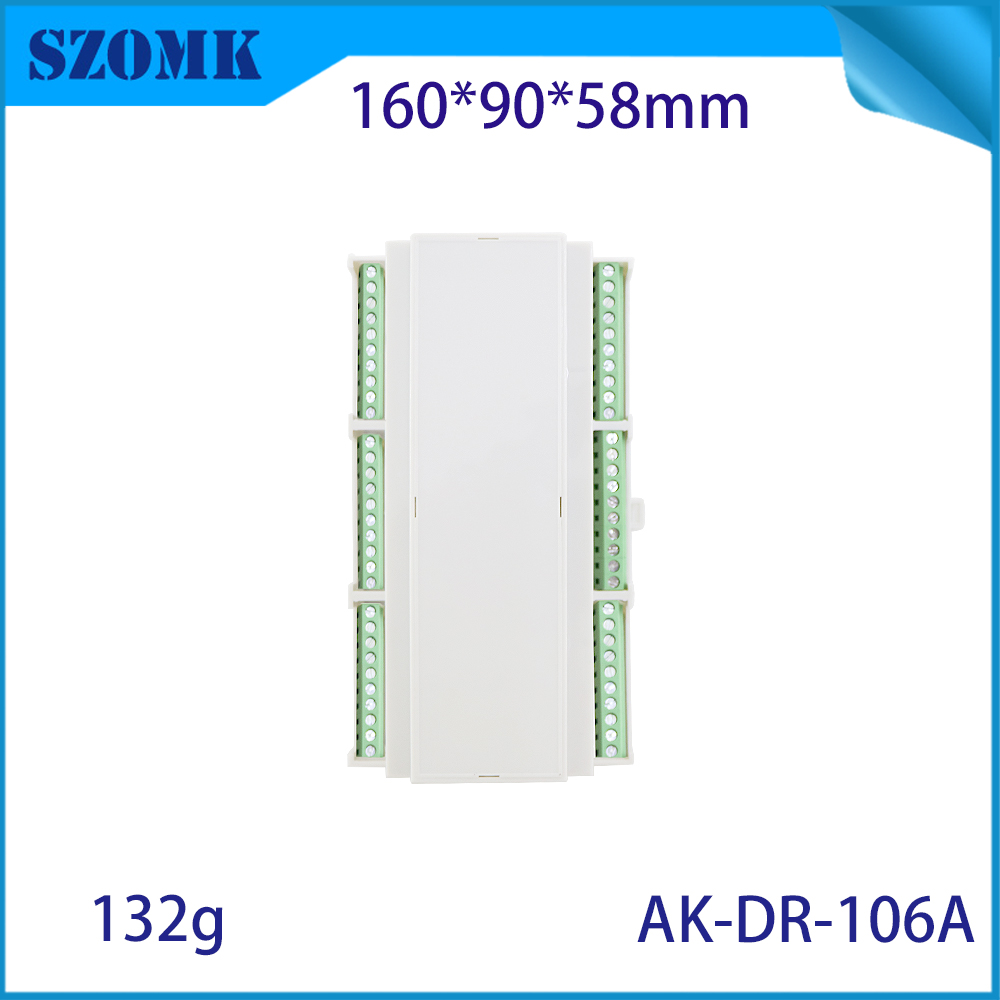

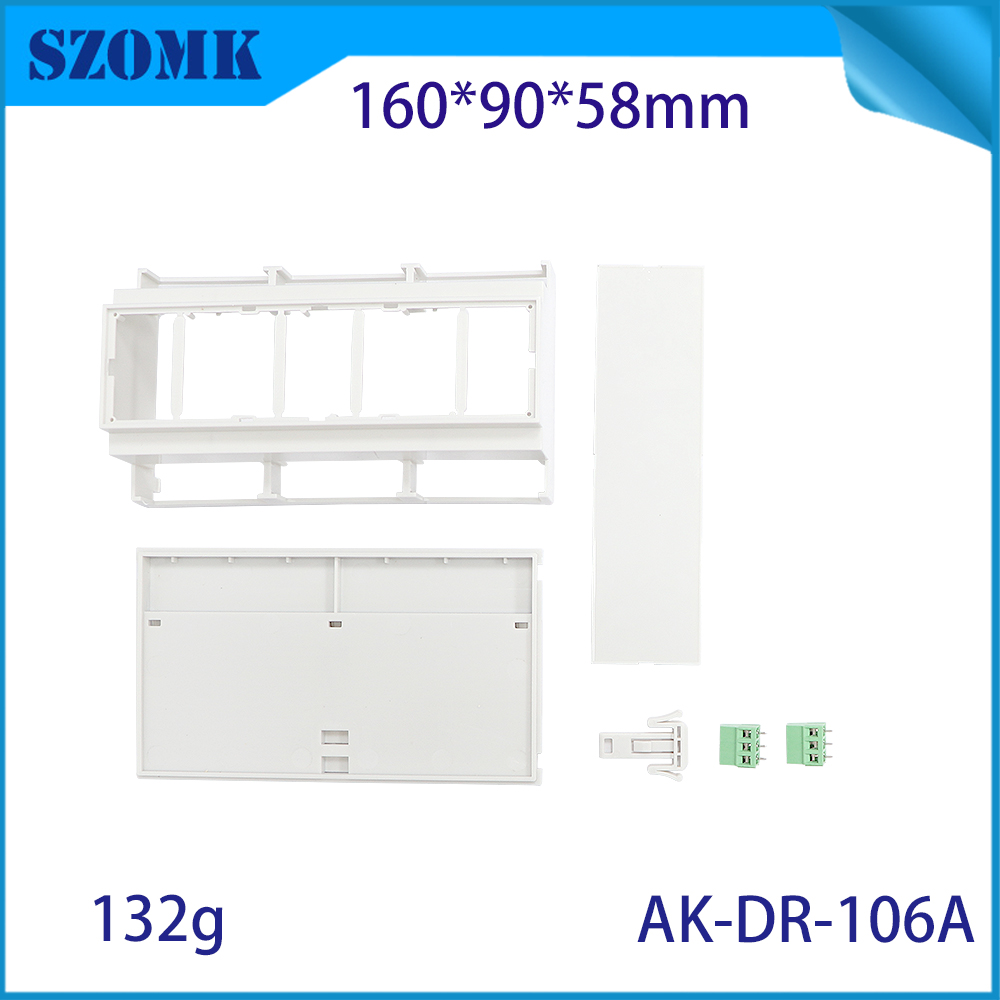

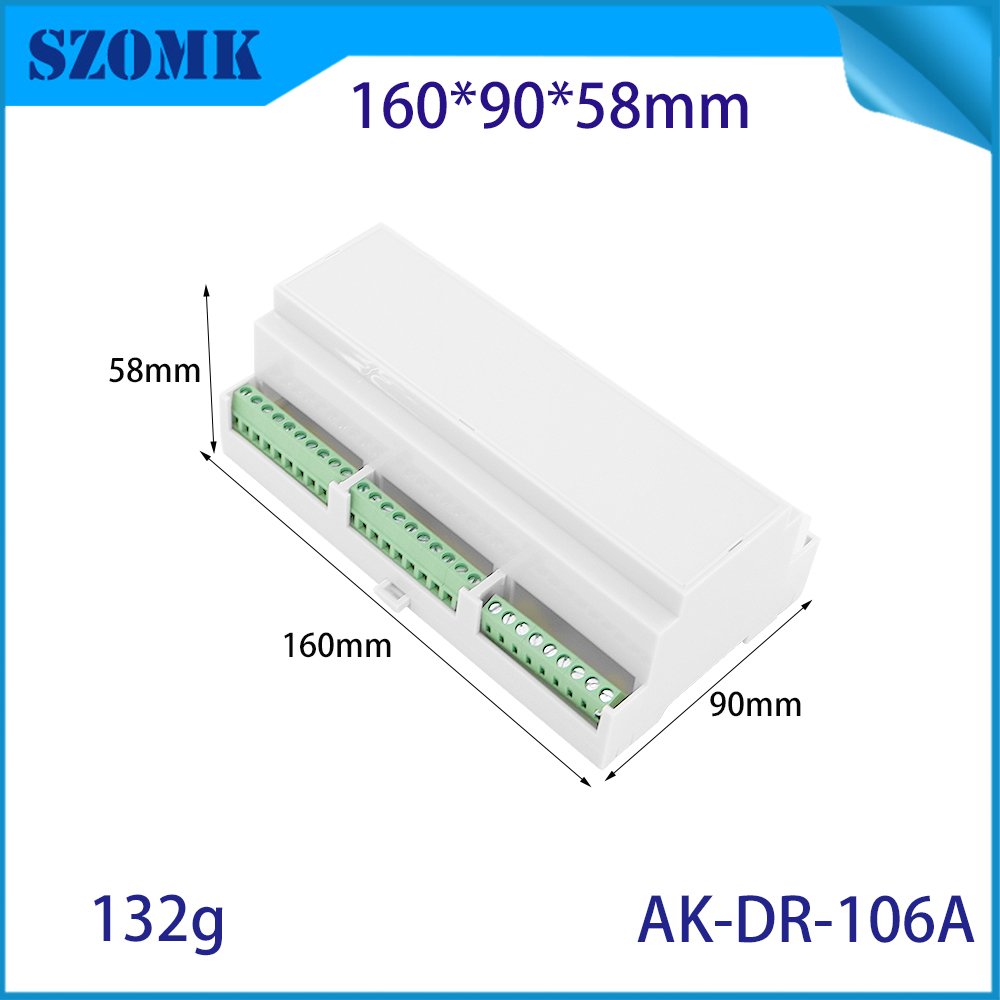

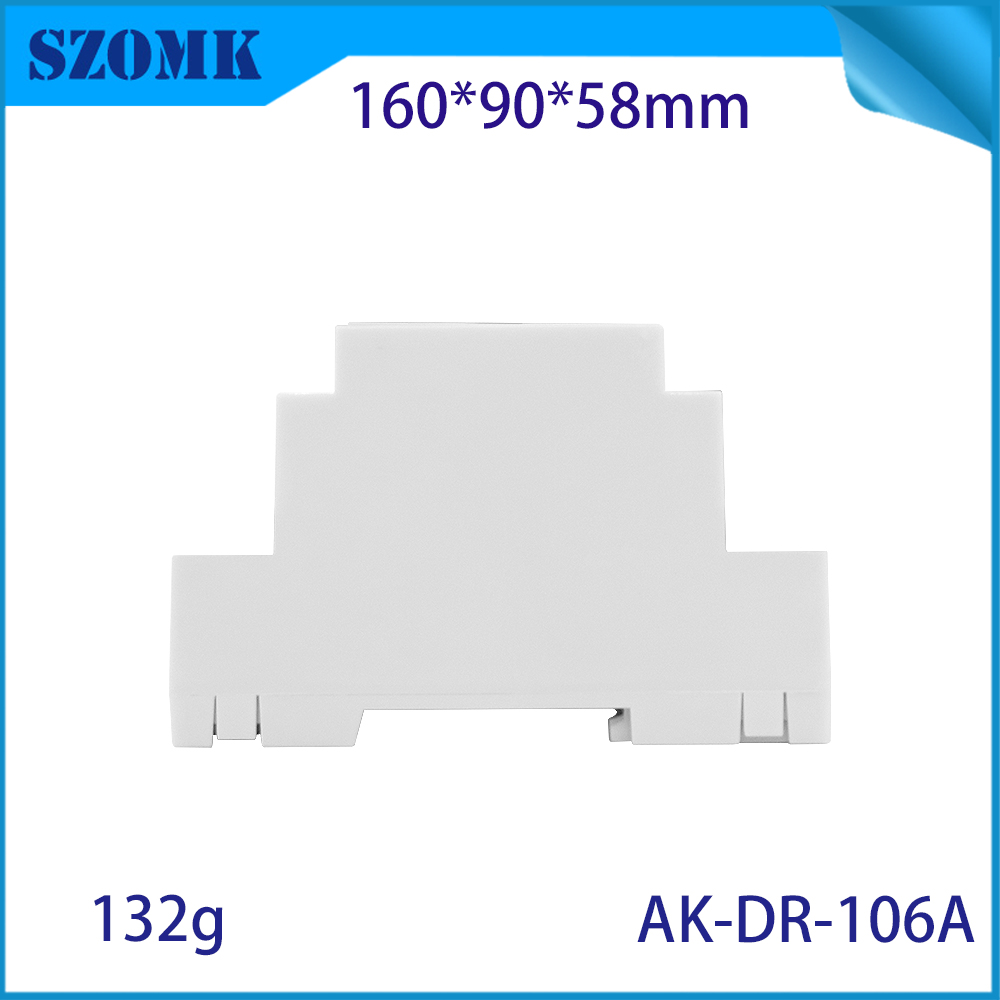

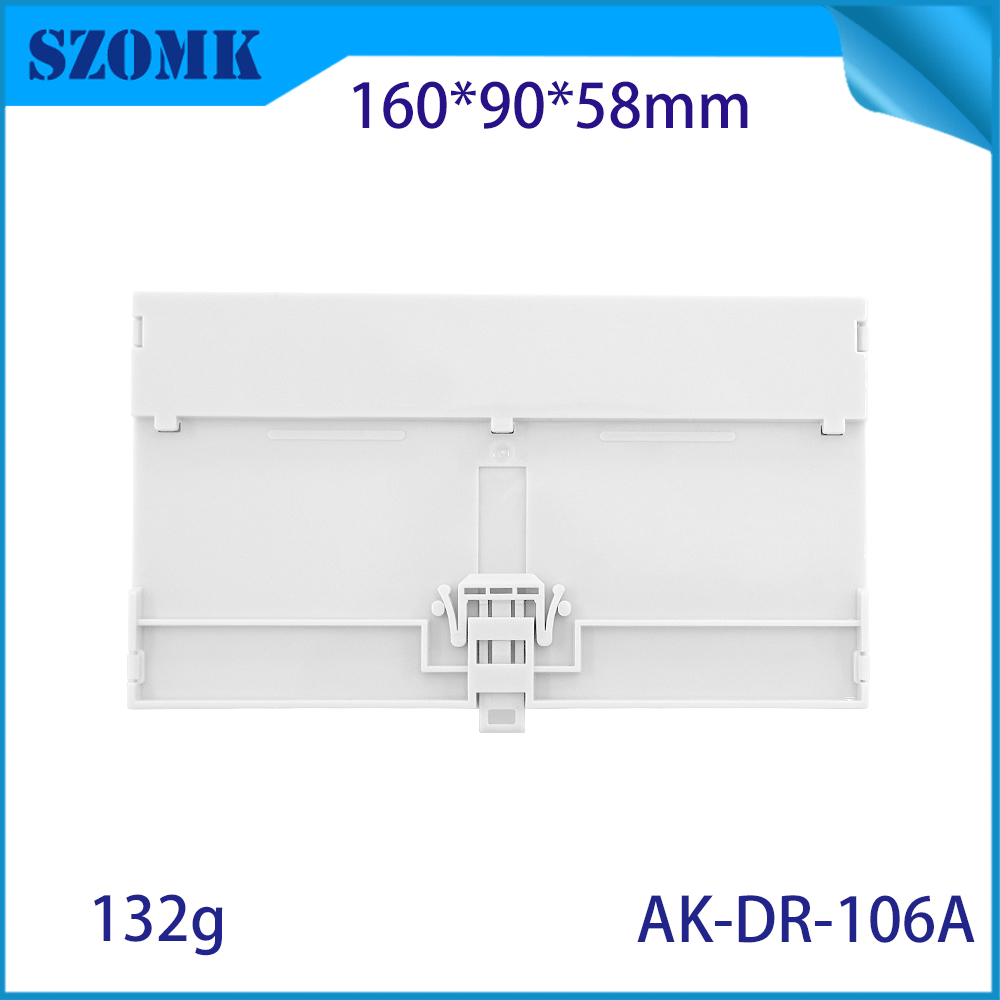

| Model Number | AK-DR-106(without terminal）AK-DR-106A(with terminals,54 terminals） |
| Protection Level | IP54 |
| Type | Junction Box |

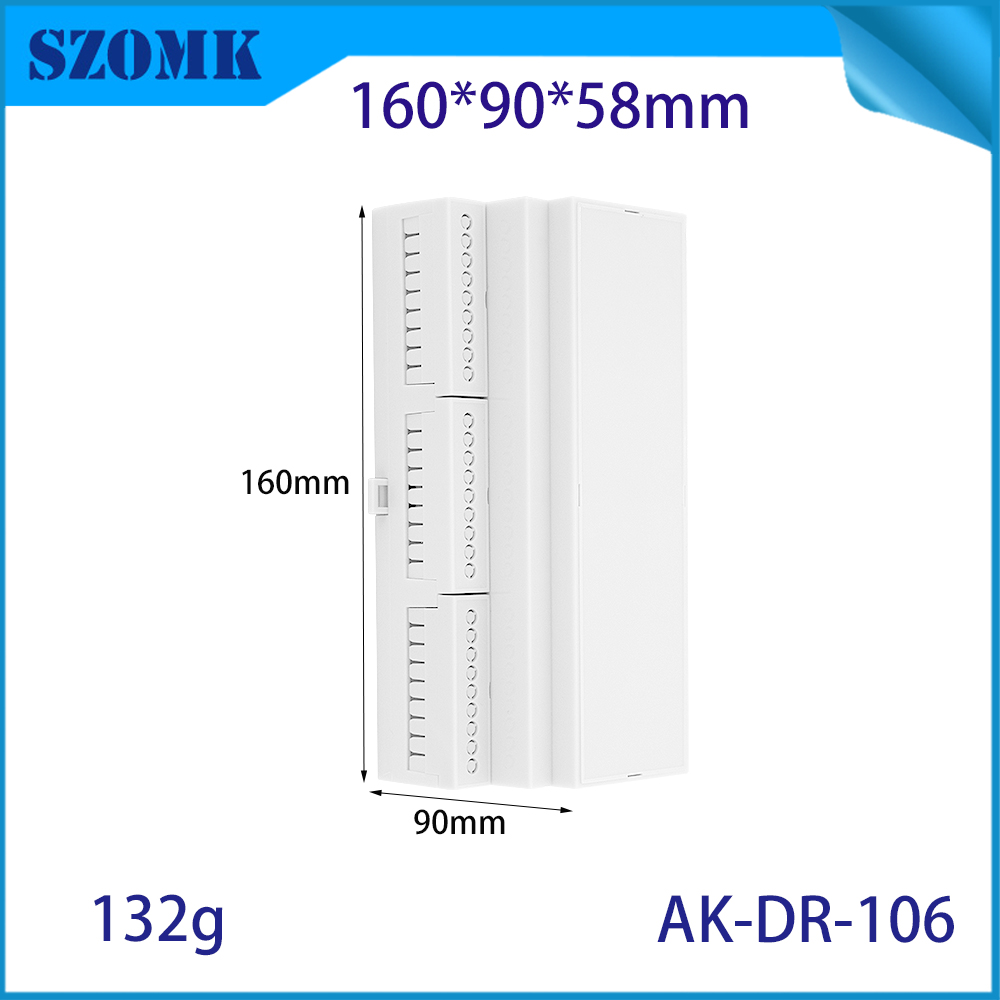

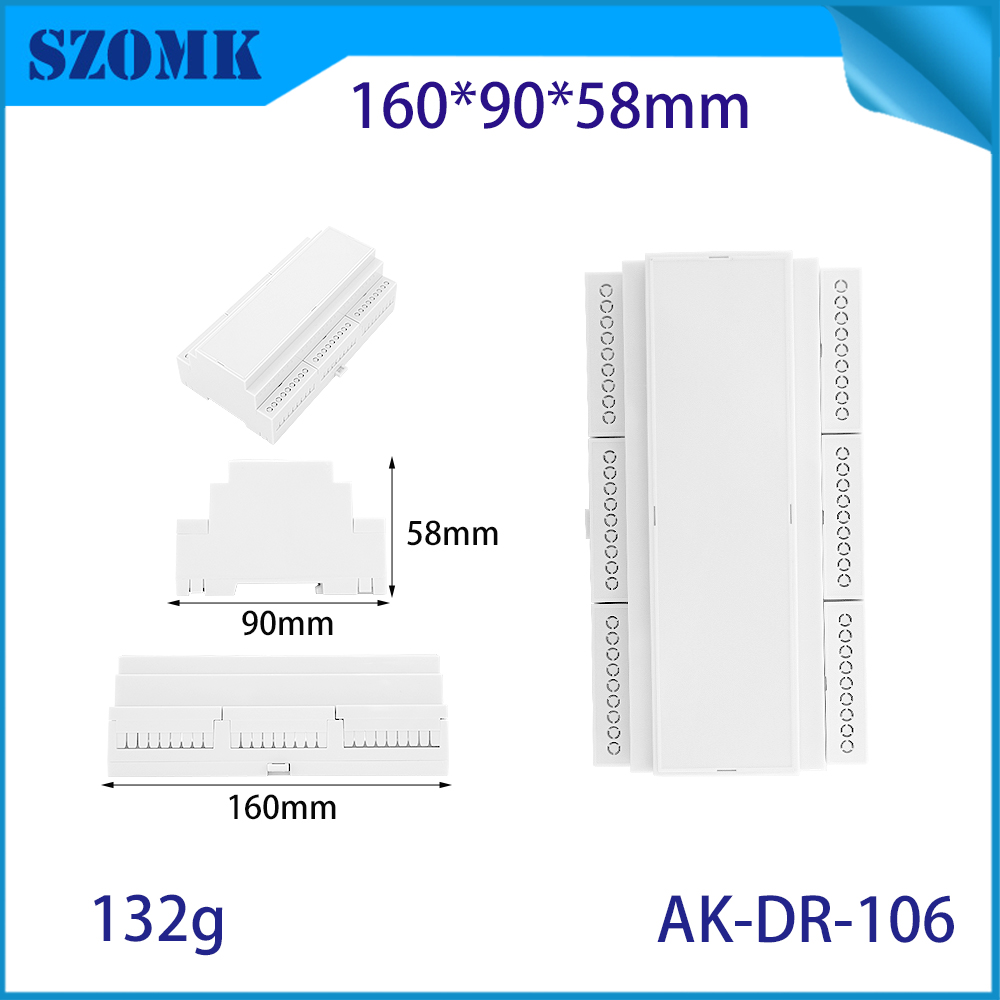

| External Size | 160*90*58MM |
| Material | PC |
| Uses | Usage with TH35 |
| Color | Light gray |
| Support | PCB holder for DIN rail mounting; modular design for individual component mounting |
| Usage | For PCB terminal blocks, plug headers and front connectors |
| Feature | Outstanding material properties for tough conditions, with high temperature stability |
| Advantage | easy and fast assembly with snap-in installation of the enclosure parts |
| Application | Especially for automatic timers, sensors, relays signal distribution, lighting controls etc. |
| Custom Service | Cutout,Silkscreen Printing, Pad PrintingLaser Engraving, UV printing |
Common Applications
These highly durable ABS plastic enclosures are suitable for mounting to a DIN rail in a wide range of applications such as: •Power breakers
• HVAC
• Network interfaces
• IoT devices
• Condition monitors
• Bus systems
Features and Benefits
• Flame retardant ABS plastic
• Durable, airtight and chemical resistant casing to protect electrical parts and components
• Freedom of choice with the internal layout of PCB’s, wires and more
• Neutral light grey colour • Supplied with a hook, blanking and four screws
• Quick and easy to install
• Compatible with a wide range of applications and environments
What is a din rail enclosure?
Din rail instrument enclosures provide perfect protection from dust and moisture of internal electrical parts and components that are required to be mounted to a din rail. This form of enclosure is ideal for when space is limited or restricted. An enclosure mounted to a din rail allows PCB (printed circuit boards) and other standard electrical components to be safely installed and protected at all times, reducing the risk of damage and deterioration. enclosures for din rails are also compatible with a range of accessories such as panel blanking, hooks and screws for easy installation.
| Plastic Din rail Enclosures | |||||||
| Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm |
| AK-DR-01 | 88*37*59 | AK-DR-54 | 112*72*72 | AK-DR-103 | 53.3x90.2x57.5 | AK-P-25A | 200*110*60 |
| AK-DR-01C | 88*37*59 | AK-DR-55 | 90*48*76 | AK-DR-103A | 53.3x90.2x57.5 | AK-P-26 | 300*110*60 |
| AK-DR-02 | 88*53*59 | AK-DR-56 | 193*112*56 | AK-DR-104 | 71x90.2x57.5 | AK-P-26A | 300*110*60 |
| AK-DR-02A | 88*53*59 | AK-DR-57 | 150*112*56 | AK-DR-104A | 71x90.2x57.5 | AK-P-27 | 180*100*53 |
| AK-DR-03 | 88*72*59 | AK-DR-59 | 112*66*56 | AK-DR-105 | 83.6x90.2x57.5 | AK-P-28 | 80*62*29 |
| AK-DR-03A | 88*72*59 | AK-DR-60 | 120*110*51 | AK-DR-105A | 83.6x90.2x57.5 | AK-P-29 | 126*79*30 |
| AK-DR-04 | 107*87*59 | AK-DR-61 | 88*72*63 | AK-DR-106 | 159.5x90.2x57.5 | AK-P-30 | 155*110*60 |
| AK-DR-04C | 107*87*59 | AK-DR-62 | 75*55*120 | AK-DR-106A | 159.5x90.2x57.5 | AK-P-30a | 155*110*60 |
| AK-DR-05 | 158*88*59 | AK-DR-63 | 71*90*62 | AK-DR-107 | 89.58*35.65*60.8 | AK-P-31 | 140*135*85 |
| AK-DR-05a | 158*88*59 | AK-DR-64 | 95*36*46 | AK-DR-108 | 95*80*56 | AK-P-32 | 124*70*89 |
| AK-DR-06 | 88*55*44 | AK-DR-65 | 131*76*58 | AK-DR-108-1 | 95*80*56 | AK-P-33 | 141*88*62 |
| AK-DR-07 | 65*45*28 | AK-DR-65 A1 | 131*76*58 | AK-DR-109 | 48*48*71 | AK-P-34 | 179*108*82 |
| AK-DR-08 | 102*70*25 | AK-DR-65 A2 | 131*76*58 | AK-P-01 | 115*90*40 | AK-P-35 | 180*98*52 |
| AK-DR-09 | 102*70*25 | AK-DR-66 | 84*36*70 | AK-P-01A | 115*90*40 | AK-P-36 | 125*90*40 |
| AK-DR-10 | 100*70*25 | AK-DR-67 | 88*107*59 | AK-P-02 | 115*90*40 | AK-P-37 | 125*90*72 |
| AK-DR-11 | 102*80*22 | AK-DR-68 | 88*107*59 | AK-P-02A | 115*90*40 | AK-P-38 | 150*90*40 |
| AK-DR-12 | 100*70*25 | AK-DR-69 | 131*95*55 | AK-P-03 | 115*90*40 | AK-P-39 | 75*90*40 |
| AK-DR-13 | 88*70*51 | AK-DR-70 | 88*72*59 | AK-P-03A | 115*90*40 | AK-P-40 | 95*90*40 |
| AK-DR-14 | 85*70*62 | AK-DR-71 | 88*72*44 | AK-P-04 | 115*90*72 | AK-P-41 | 65*54*18 |
| AK-DR-16 | 48*48*85 | AK-DR-72 | 72*90*63 | AK-P-04A | 115*90*72 | AK-P-42 | 120*82*43 |
| AK-DR-17 | 125*110*65 | AK-DR-72 A1 | 72*90*63 | AK-P-05 | 115*90*72 | AK-P-43 | 250X110X60 |
| AK-DR-18 | 110*65*50 | AK-DR-73 | 92*70*65 | AK-P-05A | 115*90*73 | AK-P-44 | 175x90x40 |
| AK-DR-19 | 200*90*70 | AK-DR-74 | 145*90*63 | AK-P-06 | 145*90*40 | AK-P-45 | 175x90x40 |
| AK-DR-20 | 110*75*65 | AK-DR-75 | 210*90*63 | AK-P-06A | 145*90*40 | AK-P-46 | 200*120*60 |
| AK-DR-21 | 115*90*131 | AK-DR-76 | 162*90*63 | AK-P-06B | 145*90*40 | AK-P-47 | 180X100X77 |
| AK-DR-22 | 115*90*131 | AK-DR-77 | 180X88X59 | AK-P-06C | 145*90*40 | AK-P-48 | 195*80*62 |
| AK-DR-23 | 80*70*26 | AK-DR-78 | 88x18x59 | AK-P-07 | 145*90*40 | AK-P-49 | 93*90*40 |
| AK-DR-24 | 98*98*38 | AK-DR-78A | 88x18x59 | AK-P-07-1 | 145*90*40 | AK-P-50A | 82*54*32 |
| AK-DR-25 | 145*130*90 | AK-DR-79 | 89*36*44 | AK-P-07A | 145*90*40 | AK-P-50B | 82*54*32 |
| AK-DR-26 | 106*90*58 | AK-DR-80 | 88*72*59 | AK-P-07A-1 | 145*90*40 | AK-P-50C | 82*54*32 |
| AK-DR-27 | 75*71*43 | AK-DR-81 | 120*95*56 | AK-P-08 | 145*90*40 | AK-P-51 | 200*110*110 |
| AK-DR-28 | 75*71*54 | AK-DR-82 | 48*48*80 | AK-P-08A | 145*90*40 | AK-P-52 | 120*100*48 |
| AK-DR-29 | 110*100*17 | AK-DR-83 | 112*66*62 | AK-P-09 | 145*90*72 | AK-P-53 | 90*71*40 |
| AK-DR-30 | 110*100*46 | AK-DR-83 | 112*66*62 | AK-P-09A | 145*90*72 | AK-P-53A | 90*71*40 |
| AK-DR-31 | 93*72*59 | AK-DR-84 | 179*110*50 | AK-P-10 | 145*90*72 | AK-P-54 | 90*90*40 |
| AK-DR-32 | 80*98*40 | AK-DR-84 | 179*110*50 | AK-P-10A | 145*90*72 | AK-P-54A | 90*90*40 |
| AK-DR-33a | 95*41*25 | AK-DR-85 | 223*113*50 | AK-P-11 | 179*100*48 | AK-P-55 | 90*90*40 |
| AK-DR-33b | 95*25*47 | AK-DR-85 | 223*113*50 | AK-P-12 | 155*110*60 | AK-P-55A | 90*90*40 |
| AK-DR-34 | 93*61*45 | AK-DR-86 | 105*75*22 | AK-P-12A | 155*110*60 | AK-P-56 | 82*54*32 |
| AK-DR-35 | 95*41*25 | AK-DR-87 | 105*75*45 | AK-P-13 | 155*110*60 | AK-P-57 | 82*54*33 |
| AK-DR-36 | 160*95*55 | AK-DR-88 | 88*24*59 | AK-P-13 | 155*110*60 | AK-P-58 | 155*101*75 |
| AK-DR-36a | 160*95*55 | AK-DR-89 | 97*71*34 | AK-P-13A | 155*110*60 | AK-P-59 | 137*97*64 |
| AK-DR-37 | 114*95*23 | AK-DR-90 | 150*108 | AK-P-14 | 179*100*77 | AK-P-60 | 105*55*39 |
| AK-DR-38 | 90*62*35 | AK-DR-91 | 150*108 | AK-P-15 | 155*110*110 | AK80001 | 87*60*35 |
| AK-DR-39 | 87*60*35 | AK-DR-92 | 100*112*22.5 | AK-P-16 | 155*110*110 | AK80002 | 86*60*52 |
| AK-DR-40 | 87*60*52 | AK-DR-93 | 100*112*12.5 | AK-P-16A | 155*110*110 | AK80003 | 72*87*60 |
| AK-DR-41 | 87*60*71 | AK-DR-94 | 100*112*22.5 | AK-P-17 | 80*50*31 | AK80004 | 105*87*59 |
| AK-DR-42 | 105*87*60 | AK-DR-95 | 100*112*45 | AK-P-18 | 80*70*61 | AK80005 A1 | 158*87*60 |
| AK-DR-43 | 158*87*60 | AK-DR-96 | 100*112*18 | AK-P-19 | 120*80*60 | AK80005 A2 | 158*87*60 |
| AK-DR-44 | 110*71*75 | AK-DR-97 | 88*36*41 | AK-P-20 | 168*115*40 | AK80006 | 115*90*41 |
| AK-DR-45 | 132*71*75 | AK-DR-98 | 88*72*71 | AK-P-21 | 168*115*75 | AK80007 | 145*90*40 |
| AK-DR-46 | 154*71*75 | AK-DR-99 | 85*80*25 | AK-P-22 | 250*110*65 | AK80008 | 174*139*57 |
| AK-DR-48 | 160*80*75 | AK-DR-100 | 85*80*40 | AK-P-22A | 250*110*65 | AK80009 | 108*112*75 |
| AK-DR-49 | 115*100*22 | AK-DR-101 | 18.1x90.2x57.5 | AK-P-23 | 300*110*110 | AK80010 | 108*112*56 |
| AK-DR-50 | 99*80*25 | AK-DR-101A | 18.1x90.2x57.5 | AK-P-23A | 300*110*110 | AK80011 | 108*112*62 |
| AK-DR-52 | 112*95*48 | AK-DR-102 | 36.3x90.2x57.5 | AK-P-24 | 145*90*72 | Updating | |
| AK-DR-53 | 86*48*48 | AK-DR-102A | 36.3x90.2x57.5 | AK-P-25 | 200*110*60 | ||
