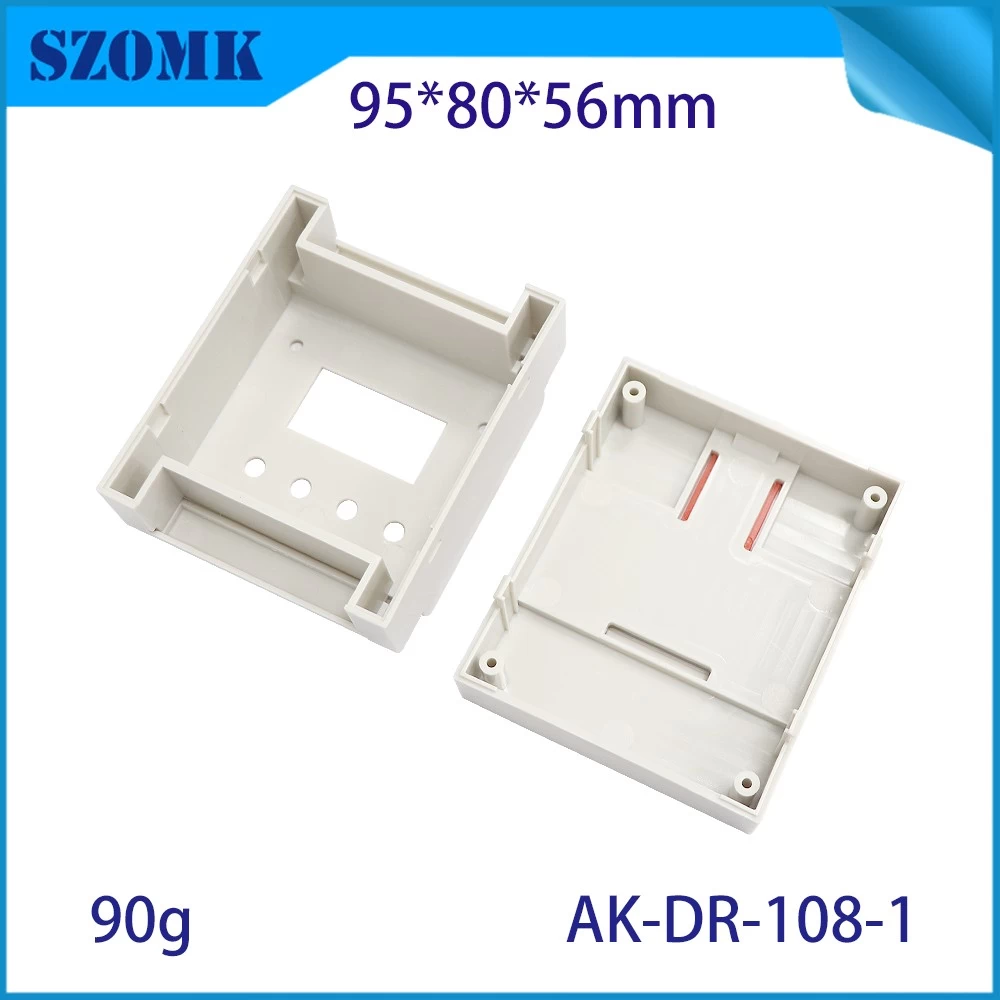

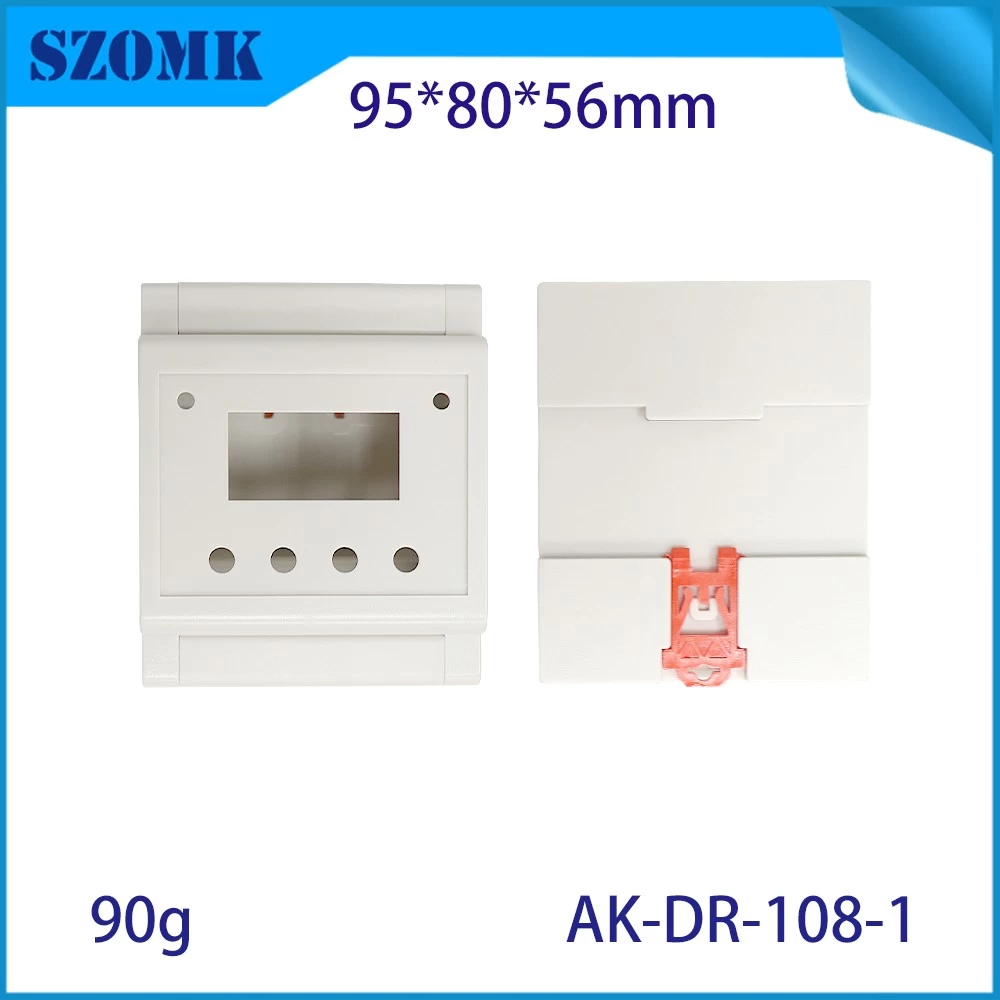

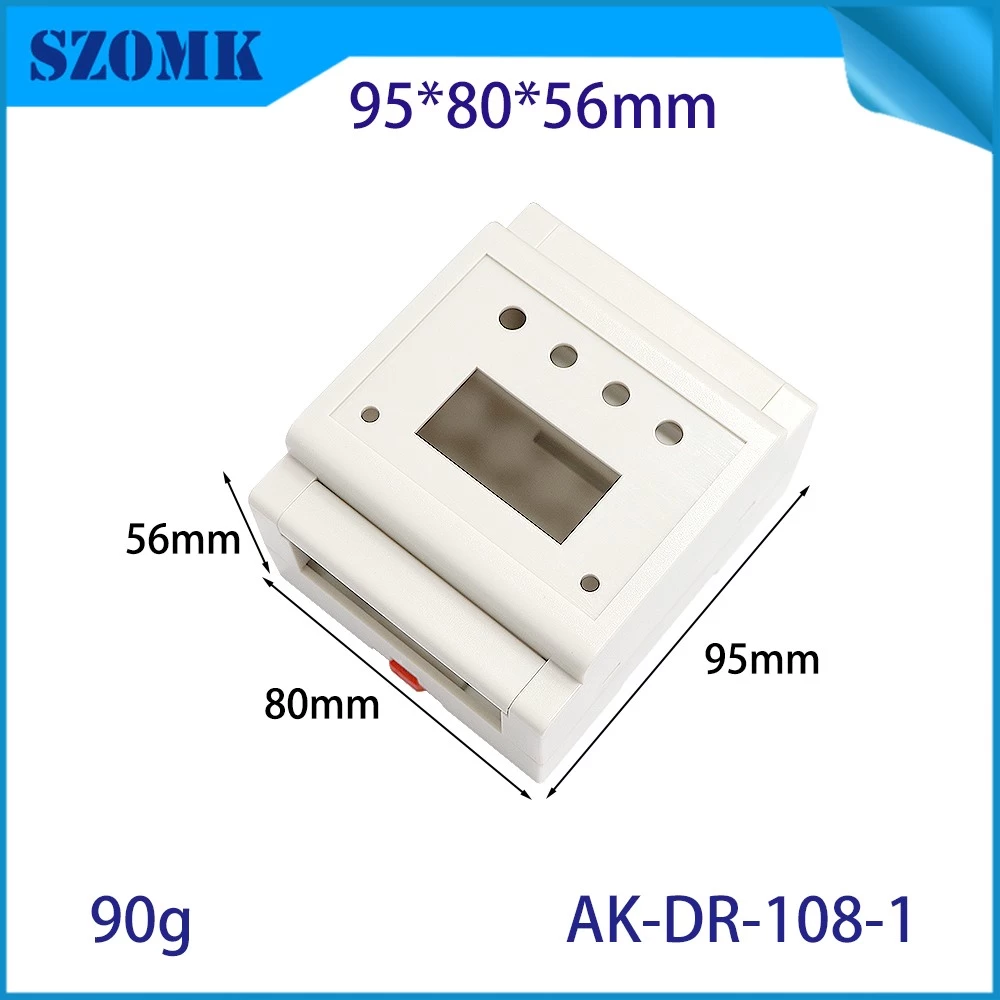

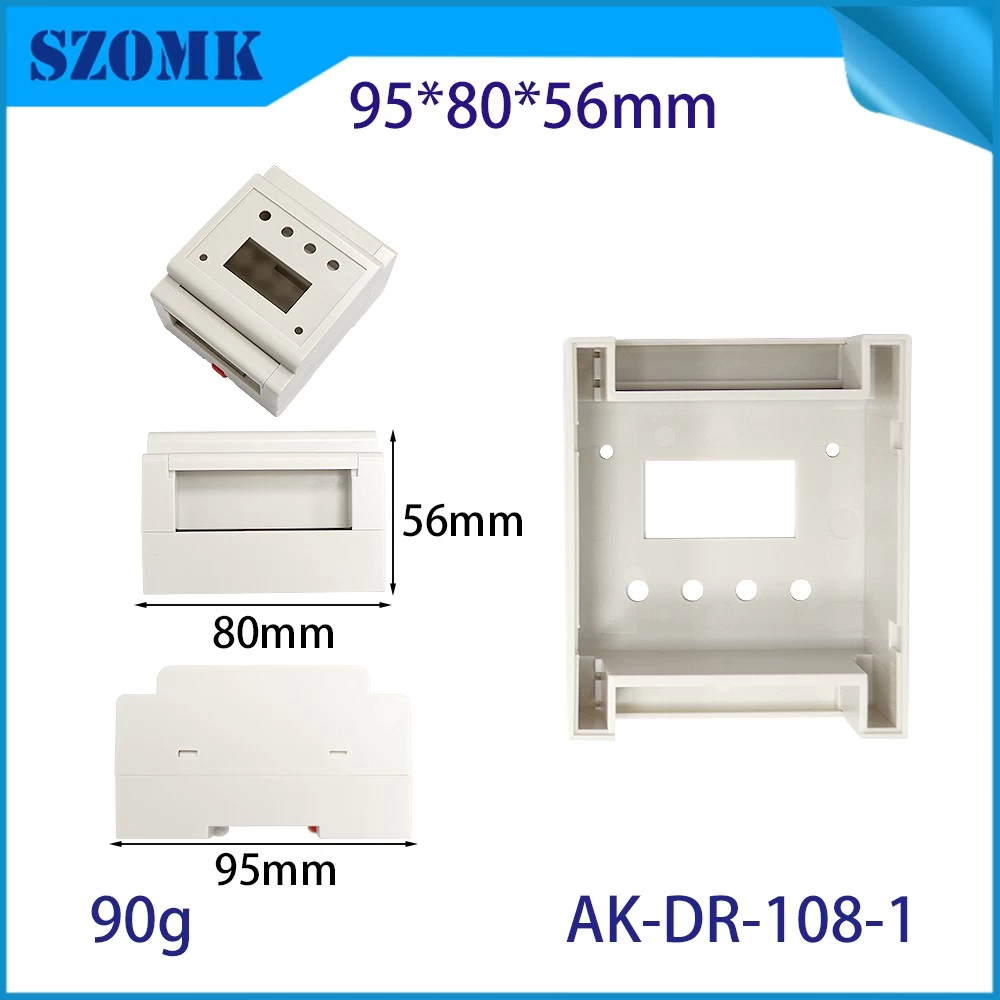

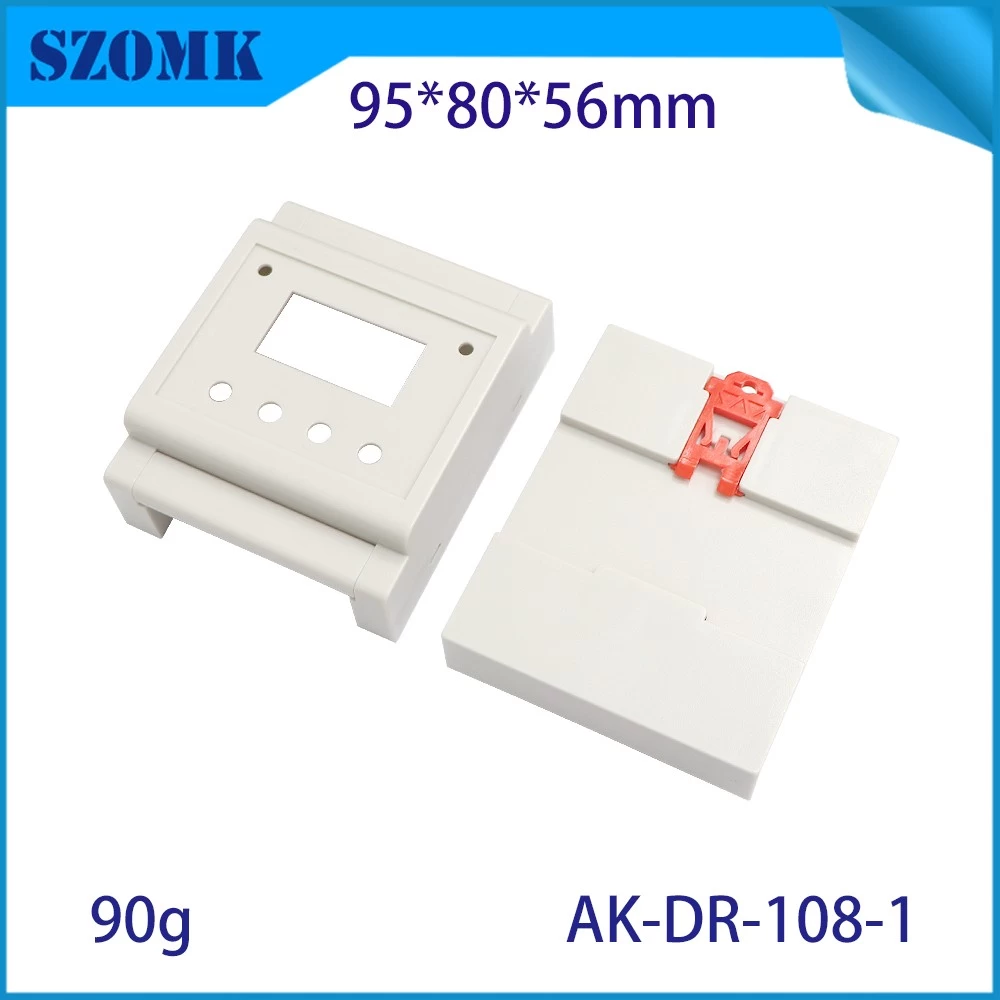

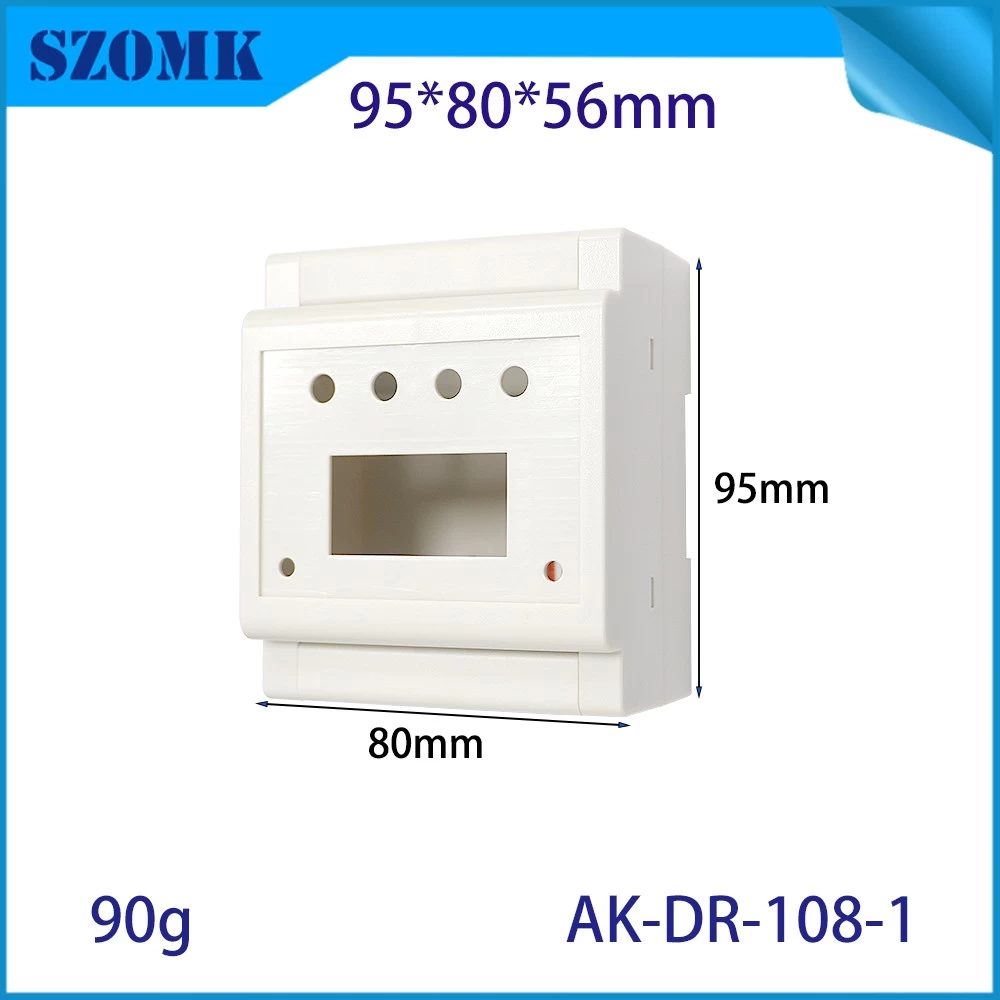

95*80*56MM AK-DR-108-1 Din Rail Mounting Bracket Plc Controller Switch Box Din Rail Case
- Model Number:AK-DR-108-1
- Size：95*80*56MM
- Material: ABS
- Product Name:Din Rail Enclosure Plc
- Features：Wall mounted wireless gateway box,ethernet RG45 to 485 repeater enclosure
- Application:Install Circuit Board
What can SZOMK do for you?
Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)
6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.
Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
95*80*56MM AK-DR-108 Electricity Plc Control Box Plastic Abs Din Rail Enclosure
|
Product Name |
Din rail enclosure plc |
|
Brand Name |
SZOMK |
|
Model Number |
AK-DR-108-1 |
|
Protection Level |
IP54 |
|
Type |
Junction Box |
|
External Size |
95*80*56MM |
|
Material |
ABS |
|
Application |
Install Circuit Board |
|
Feature |
Wall mounted Wireless gateway housing,din rail controller enclosure,Ethernet RG45 to 485 repeater box |
|
Package |
top case + bottom case + connectors |
|
Operating Temperature |
-30° - max 80° |
|
Surface treatment |
Mill Finish |
|
Custom Service |
Silkscreen.cutout.label.laser engrave,color and so on |
Common Applications
These highly durable ABS plastic enclosures are suitable for mounting to a DIN rail in a wide range of applications such as: •Power breakers
• HVAC
• Network interfaces
• IoT devices
• Condition monitors
• Bus systems
Features and Benefits
• Flame retardant ABS plastic
• Durable, airtight and chemical resistant casing to protect electrical parts and components
• Freedom of choice with the internal layout of PCB’s, wires and more
• Neutral light grey colour • Supplied with a hook, blanking and four screws
• Quick and easy to install
• Compatible with a wide range of applications and environments
What is a din rail enclosure?
Din rail instrument enclosures provide perfect protection from dust and moisture of internal electrical parts and components that are required to be mounted to a din rail. This form of enclosure is ideal for when space is limited or restricted. An enclosure mounted to a din rail allows PCB (printed circuit boards) and other standard electrical components to be safely installed and protected at all times, reducing the risk of damage and deterioration. enclosures for din rails are also compatible with a range of accessories such as panel blanking, hooks and screws for easy installation.
| Plastic Din rail Enclosures | |||||||
| Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm |
| AK-DR-01 | 88*37*59 | AK-DR-54 | 112*72*72 | AK-DR-103 | 53.3x90.2x57.5 | AK-P-25A | 200*110*60 |
| AK-DR-01C | 88*37*59 | AK-DR-55 | 90*48*76 | AK-DR-103A | 53.3x90.2x57.5 | AK-P-26 | 300*110*60 |
| AK-DR-02 | 88*53*59 | AK-DR-56 | 193*112*56 | AK-DR-104 | 71x90.2x57.5 | AK-P-26A | 300*110*60 |
| AK-DR-02A | 88*53*59 | AK-DR-57 | 150*112*56 | AK-DR-104A | 71x90.2x57.5 | AK-P-27 | 180*100*53 |
| AK-DR-03 | 88*72*59 | AK-DR-59 | 112*66*56 | AK-DR-105 | 83.6x90.2x57.5 | AK-P-28 | 80*62*29 |
| AK-DR-03A | 88*72*59 | AK-DR-60 | 120*110*51 | AK-DR-105A | 83.6x90.2x57.5 | AK-P-29 | 126*79*30 |
| AK-DR-04 | 107*87*59 | AK-DR-61 | 88*72*63 | AK-DR-106 | 159.5x90.2x57.5 | AK-P-30 | 155*110*60 |
| AK-DR-04C | 107*87*59 | AK-DR-62 | 75*55*120 | AK-DR-106A | 159.5x90.2x57.5 | AK-P-30a | 155*110*60 |
| AK-DR-05 | 158*88*59 | AK-DR-63 | 71*90*62 | AK-DR-107 | 89.58*35.65*60.8 | AK-P-31 | 140*135*85 |
| AK-DR-05a | 158*88*59 | AK-DR-64 | 95*36*46 | AK-DR-108 | 95*80*56 | AK-P-32 | 124*70*89 |
| AK-DR-06 | 88*55*44 | AK-DR-65 | 131*76*58 | AK-DR-108-1 | 95*80*56 | AK-P-33 | 141*88*62 |
| AK-DR-07 | 65*45*28 | AK-DR-65 A1 | 131*76*58 | AK-DR-109 | 48*48*71 | AK-P-34 | 179*108*82 |
| AK-DR-08 | 102*70*25 | AK-DR-65 A2 | 131*76*58 | AK-P-01 | 115*90*40 | AK-P-35 | 180*98*52 |
| AK-DR-09 | 102*70*25 | AK-DR-66 | 84*36*70 | AK-P-01A | 115*90*40 | AK-P-36 | 125*90*40 |
| AK-DR-10 | 100*70*25 | AK-DR-67 | 88*107*59 | AK-P-02 | 115*90*40 | AK-P-37 | 125*90*72 |
| AK-DR-11 | 102*80*22 | AK-DR-68 | 88*107*59 | AK-P-02A | 115*90*40 | AK-P-38 | 150*90*40 |
| AK-DR-12 | 100*70*25 | AK-DR-69 | 131*95*55 | AK-P-03 | 115*90*40 | AK-P-39 | 75*90*40 |
| AK-DR-13 | 88*70*51 | AK-DR-70 | 88*72*59 | AK-P-03A | 115*90*40 | AK-P-40 | 95*90*40 |
| AK-DR-14 | 85*70*62 | AK-DR-71 | 88*72*44 | AK-P-04 | 115*90*72 | AK-P-41 | 65*54*18 |
| AK-DR-16 | 48*48*85 | AK-DR-72 | 72*90*63 | AK-P-04A | 115*90*72 | AK-P-42 | 120*82*43 |
| AK-DR-17 | 125*110*65 | AK-DR-72 A1 | 72*90*63 | AK-P-05 | 115*90*72 | AK-P-43 | 250X110X60 |
| AK-DR-18 | 110*65*50 | AK-DR-73 | 92*70*65 | AK-P-05A | 115*90*73 | AK-P-44 | 175x90x40 |
| AK-DR-19 | 200*90*70 | AK-DR-74 | 145*90*63 | AK-P-06 | 145*90*40 | AK-P-45 | 175x90x40 |
| AK-DR-20 | 110*75*65 | AK-DR-75 | 210*90*63 | AK-P-06A | 145*90*40 | AK-P-46 | 200*120*60 |
| AK-DR-21 | 115*90*131 | AK-DR-76 | 162*90*63 | AK-P-06B | 145*90*40 | AK-P-47 | 180X100X77 |
| AK-DR-22 | 115*90*131 | AK-DR-77 | 180X88X59 | AK-P-06C | 145*90*40 | AK-P-48 | 195*80*62 |
| AK-DR-23 | 80*70*26 | AK-DR-78 | 88x18x59 | AK-P-07 | 145*90*40 | AK-P-49 | 93*90*40 |
| AK-DR-24 | 98*98*38 | AK-DR-78A | 88x18x59 | AK-P-07-1 | 145*90*40 | AK-P-50A | 82*54*32 |
| AK-DR-25 | 145*130*90 | AK-DR-79 | 89*36*44 | AK-P-07A | 145*90*40 | AK-P-50B | 82*54*32 |
| AK-DR-26 | 106*90*58 | AK-DR-80 | 88*72*59 | AK-P-07A-1 | 145*90*40 | AK-P-50C | 82*54*32 |
| AK-DR-27 | 75*71*43 | AK-DR-81 | 120*95*56 | AK-P-08 | 145*90*40 | AK-P-51 | 200*110*110 |
| AK-DR-28 | 75*71*54 | AK-DR-82 | 48*48*80 | AK-P-08A | 145*90*40 | AK-P-52 | 120*100*48 |
| AK-DR-29 | 110*100*17 | AK-DR-83 | 112*66*62 | AK-P-09 | 145*90*72 | AK-P-53 | 90*71*40 |
| AK-DR-30 | 110*100*46 | AK-DR-83 | 112*66*62 | AK-P-09A | 145*90*72 | AK-P-53A | 90*71*40 |
| AK-DR-31 | 93*72*59 | AK-DR-84 | 179*110*50 | AK-P-10 | 145*90*72 | AK-P-54 | 90*90*40 |
| AK-DR-32 | 80*98*40 | AK-DR-84 | 179*110*50 | AK-P-10A | 145*90*72 | AK-P-54A | 90*90*40 |
| AK-DR-33a | 95*41*25 | AK-DR-85 | 223*113*50 | AK-P-11 | 179*100*48 | AK-P-55 | 90*90*40 |
| AK-DR-33b | 95*25*47 | AK-DR-85 | 223*113*50 | AK-P-12 | 155*110*60 | AK-P-55A | 90*90*40 |
| AK-DR-34 | 93*61*45 | AK-DR-86 | 105*75*22 | AK-P-12A | 155*110*60 | AK-P-56 | 82*54*32 |
| AK-DR-35 | 95*41*25 | AK-DR-87 | 105*75*45 | AK-P-13 | 155*110*60 | AK-P-57 | 82*54*33 |
| AK-DR-36 | 160*95*55 | AK-DR-88 | 88*24*59 | AK-P-13 | 155*110*60 | AK-P-58 | 155*101*75 |
| AK-DR-36a | 160*95*55 | AK-DR-89 | 97*71*34 | AK-P-13A | 155*110*60 | AK-P-59 | 137*97*64 |
| AK-DR-37 | 114*95*23 | AK-DR-90 | 150*108 | AK-P-14 | 179*100*77 | AK-P-60 | 105*55*39 |
| AK-DR-38 | 90*62*35 | AK-DR-91 | 150*108 | AK-P-15 | 155*110*110 | AK80001 | 87*60*35 |
| AK-DR-39 | 87*60*35 | AK-DR-92 | 100*112*22.5 | AK-P-16 | 155*110*110 | AK80002 | 86*60*52 |
| AK-DR-40 | 87*60*52 | AK-DR-93 | 100*112*12.5 | AK-P-16A | 155*110*110 | AK80003 | 72*87*60 |
| AK-DR-41 | 87*60*71 | AK-DR-94 | 100*112*22.5 | AK-P-17 | 80*50*31 | AK80004 | 105*87*59 |
| AK-DR-42 | 105*87*60 | AK-DR-95 | 100*112*45 | AK-P-18 | 80*70*61 | AK80005 A1 | 158*87*60 |
| AK-DR-43 | 158*87*60 | AK-DR-96 | 100*112*18 | AK-P-19 | 120*80*60 | AK80005 A2 | 158*87*60 |
| AK-DR-44 | 110*71*75 | AK-DR-97 | 88*36*41 | AK-P-20 | 168*115*40 | AK80006 | 115*90*41 |
| AK-DR-45 | 132*71*75 | AK-DR-98 | 88*72*71 | AK-P-21 | 168*115*75 | AK80007 | 145*90*40 |
| AK-DR-46 | 154*71*75 | AK-DR-99 | 85*80*25 | AK-P-22 | 250*110*65 | AK80008 | 174*139*57 |
| AK-DR-48 | 160*80*75 | AK-DR-100 | 85*80*40 | AK-P-22A | 250*110*65 | AK80009 | 108*112*75 |
| AK-DR-49 | 115*100*22 | AK-DR-101 | 18.1x90.2x57.5 | AK-P-23 | 300*110*110 | AK80010 | 108*112*56 |
| AK-DR-50 | 99*80*25 | AK-DR-101A | 18.1x90.2x57.5 | AK-P-23A | 300*110*110 | AK80011 | 108*112*62 |
| AK-DR-52 | 112*95*48 | AK-DR-102 | 36.3x90.2x57.5 | AK-P-24 | 145*90*72 | Updating | |
| AK-DR-53 | 86*48*48 | AK-DR-102A | 36.3x90.2x57.5 | AK-P-25 | 200*110*60 | ||
