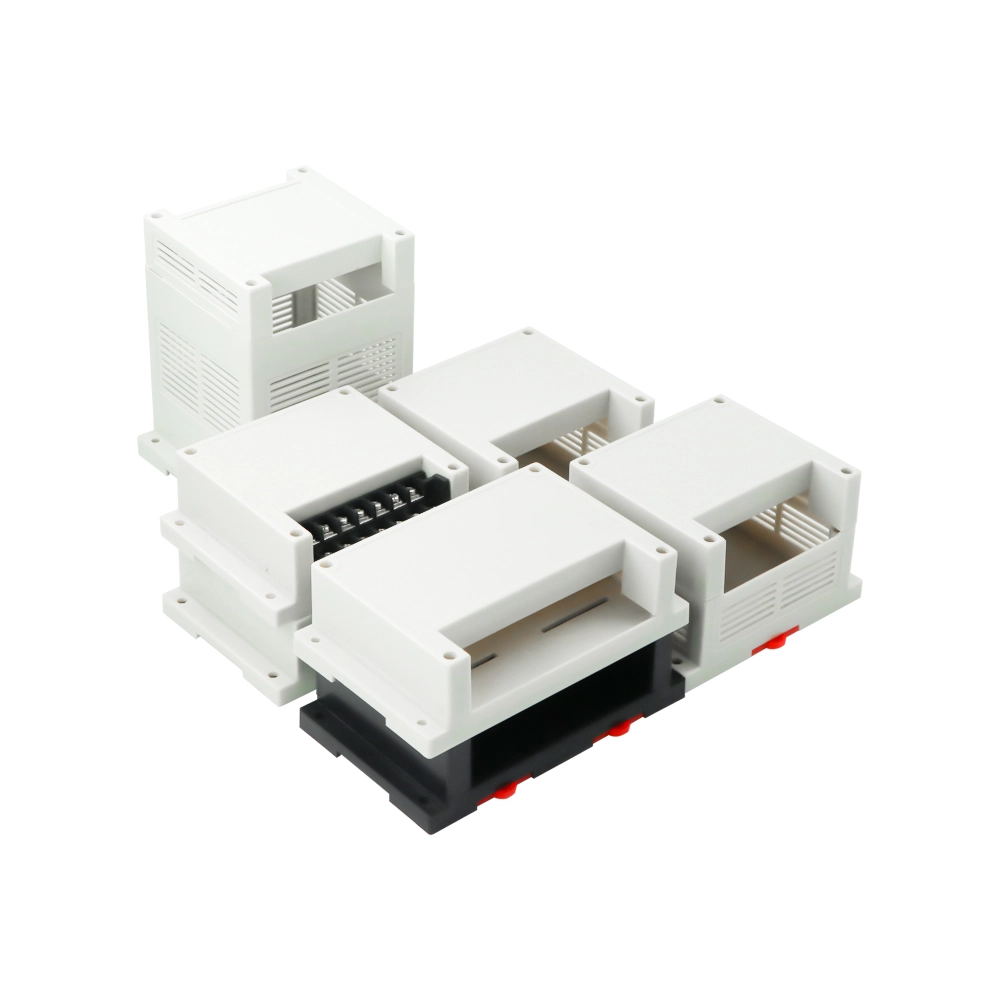

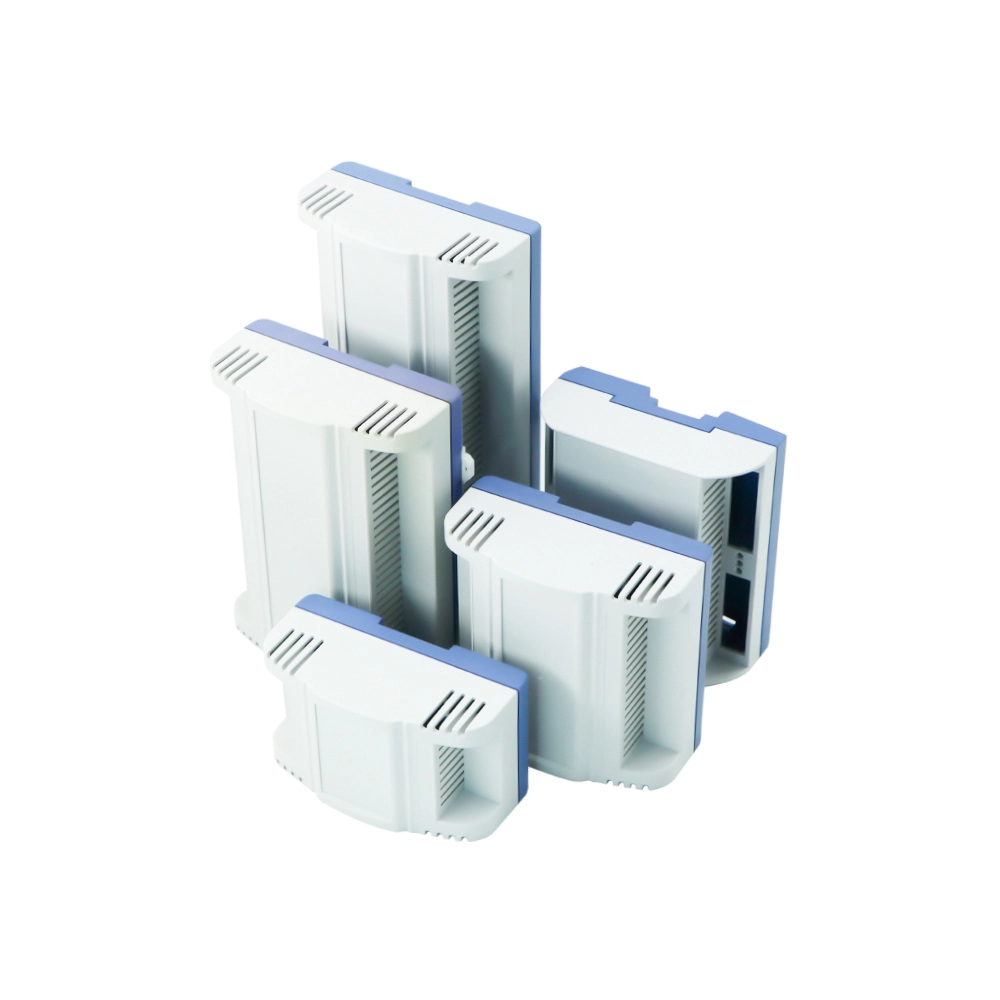

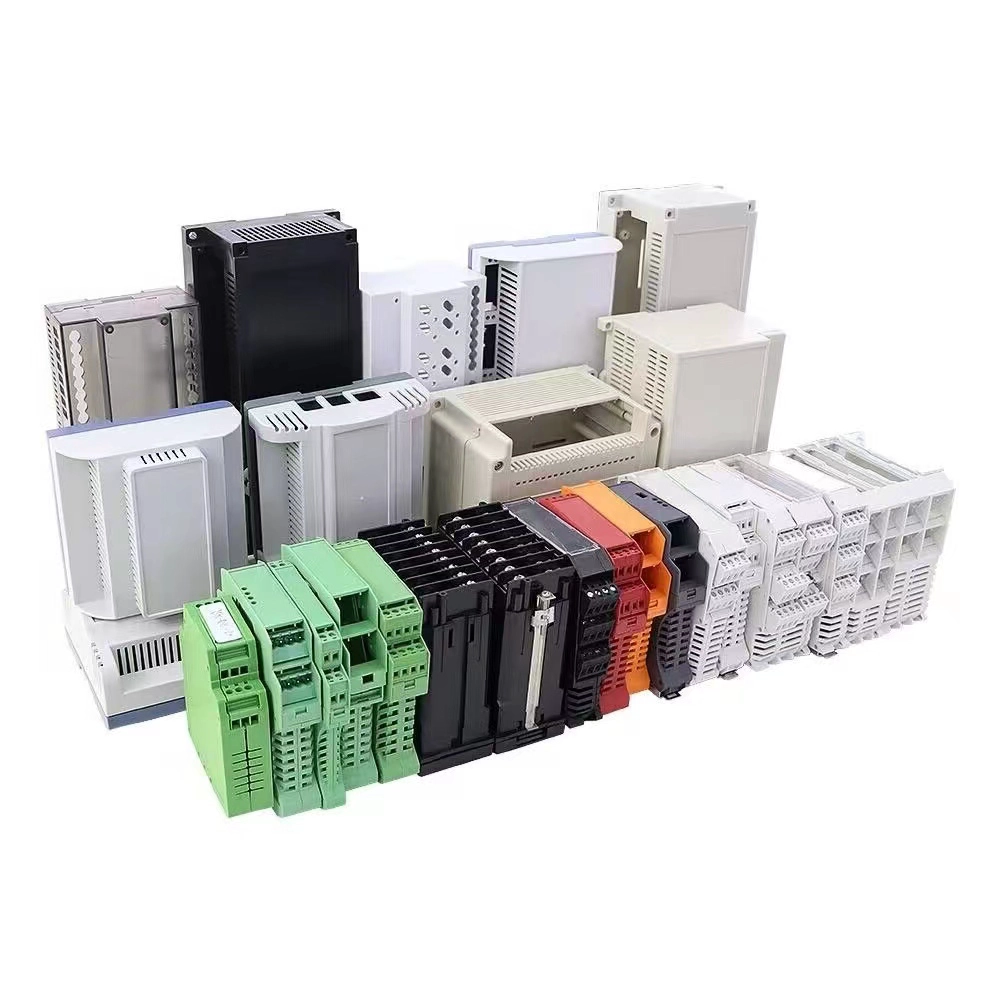

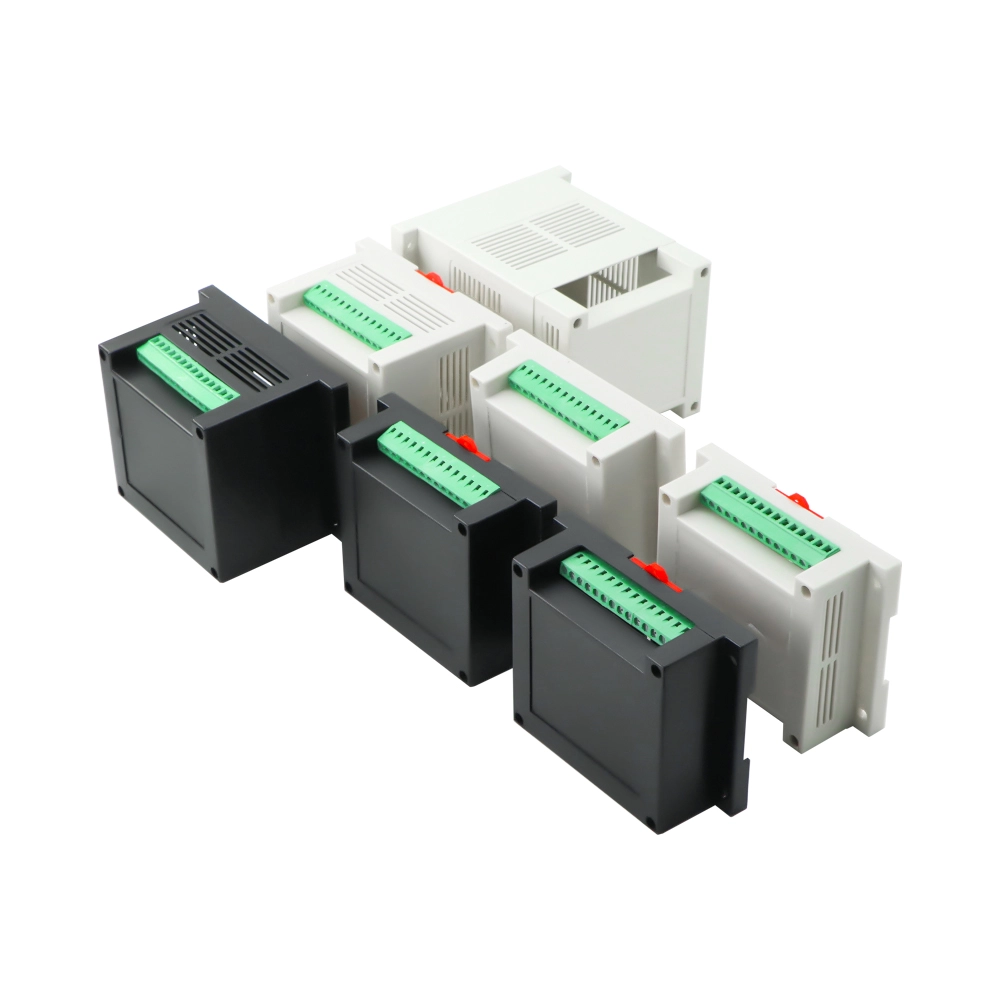

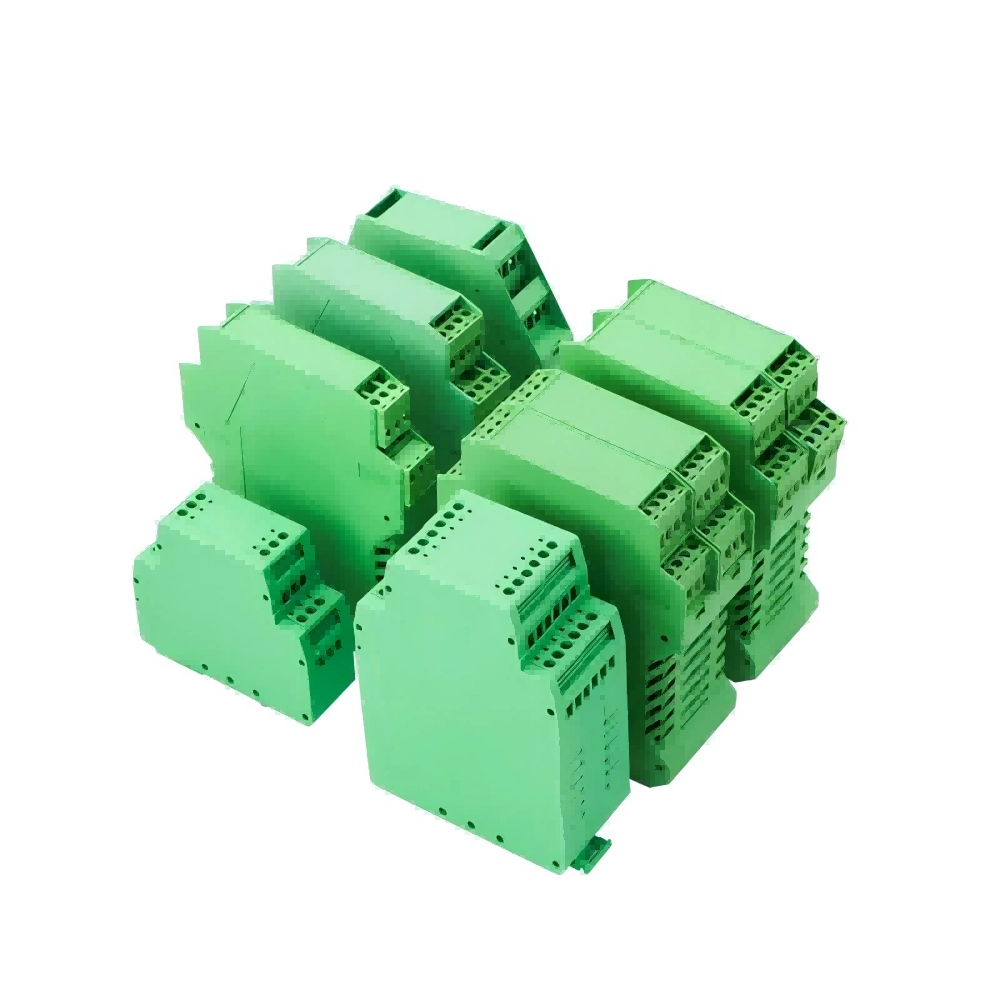

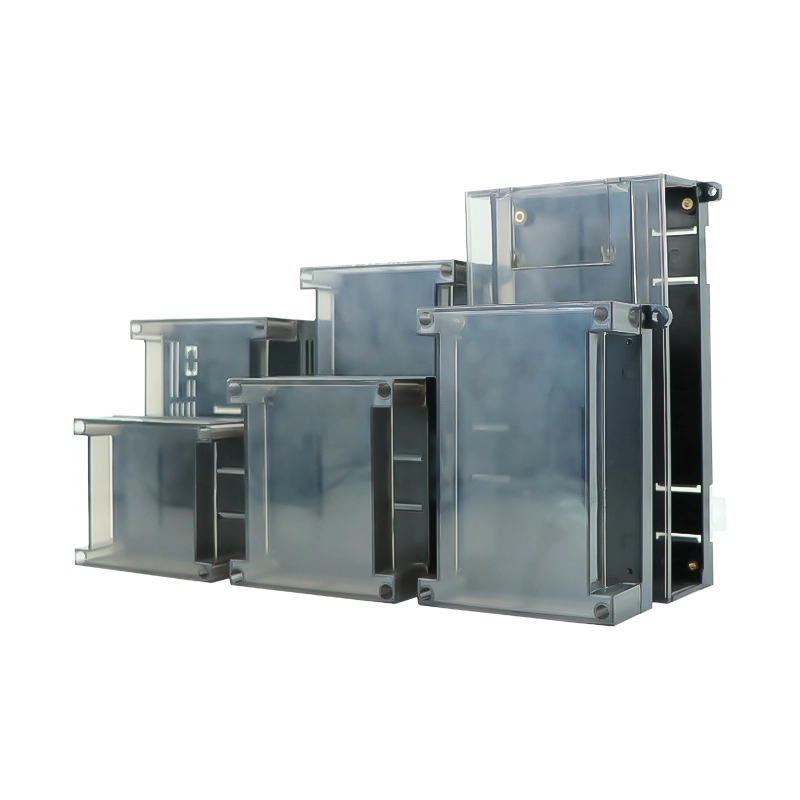

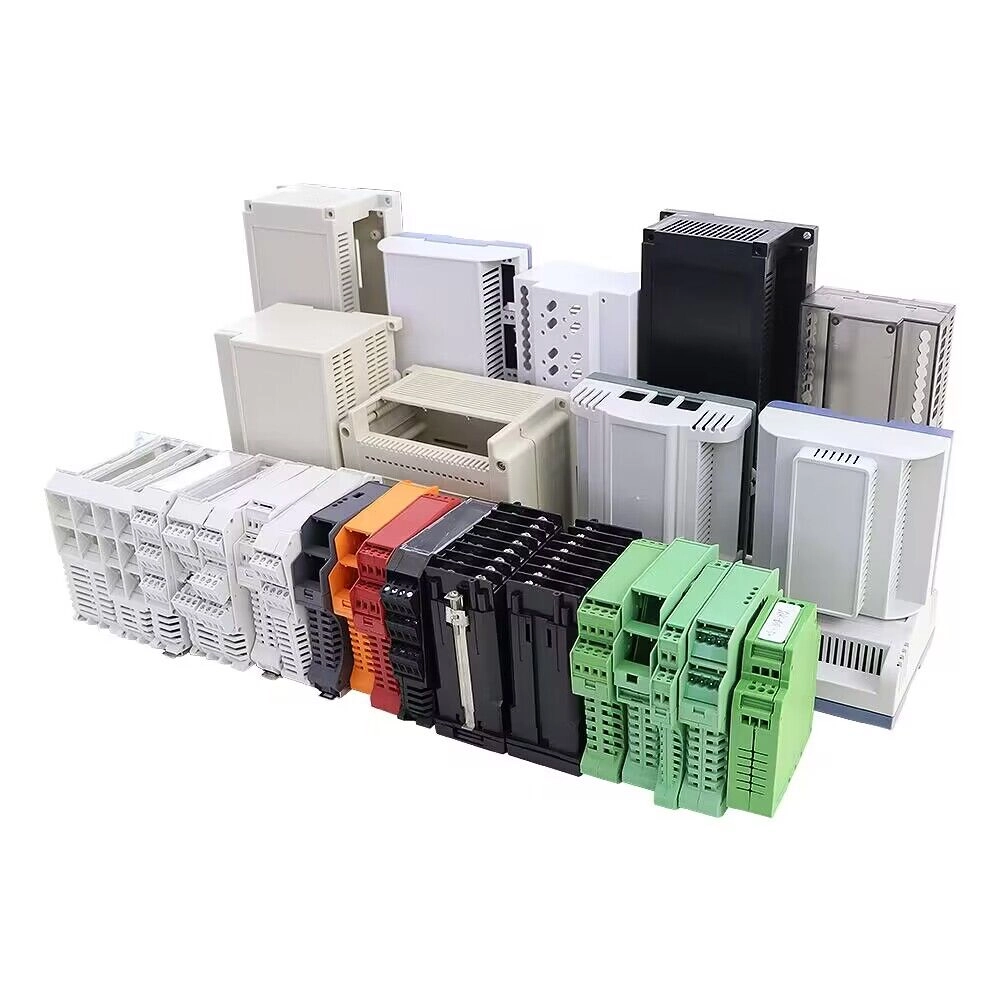

AK-DR-Series Din Rail Enclosure Nylon PC ABS Flame Resistance UL94V0 Terminal Block Industrial Control Plc Box
- Model Number:AK-DR-Series
- Material:Nylon,PC,ABS
- Product Name:Din rail enclosure
- Application:Install Circuit Board
What can SZOMK do for you?
Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)
6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.
Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
Custom PC Nylon Flame Resistance UL94V0 Terminal Block Case Mount ABS PCB Box Electronic PLC Plastic Din Rail Enclosure
| Plastic Din rail Enclosures | |||||||
| Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm | Models | Sizes（L*W*H）mm |
| AK-DR-01 | 88*37*59 | AK-DR-54 | 112*72*72 | AK-DR-103 | 53.3x90.2x57.5 | AK-P-25A | 200*110*60 |
| AK-DR-01C | 88*37*59 | AK-DR-55 | 90*48*76 | AK-DR-103A | 53.3x90.2x57.5 | AK-P-26 | 300*110*60 |
| AK-DR-02 | 88*53*59 | AK-DR-56 | 193*112*56 | AK-DR-104 | 71x90.2x57.5 | AK-P-26A | 300*110*60 |
| AK-DR-02A | 88*53*59 | AK-DR-57 | 150*112*56 | AK-DR-104A | 71x90.2x57.5 | AK-P-27 | 180*100*53 |
| AK-DR-03 | 88*72*59 | AK-DR-59 | 112*66*56 | AK-DR-105 | 83.6x90.2x57.5 | AK-P-28 | 80*62*29 |
| AK-DR-03A | 88*72*59 | AK-DR-60 | 120*110*51 | AK-DR-105A | 83.6x90.2x57.5 | AK-P-29 | 126*79*30 |
| AK-DR-04 | 107*87*59 | AK-DR-61 | 88*72*63 | AK-DR-106 | 159.5x90.2x57.5 | AK-P-30 | 155*110*60 |
| AK-DR-04C | 107*87*59 | AK-DR-62 | 75*55*120 | AK-DR-106A | 159.5x90.2x57.5 | AK-P-30a | 155*110*60 |
| AK-DR-05 | 158*88*59 | AK-DR-63 | 71*90*62 | AK-DR-107 | 89.58*35.65*60.8 | AK-P-31 | 140*135*85 |
| AK-DR-05a | 158*88*59 | AK-DR-64 | 95*36*46 | AK-DR-108 | 95*80*56 | AK-P-32 | 124*70*89 |
| AK-DR-06 | 88*55*44 | AK-DR-65 | 131*76*58 | AK-DR-108-1 | 95*80*56 | AK-P-33 | 141*88*62 |
| AK-DR-07 | 65*45*28 | AK-DR-65 A1 | 131*76*58 | AK-DR-109 | 48*48*71 | AK-P-34 | 179*108*82 |
| AK-DR-08 | 102*70*25 | AK-DR-65 A2 | 131*76*58 | AK-P-01 | 115*90*40 | AK-P-35 | 180*98*52 |
| AK-DR-09 | 102*70*25 | AK-DR-66 | 84*36*70 | AK-P-01A | 115*90*40 | AK-P-36 | 125*90*40 |
| AK-DR-10 | 100*70*25 | AK-DR-67 | 88*107*59 | AK-P-02 | 115*90*40 | AK-P-37 | 125*90*72 |
| AK-DR-11 | 102*80*22 | AK-DR-68 | 88*107*59 | AK-P-02A | 115*90*40 | AK-P-38 | 150*90*40 |
| AK-DR-12 | 100*70*25 | AK-DR-69 | 131*95*55 | AK-P-03 | 115*90*40 | AK-P-39 | 75*90*40 |
| AK-DR-13 | 88*70*51 | AK-DR-70 | 88*72*59 | AK-P-03A | 115*90*40 | AK-P-40 | 95*90*40 |
| AK-DR-14 | 85*70*62 | AK-DR-71 | 88*72*44 | AK-P-04 | 115*90*72 | AK-P-41 | 65*54*18 |
| AK-DR-16 | 48*48*85 | AK-DR-72 | 72*90*63 | AK-P-04A | 115*90*72 | AK-P-42 | 120*82*43 |
| AK-DR-17 | 125*110*65 | AK-DR-72 A1 | 72*90*63 | AK-P-05 | 115*90*72 | AK-P-43 | 250X110X60 |
| AK-DR-18 | 110*65*50 | AK-DR-73 | 92*70*65 | AK-P-05A | 115*90*73 | AK-P-44 | 175x90x40 |
| AK-DR-19 | 200*90*70 | AK-DR-74 | 145*90*63 | AK-P-06 | 145*90*40 | AK-P-45 | 175x90x40 |
| AK-DR-20 | 110*75*65 | AK-DR-75 | 210*90*63 | AK-P-06A | 145*90*40 | AK-P-46 | 200*120*60 |
| AK-DR-21 | 115*90*131 | AK-DR-76 | 162*90*63 | AK-P-06B | 145*90*40 | AK-P-47 | 180X100X77 |
| AK-DR-22 | 115*90*131 | AK-DR-77 | 180X88X59 | AK-P-06C | 145*90*40 | AK-P-48 | 195*80*62 |
| AK-DR-23 | 80*70*26 | AK-DR-78 | 88x18x59 | AK-P-07 | 145*90*40 | AK-P-49 | 93*90*40 |
| AK-DR-24 | 98*98*38 | AK-DR-78A | 88x18x59 | AK-P-07-1 | 145*90*40 | AK-P-50A | 82*54*32 |
| AK-DR-25 | 145*130*90 | AK-DR-79 | 89*36*44 | AK-P-07A | 145*90*40 | AK-P-50B | 82*54*32 |
| AK-DR-26 | 106*90*58 | AK-DR-80 | 88*72*59 | AK-P-07A-1 | 145*90*40 | AK-P-50C | 82*54*32 |
| AK-DR-27 | 75*71*43 | AK-DR-81 | 120*95*56 | AK-P-08 | 145*90*40 | AK-P-51 | 200*110*110 |
| AK-DR-28 | 75*71*54 | AK-DR-82 | 48*48*80 | AK-P-08A | 145*90*40 | AK-P-52 | 120*100*48 |
| AK-DR-29 | 110*100*17 | AK-DR-83 | 112*66*62 | AK-P-09 | 145*90*72 | AK-P-53 | 90*71*40 |
| AK-DR-30 | 110*100*46 | AK-DR-83 | 112*66*62 | AK-P-09A | 145*90*72 | AK-P-53A | 90*71*40 |
| AK-DR-31 | 93*72*59 | AK-DR-84 | 179*110*50 | AK-P-10 | 145*90*72 | AK-P-54 | 90*90*40 |
| AK-DR-32 | 80*98*40 | AK-DR-84 | 179*110*50 | AK-P-10A | 145*90*72 | AK-P-54A | 90*90*40 |
| AK-DR-33a | 95*41*25 | AK-DR-85 | 223*113*50 | AK-P-11 | 179*100*48 | AK-P-55 | 90*90*40 |
| AK-DR-33b | 95*25*47 | AK-DR-85 | 223*113*50 | AK-P-12 | 155*110*60 | AK-P-55A | 90*90*40 |
| AK-DR-34 | 93*61*45 | AK-DR-86 | 105*75*22 | AK-P-12A | 155*110*60 | AK-P-56 | 82*54*32 |
| AK-DR-35 | 95*41*25 | AK-DR-87 | 105*75*45 | AK-P-13 | 155*110*60 | AK-P-57 | 82*54*33 |
| AK-DR-36 | 160*95*55 | AK-DR-88 | 88*24*59 | AK-P-13 | 155*110*60 | AK-P-58 | 155*101*75 |
| AK-DR-36a | 160*95*55 | AK-DR-89 | 97*71*34 | AK-P-13A | 155*110*60 | AK-P-59 | 137*97*64 |
| AK-DR-37 | 114*95*23 | AK-DR-90 | 150*108 | AK-P-14 | 179*100*77 | AK-P-60 | 105*55*39 |
| AK-DR-38 | 90*62*35 | AK-DR-91 | 150*108 | AK-P-15 | 155*110*110 | AK80001 | 87*60*35 |
| AK-DR-39 | 87*60*35 | AK-DR-92 | 100*112*22.5 | AK-P-16 | 155*110*110 | AK80002 | 86*60*52 |
| AK-DR-40 | 87*60*52 | AK-DR-93 | 100*112*12.5 | AK-P-16A | 155*110*110 | AK80003 | 72*87*60 |
| AK-DR-41 | 87*60*71 | AK-DR-94 | 100*112*22.5 | AK-P-17 | 80*50*31 | AK80004 | 105*87*59 |
| AK-DR-42 | 105*87*60 | AK-DR-95 | 100*112*45 | AK-P-18 | 80*70*61 | AK80005 A1 | 158*87*60 |
| AK-DR-43 | 158*87*60 | AK-DR-96 | 100*112*18 | AK-P-19 | 120*80*60 | AK80005 A2 | 158*87*60 |
| AK-DR-44 | 110*71*75 | AK-DR-97 | 88*36*41 | AK-P-20 | 168*115*40 | AK80006 | 115*90*41 |
| AK-DR-45 | 132*71*75 | AK-DR-98 | 88*72*71 | AK-P-21 | 168*115*75 | AK80007 | 145*90*40 |
| AK-DR-46 | 154*71*75 | AK-DR-99 | 85*80*25 | AK-P-22 | 250*110*65 | AK80008 | 174*139*57 |
| AK-DR-48 | 160*80*75 | AK-DR-100 | 85*80*40 | AK-P-22A | 250*110*65 | AK80009 | 108*112*75 |
| AK-DR-49 | 115*100*22 | AK-DR-101 | 18.1x90.2x57.5 | AK-P-23 | 300*110*110 | AK80010 | 108*112*56 |
| AK-DR-50 | 99*80*25 | AK-DR-101A | 18.1x90.2x57.5 | AK-P-23A | 300*110*110 | AK80011 | 108*112*62 |
| AK-DR-52 | 112*95*48 | AK-DR-102 | 36.3x90.2x57.5 | AK-P-24 | 145*90*72 | Updating | |
| AK-DR-53 | 86*48*48 | AK-DR-102A | 36.3x90.2x57.5 | AK-P-25 | 200*110*60 | ||
Common Applications
These highly durable ABS plastic enclosures are suitable for mounting to a DIN rail in a wide range of applications such as: •Power breakers
• HVAC
• Network interfaces
• IoT devices
• Condition monitors
• Bus systems
Features and Benefits
• Flame retardant ABS plastic
• Durable, airtight and chemical resistant casing to protect electrical parts and components
• Freedom of choice with the internal layout of PCB’s, wires and more
• Neutral light grey colour • Supplied with a hook, blanking and four screws
• Quick and easy to install
• Compatible with a wide range of applications and environments
What is a din rail enclosure?
Din rail instrument enclosures provide perfect protection from dust and moisture of internal electrical parts and components that are required to be mounted to a din rail. This form of enclosure is ideal for when space is limited or restricted. An enclosure mounted to a din rail allows PCB (printed circuit boards) and other standard electrical components to be safely installed and protected at all times, reducing the risk of damage and deterioration. enclosures for din rails are also compatible with a range of accessories such as panel blanking, hooks and screws for easy installation.
