Ak-H-Series Handheld Plastic Instrument Enclosures Battery Compartment Display Remote Electronic Abs Box
- Model Number:AK-H-Series
- Material:ABS、PP
- IP Rate：IP54 to IP65
- Product Name:Handheld Plastic electronic enclosures
- Features:Ergonomics,grip arc and button layout must be in line with hand comfort
- Application:This housing is widely used in electronic products such as smartphones, walkie-talkies, remote controls,handheld scanners, game controllers, medical handheld devices, etc.
- 93 sizes are available.
What can SZOMK do for you?
Main categories: plastic shells, aluminum shells, plastic injection molds, CNC products, 3D printing products
1,Model 2000 One-stop shell of the factory, some commodities in our stock - Subscribe: 1 PC
2. We can do it DIY Small order customization service-----Subscription: 20-50 PCs
3. We can design Private customs Case (if PCB is provided)
4, to Private mold Custom (provides examples or step files)
6.Customized services: Cut/mold/acrylic board/PVC label/silk screen/laserengraving/sticker/silicone/cance color, very quickly.

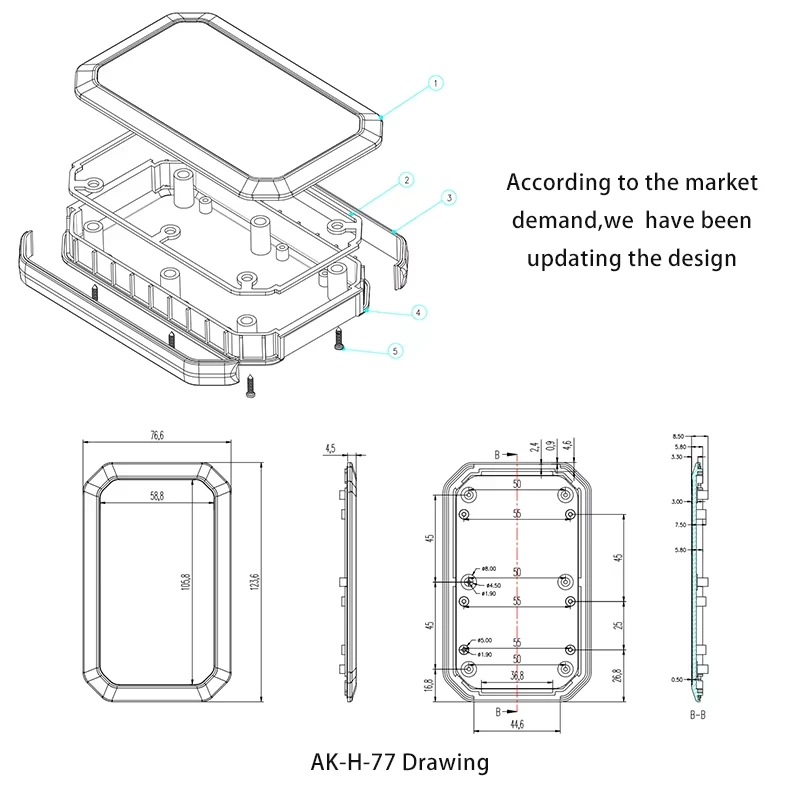

Contact Szomk- Provide expert technical advice for your PCB and electronic components and discover how easy it is to designate the perfect housing for your electronics. Drawings are provided for each model.
SZOMK ABS Remote Control Battery Compartment Instrument Pcb Project Box Small Electronic Plastic Handheld Enclosure
| Product parameters | |
| Type | Plastic handheld enclosure |
| Brand Name | SZOMK |
| Model Number | AK-H-Series |
| External Size | 93 sizes |
| Material | ABS,PP |
| Advantage | Ergonomic Design,the grip arc and button layout must meet the comfort of the hand |
| Application | Mobile electronics equipment,widely used in smart phones, walkie-talkies, lighting, handheld scanners, game controllers, medical handheld devices and other electronic products |
| Color | colors are available |
| Package | Carton Package |
| Customization | Silkscreen,cutout,label,laser Engrave |
| Drawing Format | CAD,PDF,3D |
| Delivery time | 3-5 Working Days |
| Certificate | CE/IP65/ISO9001/ROHS |
| Protection Level | IP54 to IP65 |
SZOMK Handheld Plastic Enclosure
Handheld Chassis Ergonomic Handheld Chassis for Mobile Electronics Devices throughout, manufacturing advanced ergonomic handheld chassis dimensions has been the main focus of our projects. Today, we offer a variety and styles to suit indoor and outdoor electronic equipment. SZOMK handheld enclosures has an aesthetic and timeless design and is extremely comfortable to hold, guaranteeing safe and fatigue-free operation. Our standard enclosures have many built-in features and are set up to be compatible with modern electronic components. Includes: battery compartment for N, AAA, AA, C and 9 V type batteries, mounting points for pcb, display module, PCMCIA card and connectors, high protection classes from IP 54 to IP 65, for protective film keyboard and holder areas for product labels, as well as the molding of reinforced, impact-resistant plastics for industrial use, or infrared-permeable materials for remote control signals. A wide range of accessories allows you to add extra functionality to your case, such as braid/pocket clips, lanyards, desktop and wall stations with contacts for battery charging and data transfer, tilt stands and more. Select and design a handheld housing that meets your specific requirements. Suitable for measuring instruments, controllers, network equipment, RFID tags, data loggers, medical equipment.

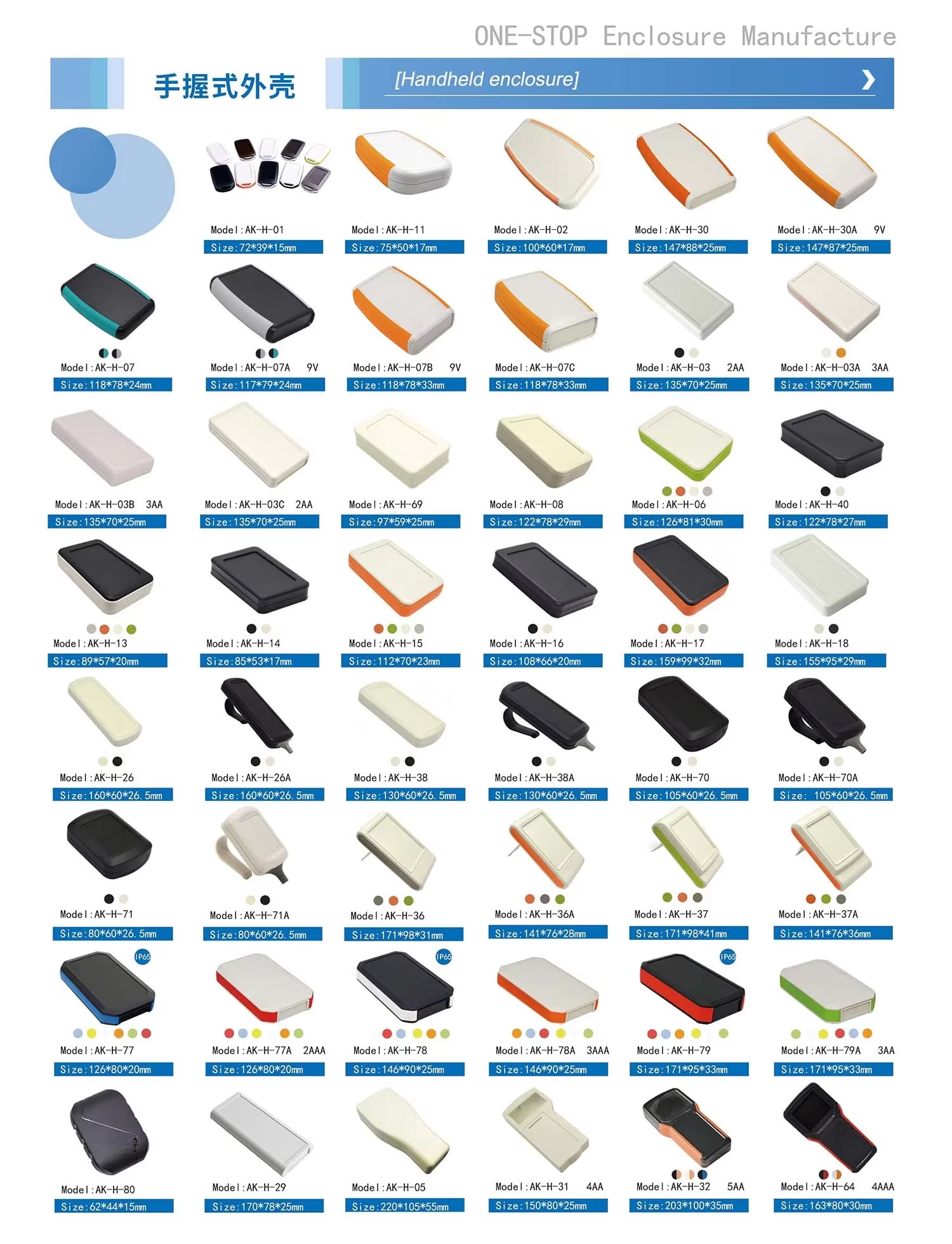

| Handheld Plastic Enclosures | |||||||||
| Models | Sizes(MM) | Models | Sizes(MM) | Models | Sizes(MM) | Models | Sizes(MM) | Models | Sizes(MM) |
| AK-H-01 | 72*39*15 | AK-H-24 | 139*65*26 | AK-H-47 | 140*65*31 | AK-H-47 | 140*65*31 | AK-H-74 | 56*39*12 |
| AK-H-03 | 135*70*25 | AK-H-25 | 177*85*31 | AK-H-48 | 165*75*26 | AK-H-48 | 165*75*26 | AK-H-75 | 99*54*16 |
| AK-H-03A | 135*70*25 | AK-H-26 | 160*60*26.5 | AK-H-49 | 135*65*25 | AK-H-49 | 135*65*25 | AK-H-76 | 85*40*10 |
| AK-H-04 | 238*134*57 | AK-H-28 | 127*72*37 | AK-H-51 | 128*75*24 | AK-H-51 | 128*75*24 | AK-H-77 | 126*80*20 |
| AK-H-06 | 126*81*30 | AK-H-30 | 147*87*25 | AK-H-52 | 110*51*23 | AK-H-52 | 110*51*23 | AK-H-77a | 126*80*20 |
| AK-H-07 | 117*79*24 | AK-H-30a | 147*87*25 | AK-H-53 | 110*60*25 | AK-H-53 | 110*60*25 | AK-H-78 | 146*88*25 |
| AK-H-07a | 117*79*24 | AK-H-31 | 150*80*25 | AK-H-54 | 220*107*40 | AK-H-54 | 220*107*40 | AK-H-78a | 146*88*25 |
| AK-H-07B | 117*79*33 | AK-H-32 | 203*100*35 | AK-H-55 | 210*125*47 | AK-H-55 | 210*125*47 | AK-H-79 | 171*95*33 |
| AK-H-08 | 122*78*29 | AK-H-33 | 200*92*33 | AK-H-56 | 177*84*34 | AK-H-56 | 177*84*34 | AK-H-79a | 171*95*33 |
| AK-H-09 | 86*45*14 | AK-H-34 | 173*85*50 | AK-H-57 | 134*70*31 | AK-H-57 | 134*70*31 | AK-H-80 | 62*44*15 |
| AK-H-11 | 70*50*17 | AK-H-34a | 173*85*50 | AK-H-58 | 154*102*24 | AK-H-58 | 154*102*24 | AK-H-81 | 250*155*69 |
| AK-H-12 | 72*36*14 | AK-H-35 | 38*76*174 | AK-H-59 | 190*81*31 | AK-H-59 | 190*81*31 | AK-H-82 | 221*168*64 |
| AK-H-13 | 89*57*20 | AK-H-36 | 171*98*31 | AK-H-60 | 180*81*45 | AK-H-60 | 180*81*45 | AK-H-85 | 210*116*40 |
| AK-H-14 | 85*53*17 | AK-H-36a | 141*76*28 | AK-H-61 | 99*52*15 | AK-H-61 | 99*52*15 | AK-H-86 | 98*53*16 |
| AK-H-15 | 112*70*23 | AK-H-37 | 171*98*41 | AK-H-62 | 197*70*35 | AK-H-62 | 197*70*35 | AK-H-87 | 49*38*17 |
| AK-H-16 | 108*66*20 | AK-H-38 | 130*60*26.5 | AK-H-63 | 114*45*25 | AK-H-63 | 114*45*25 | AK-H-88 | 41*37*17 |
| AK-H-17 | 159*99*32 | AK-H-39 | 216*112*76 | AK-H-64 | 163*80*30 | AK-H-64 | 163*80*30 | AK-H-89 | 90*46*18 |
| AK-H-18 | 155*95*29 | AK-H-40 | 122*78*27 | AK-H-69 | 97*59*25 | AK-H-69 | 97*59*25 | AK-H-90 | 87*42*15 |
| AK-H-19 | 238*134*50 | AK-H-42 | 166*80*28 | AK-H-70 | 105*60*26.5 | AK-H-70 | 105*60*26.5 | AK-H-91 | 82*42*15 |
| AK-H-20 | 230*110*70 | AK-H-42a | 210*100*32 | AK-H-71 | 80*60*26.5 | AK-H-71 | 80*60*26.5 | AK-H-92 | 88*45*13 |
| AK-H-21 | 210*110*40 | AK-H-43 | 203*100*35 | AK-H-72 | 114*55*25 | AK-H-72 | 114*55*25 | AK-H-93 | 86.5*42.5*14.5 |
| AK-H-23 | 176*78*36 | AK-H-46 | 150*78*39 | AK-H-73 | 110*53*21 | AK-H-73 | 110*53*21 | ||
Product packaging
