PCB Wire Protection Terminal Block Connector AK126-5.0

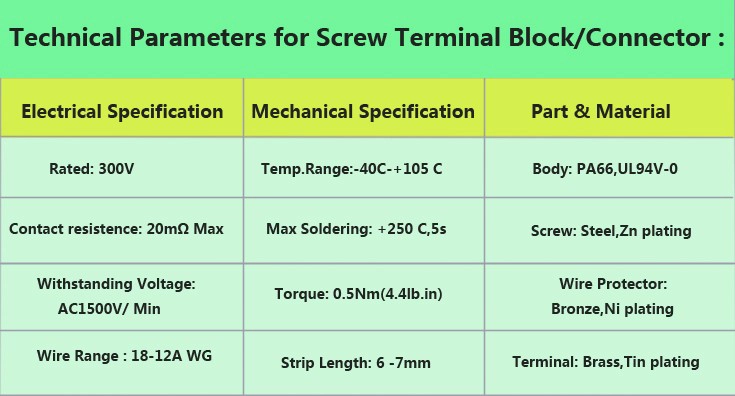

  • Specifications
  • 1 Model Number: AK126-5.0

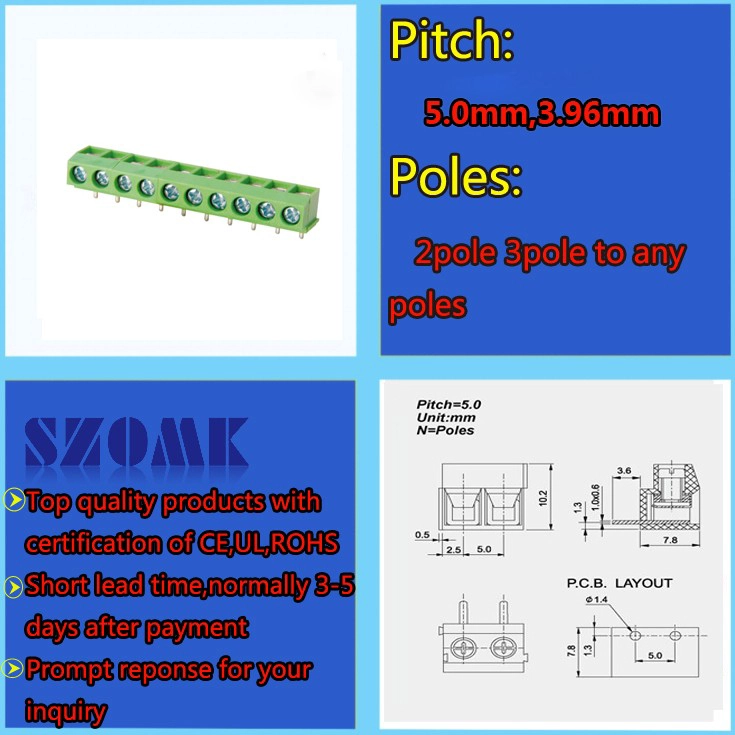

  • 2 Pitch: 5.0mm
  • 3 Rated: 300V,16A
  • 4 Type:Wire Protection  Terminal Block Connector
  • 5 Color: Green
  • 6 Wire Range: 22-14AWG(2.5MM2)
  • 7 Pole:2p 3p to any pole
  • 8 Brand: SZOMK
  • 9 Sample Available

Quick Details:

1 Place of Origin: Zhejiang, China (Mainland)
2 Packaging Details:Box length:260mm ,Width:200mm Depth:100mm .1000pcs/box
3 Delivery Detail:normally 3-5 days after payment
4 Top quality products with certification of CE,UL,ROHS
5 Prompt reponse for your inquiry


characterization

PCB terminal block is mainly characterized by the monomer and the  circuit  board soldering  and wiring  easy, and reliable screw connection. The  pitch is 3.5, 3.81, 5.0, 5.08,  and so on. The  terminal blocks can  be combined with 3P and 2P. The products  without  stitching  are  also available. The wiring directions are front, side, slope and other different styles.
