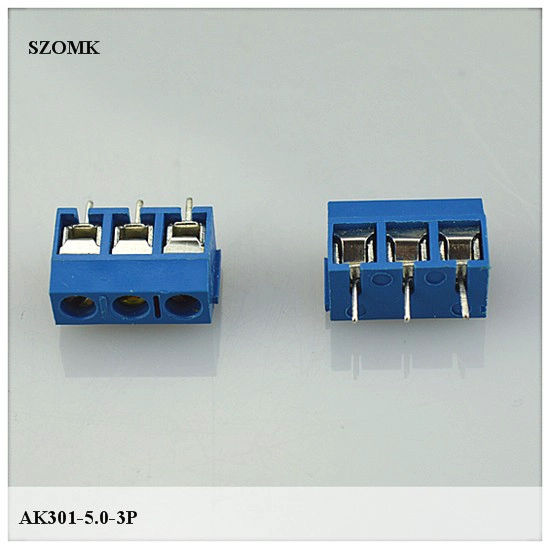

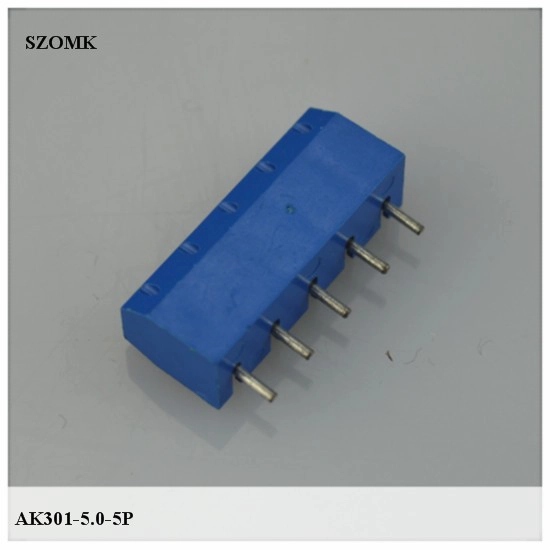

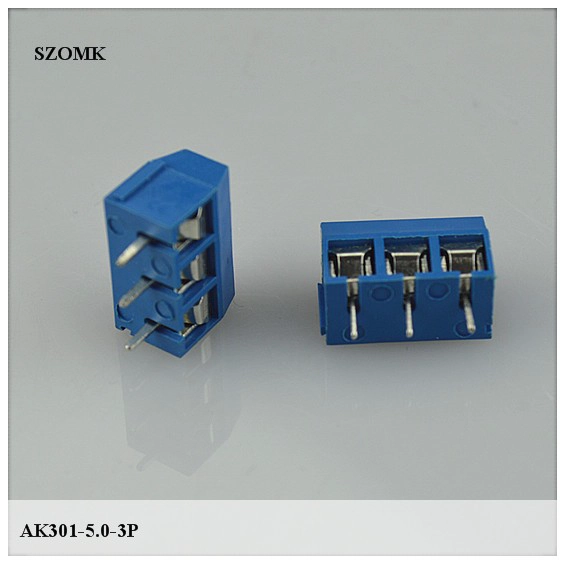

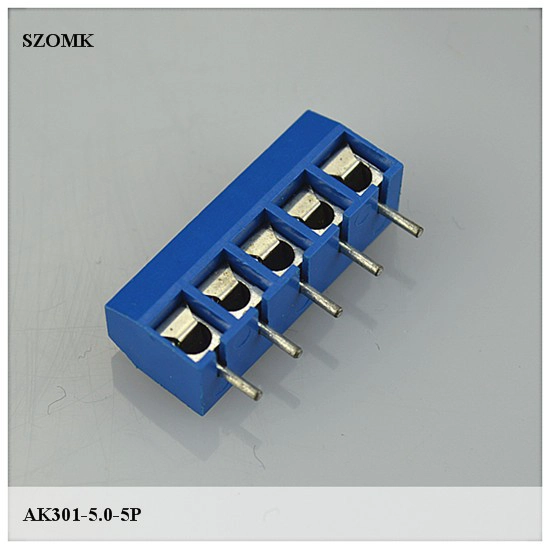

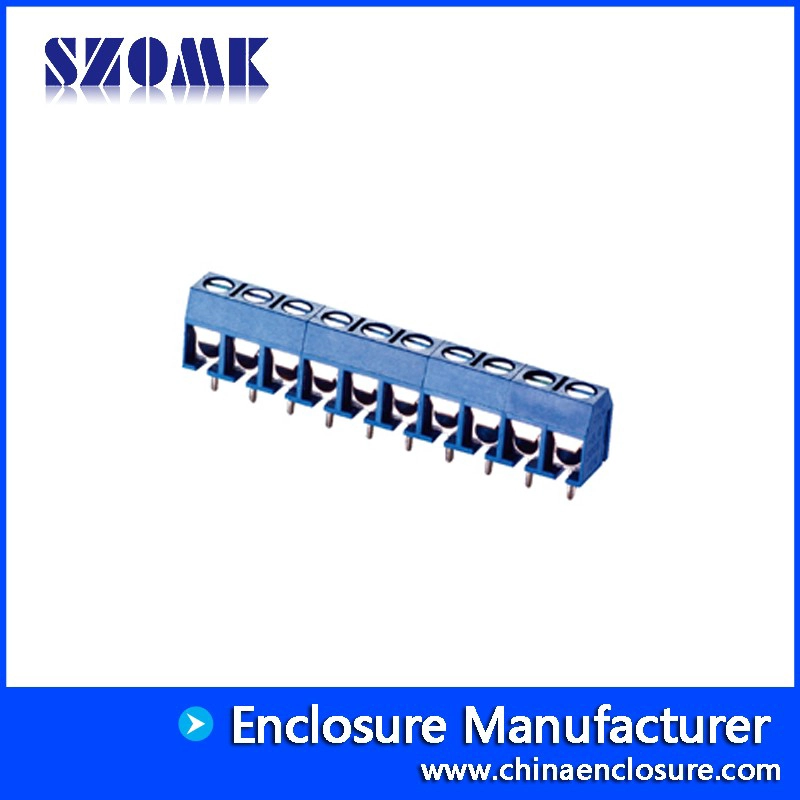

PCB Wire Protection Terminal Block Connector AK301-5.0

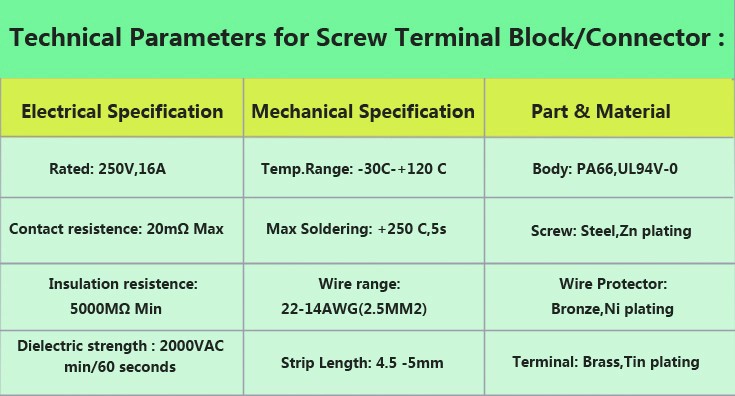

  • specifications
  • 1 Model Number: AK301-5.0

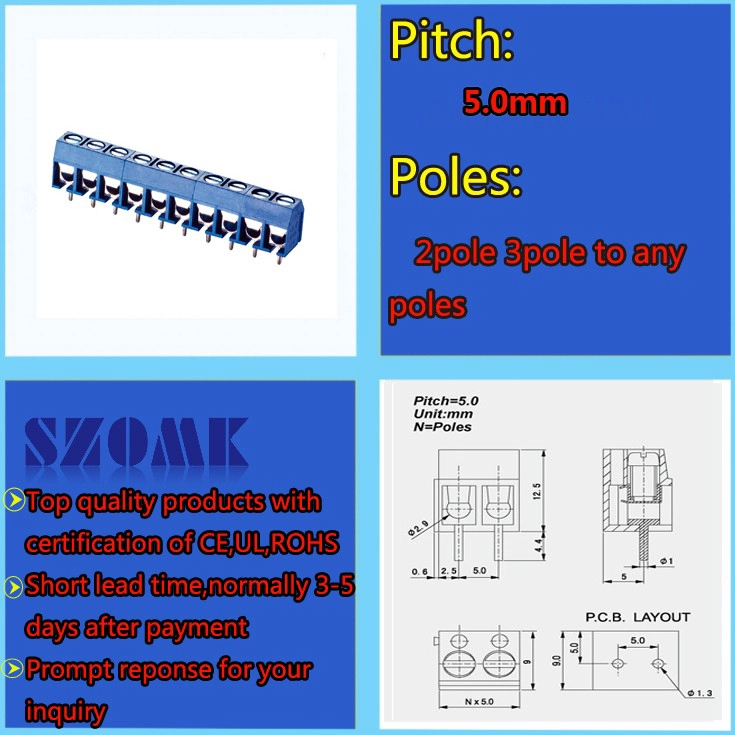

  • 2 Pitch:5.0mm
  • 3 Rated:  300V,16A
  • 4 Type:Wire Protection  Terminal Block Connector
  • 5 Color:Blue
  • 6 Wire Range: 22-14AWG(2.5MM2)
  • 7 Pole:2p 3p to any pole
  • 8 Brand: SZOMK
  • 9 Sample Available

Quick Details:

1 Place of Origin: Zhejiang, China (Mainland)
2 Packaging Details:Box length:260mm ,Width:200mm Depth:100mm .1000pcs/box
3 Delivery Detail:normally 3-5 days after payment
4 Top quality products with certification of CE,UL,ROHS
5 Prompt reponse for your inquiry


characterization

PCB terminal block is mainly characterized by the monomer and the circuit  board soldering  and   wiring easy, and reliable screw  connection. The pitch is 3.5, 3.81, 5.0, 5.08,  and so on. The  terminal  blocks can be combined with 3P and 2P. The products  without  stitching are  also  available. The wiring directions are front, side, slope and other different styles.
