New design extruded aluminum enclosure PCB board junction box for electronics AK-C-A13 55*147*155mm
- Heat sink aluminum enclosure
- Model No: AK-C-A13
- BRAND: SZOMK
- External Size: 55 x 147 x free(mm)
- Material: Aluminum
- Net Weight:394 g
- Color: silver-wall mount brushed aluminum enclosure
- Type: Distribution Box
- Customization: finish, logo, cutout, color, length
- Sample available: Yes
Specifications
1.Type:wall mount brushed aluminum enclosure2.Model No. AK-C-A13
3. Size:55 x 147 x free(mm) 2.17"x 5.79"x free
4. MOQ: 30 pcs
Introduction of wall mount brushed aluminum enclosure
The wall mount brushed aluminum enclosure is used as an anode, placed in electrolyte, artificially formed the enclosure having a protective aluminum oxide film on the surface.
Wall mount brushed aluminum enclosure material features:
1. Has a strong resistance to abrasion, weathering, corrosion.
2. Can be formed on the surface of a variety of colors, to maximize fit your requirements.
3. Have a strong hardness, can be well protected your electronics.
wall mount brushed aluminum enclosure
Type | wall mount brushed aluminum enclosure |
Brand | SZOMK |
Material | aluminum |
Model No. | AK-C-A13 |
Size | 55x147xfree(mm) 2.17"x5.79"xfree |
Color | silver |
Customize MOQ | 30 pieces |
Protect level | IP54 |
Lead time | 5-15 days after get payment |
Normal packing | Carton |

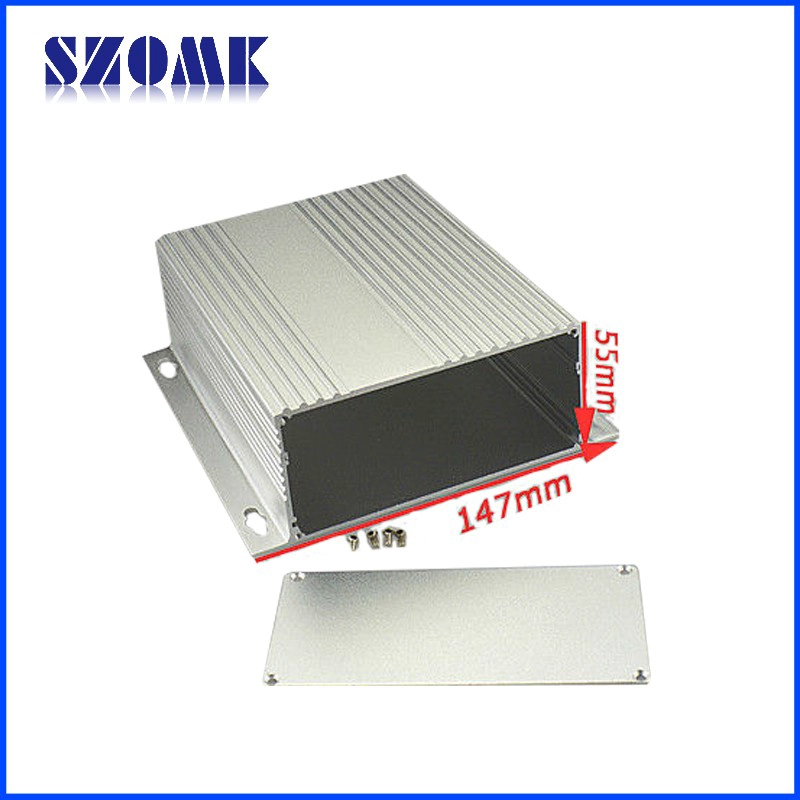

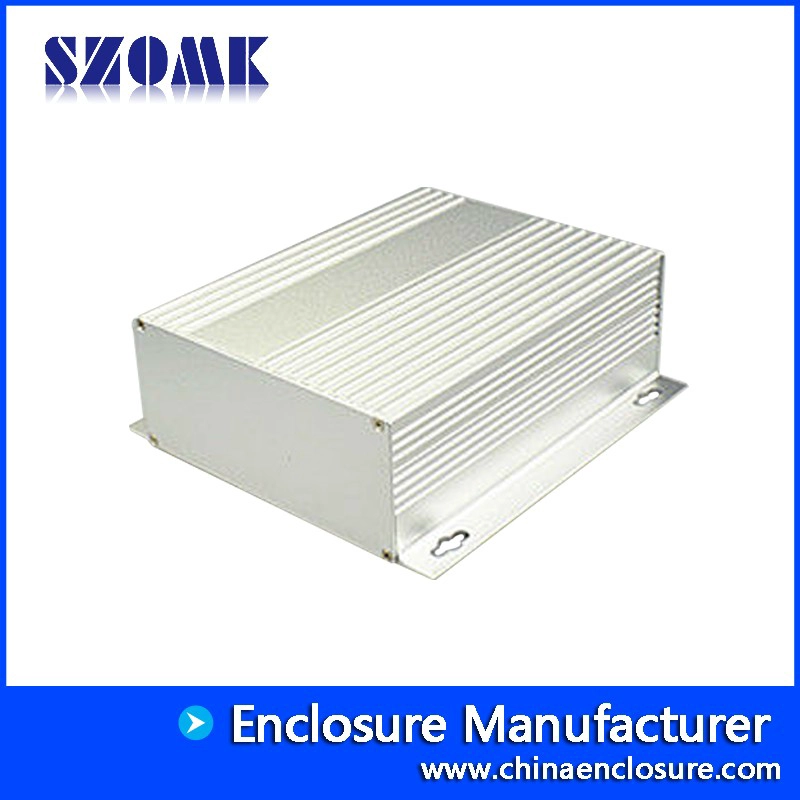

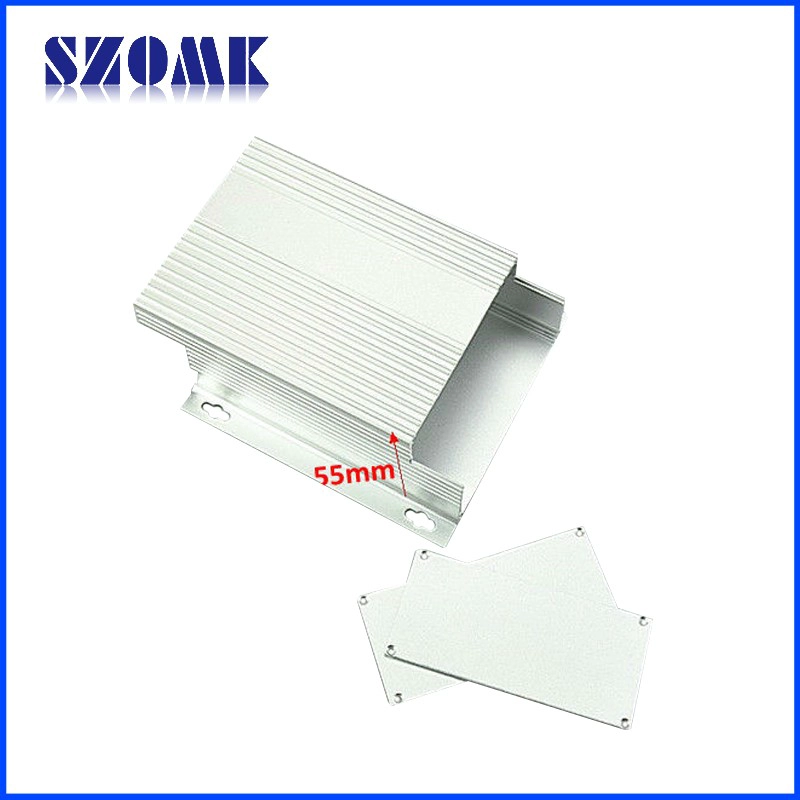

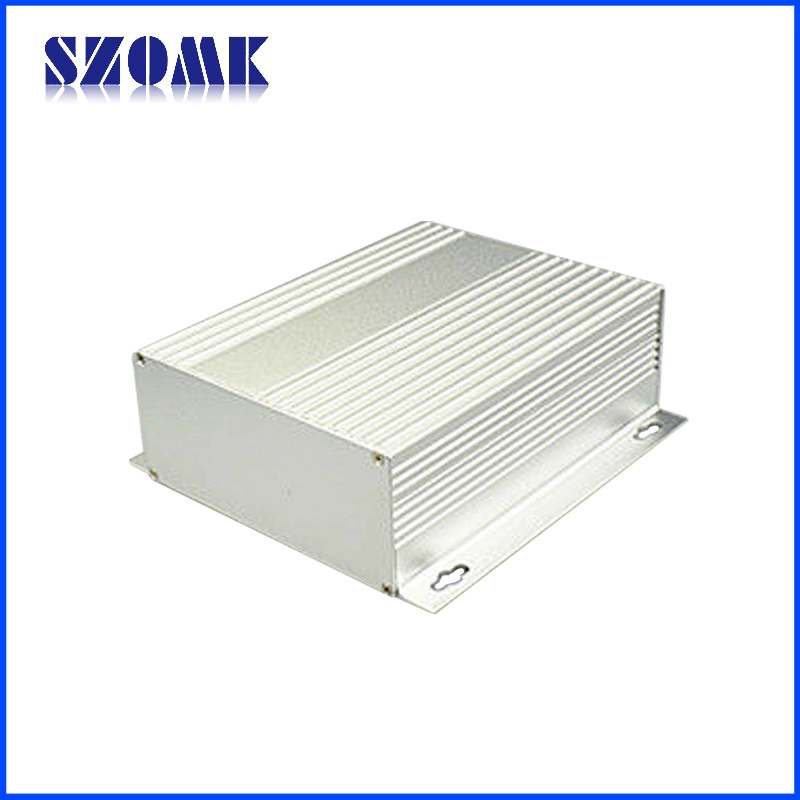

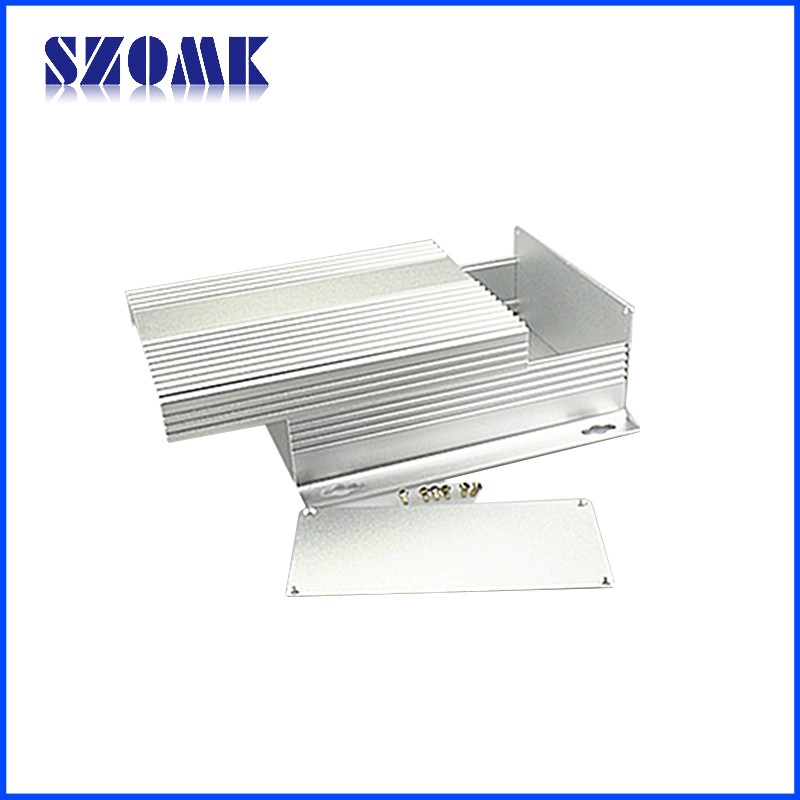

Detail pictures of wall mount brushed aluminum enclosure
