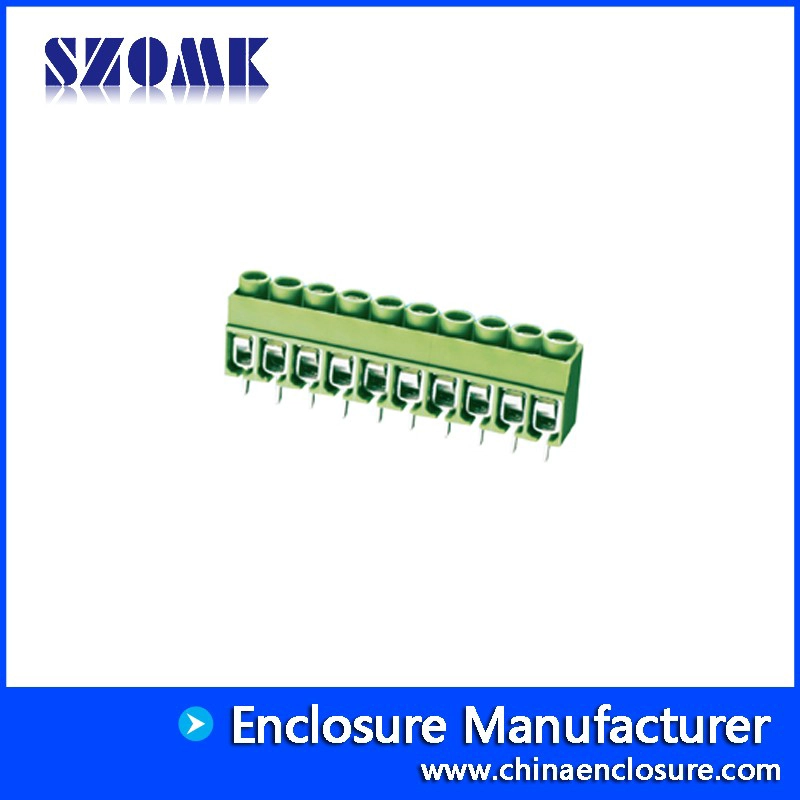

PCB  Wire Protection  Terminal Block Connector AK167-5.0

PCB Wire Protection Terminal Block Connector AK167-5.0

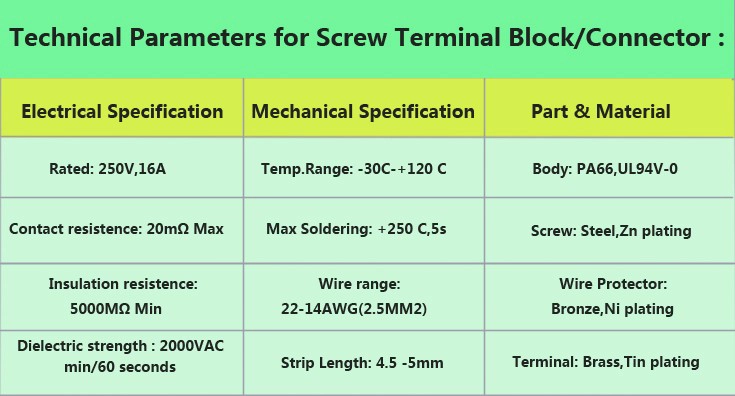

  • Specifications
  • 1 Model Number: AK167-5.0
  • 2 Pitch: 5.0mm
  • 3 Rated: 300V 15A
  • 4 Type:Wire Protection Terminal block
  • 5 Color:Green
  • 6 Wire Range: 22-12AWG(2.5mm2)
  • 7 Pole: 2p 3p to any pole
  • 8 Brand: SZOMK
  • 9 Sample Available
Quick Details

1 Place of Origin: Zhejiang, China (Mainland)
2 Packaging Details:Box length:260mm ,Width:200mm Depth:100mm .1000pcs/box
3 Delivery Detail:normally 3-5 days after payment
4 Top quality products with certification of CE,UL,ROHS
5 Prompt reponse for your inquiry


characterization

PCB  terminal block is  mainly characterized  by the  monomer and the circuit board soldering and wiring easy, and reliable  screw connection. The pitch is 3.5, 3.81, 5.0, 5.08,  and so on. The terminal blocks can be combined with 3P and  2P.  The  products  without  stitching are also  available.  The  wiring directions are front, side, slope and other different styles
