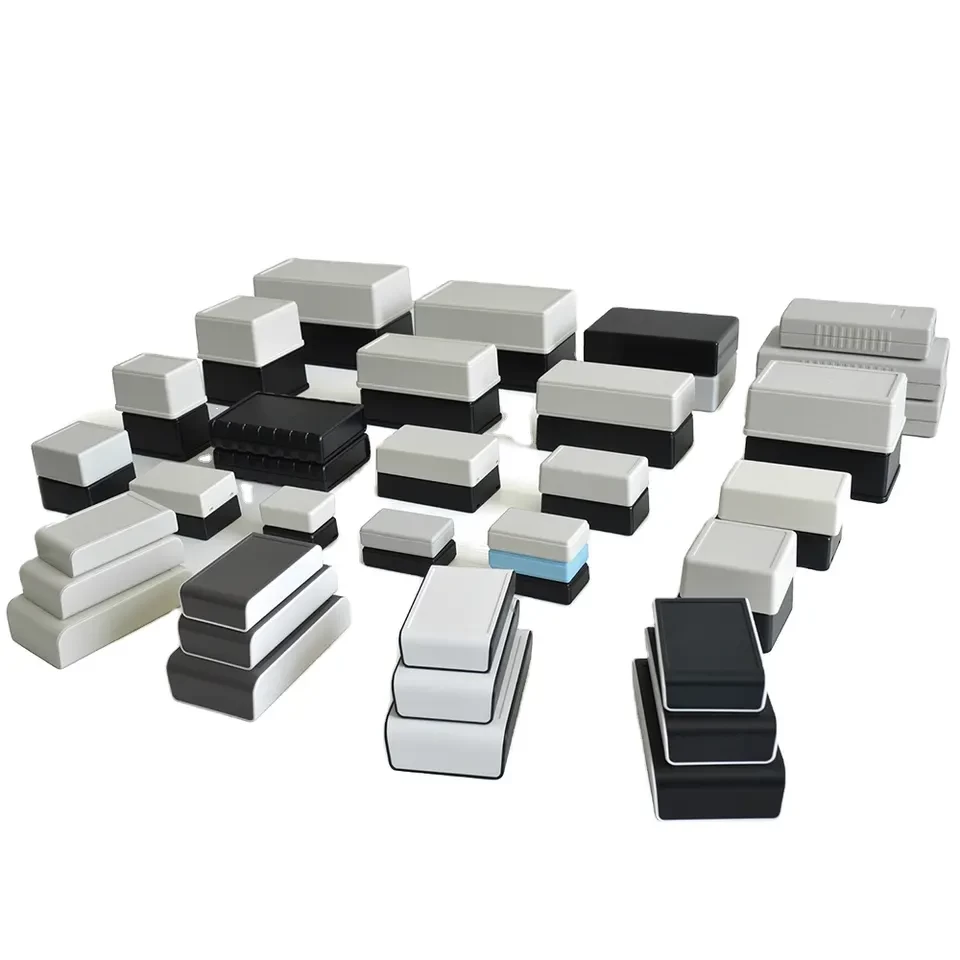

AK-S-Series Szomk Custom Plastic Enclosure For Electronics Junction Box Abs Standard Pcb Plastic Housing
- 1、Model Number:AK-S-Series.
- 2、Material:ABS.
- 3、Product Name:Standard Plastic Enclosures.
- 4、Features:Available in many sizes, durable and exquisite.
- 5、Application: Outdoor or indoor electronics equipment
- 6、130+sizes are available
What can SZOMK do for you?

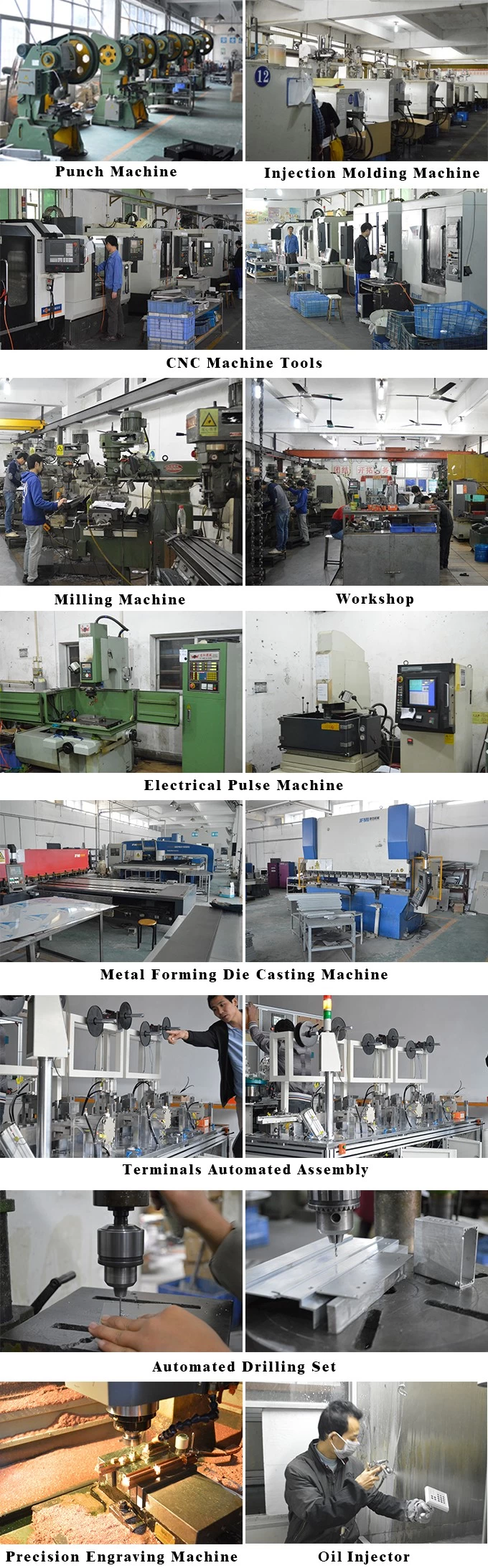

Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)
6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.

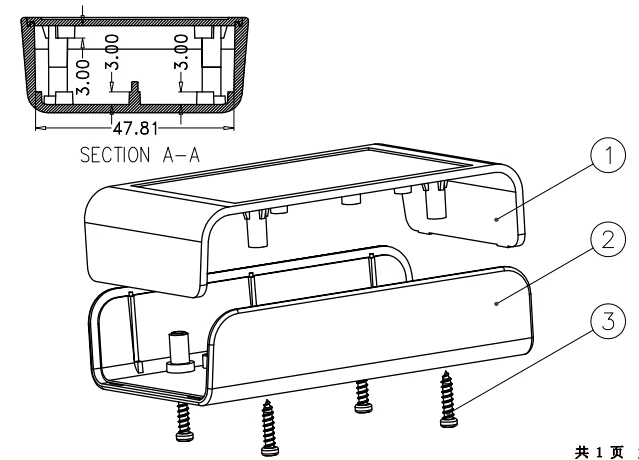

Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
AK-S-Series Szomk Custom Plastic Enclosure For Electronics Junction Box Abs Standard Pcb Plastic Housing

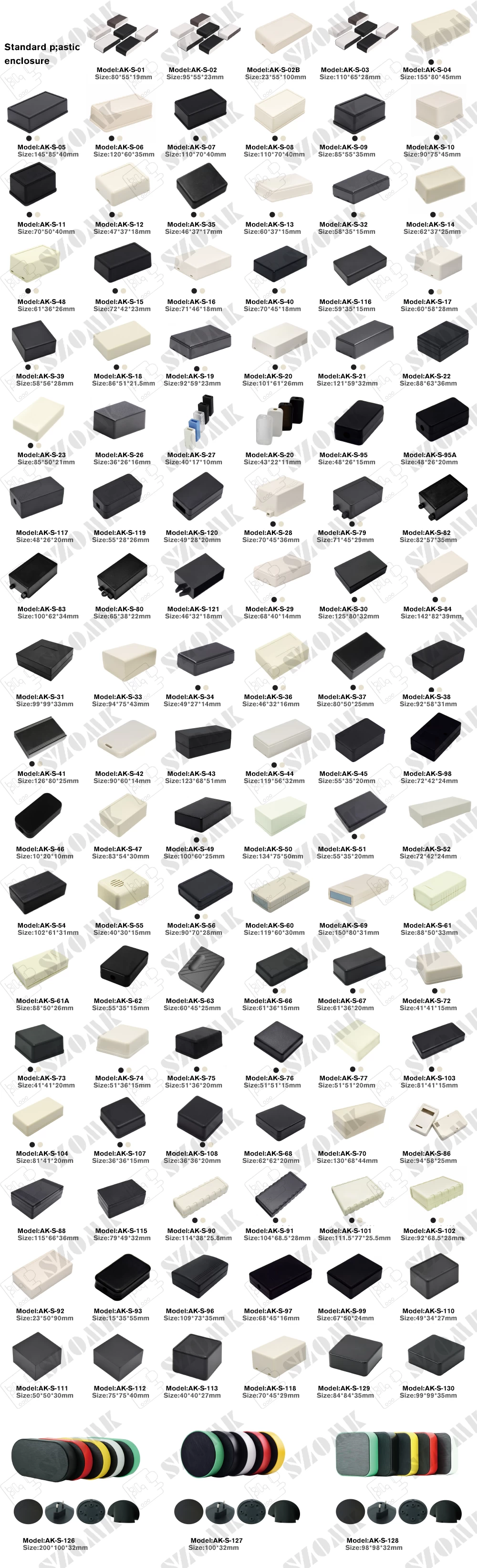

| Standard Plastic Enclosures | |||||||
| Model | Sizes(mm) | Model | Sizes(mm) | Model | Sizes(mm) | Model | Sizes(mm) |

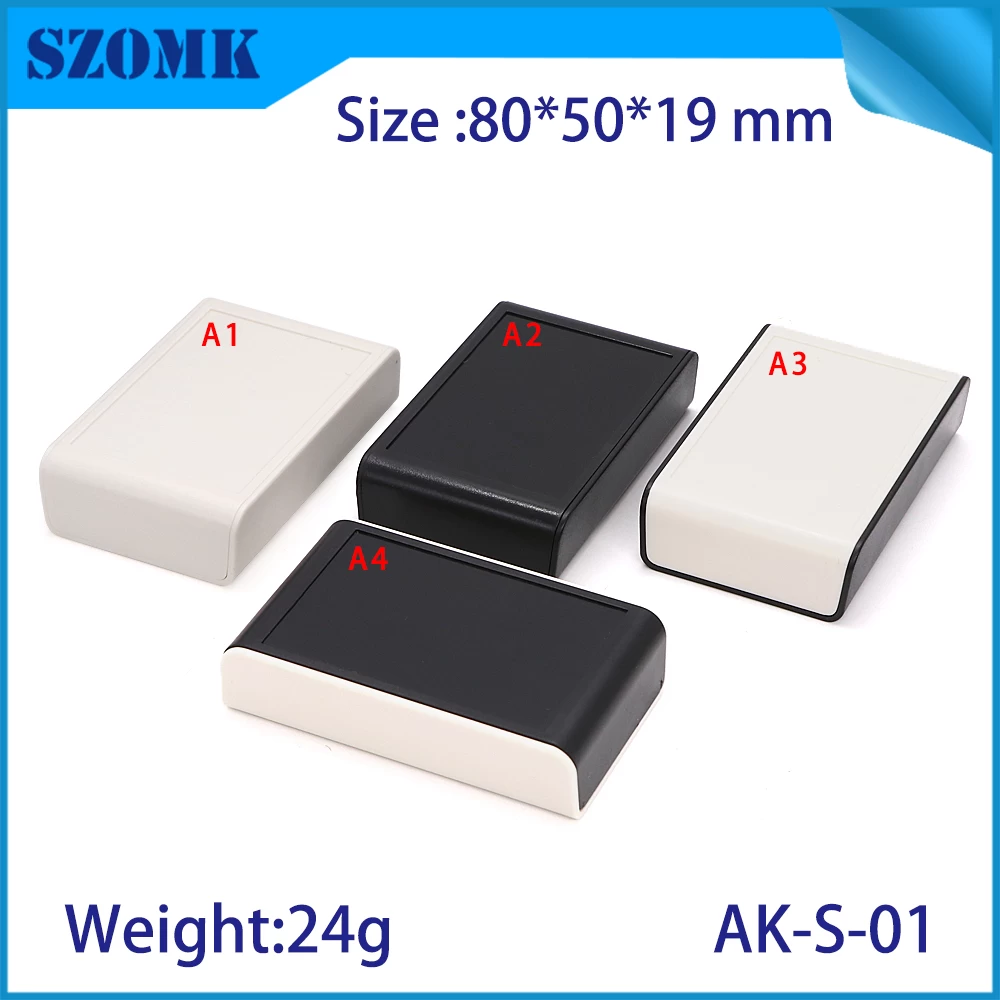

| AK-S-01 | 90*60*14 | AK-S-31 | 40*17*10 | AK-S-64 | 100*32 | AK-S-103 | 115*66*36 |
| AK-S-02 | 126*80*25 | AK-S-32 | 40*17*10 | AK-S-66 | 46*32*18 | AK-S-104 | 94*58*25 |
| AK-S-02B | 67*50*24 | AK-S-33 | 36*26*16 | AK-S-67 | 49*28*20 | AK-S-107 | 100*62*34 |
| AK-S-03 | 72*42*24 | AK-S-34 | 85*50*21 | AK-S-68 | 46*36*18 | AK-S-108 | 82*57*35 |
| AK-S-04 | 68*45*16 | AK-S-35 | 88*63*36 | AK-S-69 | 55*28*26 | AK-S-110 | 71*45*29 |
| AK-S-05 | 109*73*35 | AK-S-37 | 121*58*32 | AK-S-71 | 70*45*29 | AK-S-111 | 51*51*20 |
| AK-S-06 | 48*26*20 | AK-S-38 | 100*60*25 | AK-S-72 | 48*26*20 | AK-S-112 | 51*51*15 |
| AK-S-07 | 48*26*15 | AK-S-39 | 92*59*23 | AK-S-73 | 59*35*15 | AK-S-113 | 51*36*20 |
| AK-S-08 | 15*35*55 | AK-S-40 | 85*51*21.5 | AK-S-74 | 79*49*32 | AK-S-115 | 51*36*15 |

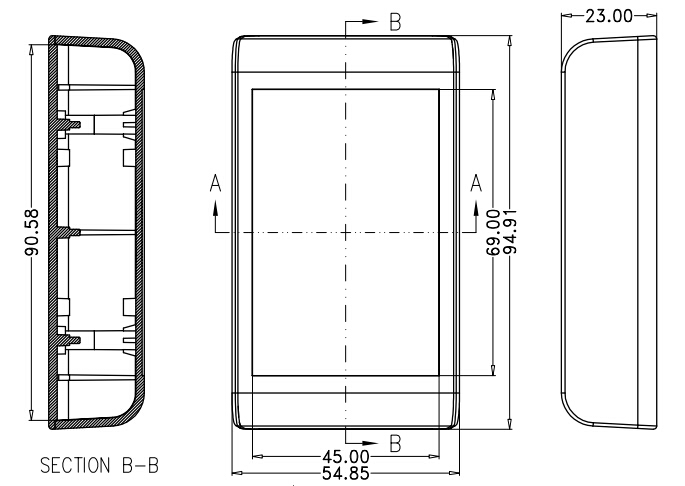

| AK-S-09 | 23*50*90 | DK-S-41 | 95*55*23 | AK-S-75 | 40*40*27 | AK-S-116 | 41*41*20 |
| AK-S-10 | 140*68.5*28 | DK-S-42 | 80*50*19 | AK-S-76 | 75*75*40 | AK-S-117 | 41*41*15 |
| AK-S-11 | 65*38*22 | AK-S-43 | 60*58*28 | AK-S-77 | 50*50*30 | AK-S-118 | 43*22*11 |
| AK-S-12 | 62*62*20 | AK-S-44 | 71*46*19 | AK-S-79 | 49*34*27 | AK-S-119 | 150*80*31 |
| AK-S-13 | 134*75*50 | AK-S-45 | 72*42*23 | AK-S-80 | 70*50*40 | AK-S-120 | 61*36*20 |
| AK-S-14 | 40*20*10 | AK-S-46 | 62*37*25 | AK-S-82 | 36*36*20 | AK-S-121 | 61*36*15 |
| AK-S-15 | 56*36*22 | AK-S-48 | 138*91*24 | AK-S-83 | 36*36*15 | AK-S-122 | 42*16*19 |
| AK-S-16 | 119*56*32 | AK-S-49 | 99*99*35 | AK-S-86 | 81*41*20 | AK-S-123 | 60*45*25 |
| AK-S-17 | 123*68*51 | AK-S-50 | 60*37*15 | AK-S-88 | 81*41*15 | AK-S-124 | 54*34*14 |
| AK-S-18 | 70*45*18 | AK-S-51 | 84*84*35 | AK-S-89 | 92*68.5*28 | AK-S-125 | 88*50*26 |

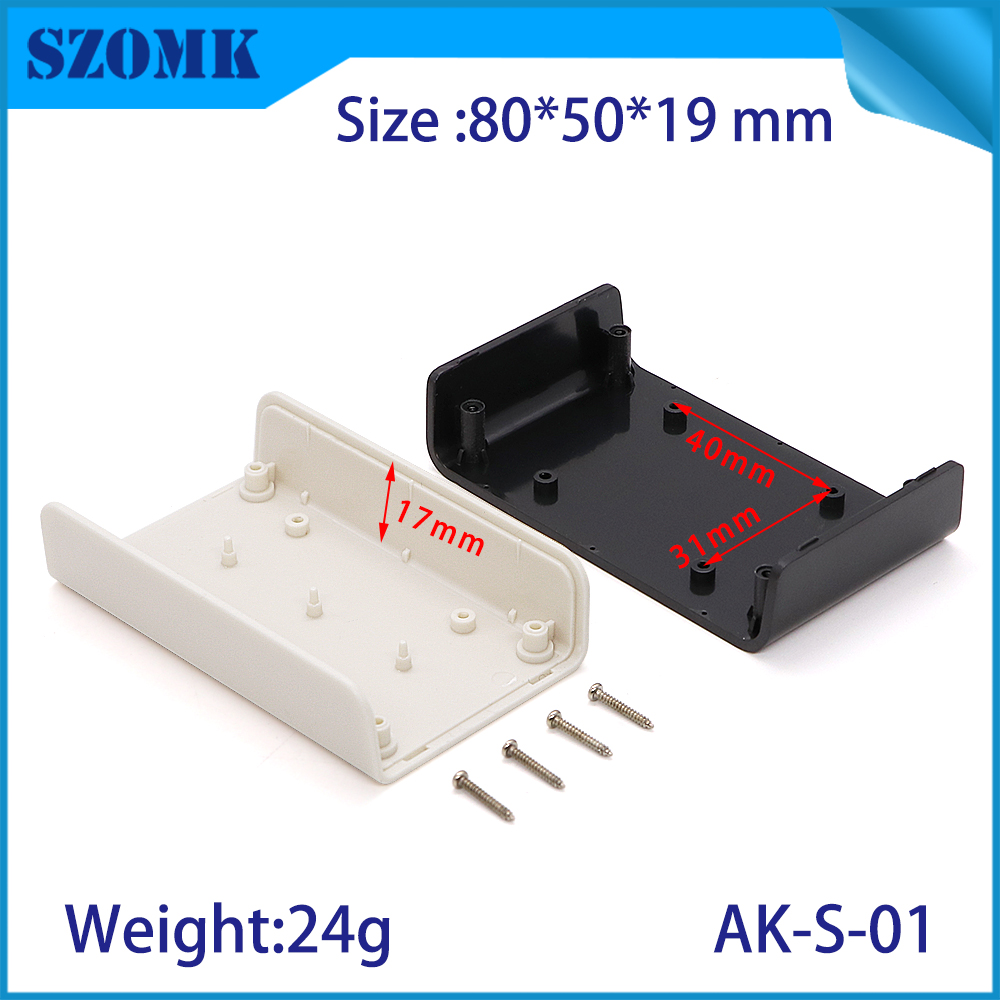

| AK-S-19 | 58*56*28 | AK-S-52 | 98*98*32 | AK-S-90 | 111.5*77*25.5 | AK-S-126 | 88*50*33 |
| AK-S-20 | 92*58*31 | AK-S-54 | 98*98*32 | AK-S-91 | 80*75*45 | AK-S-126A | 119*60*30 |
| AK-S-21 | 80*50*25 | AK-S-55 | 98*98*32 | AK-S-92 | 85*75*45 | AK-S-126B | 102*53*30 |
| AK-S-22 | 46*37*17 | AK-S-56 | φ100*32 | AK-S-93 | 105*65*40 | AK-S-127 | 122*65*41 |
| AK-S-23 | 49*27*18 | AK-S-57 | φ100*32 | AK-S-95 | 110*70*40 | AK-S-127A | 154*82*33 |
| AK-S-26 | 94*75*43 | AK-S-58 | φ100*32 | AK-S-95A | 120*60*35 | AK-S-127B | 90*70*28 |
| AK-S-27 | 58*35*15 | AK-S-59 | 200*100*32 | AK-S-96 | 145*85*40 | AK-S-128 | 40*30*15 |
| AK-S-27C | 99*99*31 | AK-S-60 | 200*100*32 | AK-S-97 | 155*80*45 | AK-S-128A | 102*61*32 |
| AK-S-28 | 125*80*32 | AK-S-61 | 200*100*32 | AK-S-98 | 110*65*28 | AK-S-128B | 177*94*35 |
| AK-S-28A | 68*40*14 | AK-S-61A | 140*85*31 | AK-S-99 | 100*55*23 | AK-S-129 | 91*57*22 |
| AK-S-29 | 110*65*35 | AK-S-62 | 200*100*32 | AK-S-101 | 115*32*25 | AK-S-130 | 100*60*25 |
| AK-S-30 | 70*45*36 | AK-S-63 | 95*95*32 | AK-S-102 | 60*54*20 | AK-S-131 | 61*36*26 |
| Product parameters | |
| Product Name | Small standard plastic enclosure |
| Brand | SZOMK |
| Material | ABS Plastic |
| Color | Black and white |
| MOQ | 1pc |
| Application field | Outdoor or indoor electronics equipment |
| OEM/ODM | Accept |

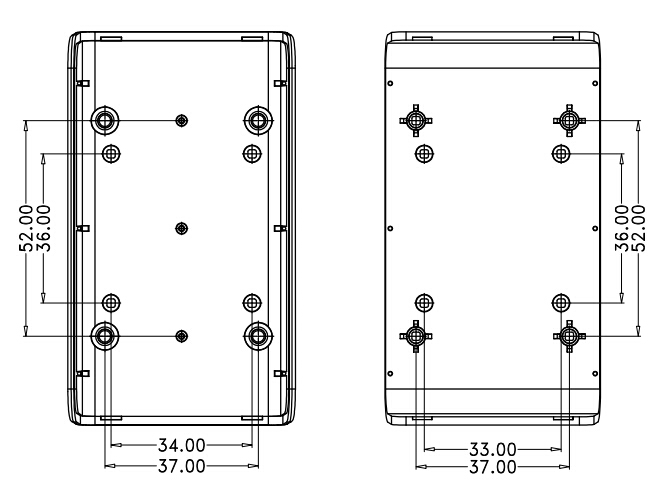

| Drawing | PDF/CAD/3D |
Products Packing
