Multiple Sizes IP65 Junction Box Cable Outdoor Waterproof Case Enclosure Plastic Box Electronic Project Case for Electronic Equipment
- 1、Model Number:AK-B-Series

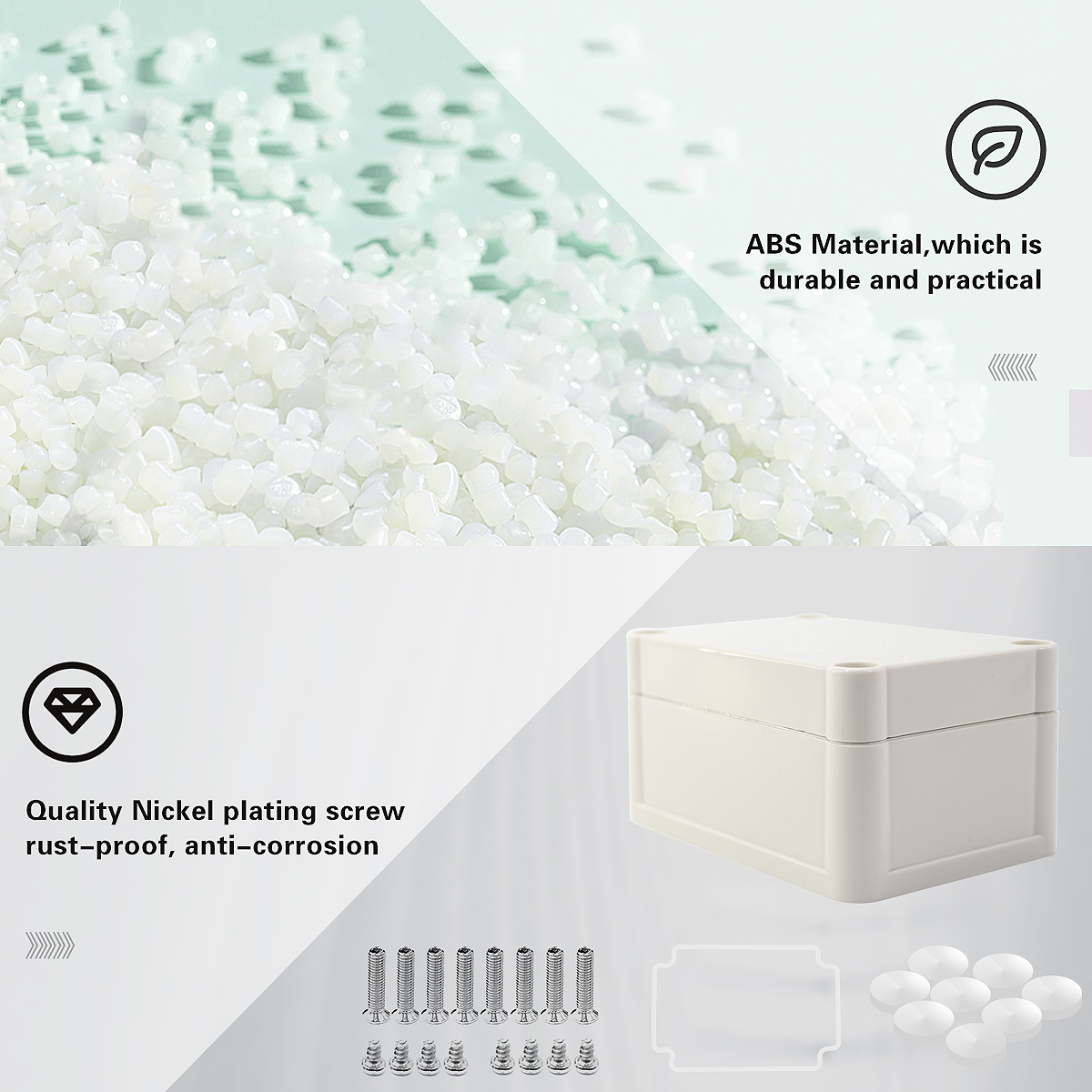

- 2、Material:ABS
- 3、Product Name: Outdoor Ip65 Power Button Junction Box
- 4、IP Rating:IP65
- 5、Feature:Durable and practica,easy to use,equipped with mounting screws
- 6、MOQ:1piece
- 7、Application:For electronic projects, tool housings, power supplies, temperature control boxes, etc. The junction box can also act as an electrical instrument box or as a component box, etc.

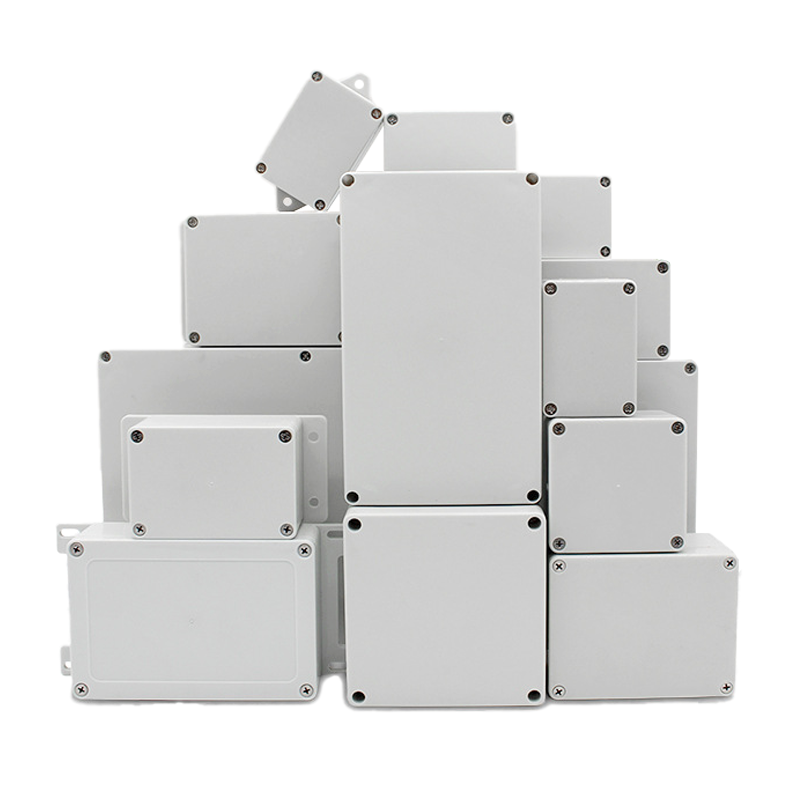

- 8、Size:140+ sizes are available
What can SZOMK do for you?
Main categories: Plastic Enclosure, Aluminum Enclosure, Plastic Injection Mold, CNC Products, 3D Print Products
1,2000+ models Factory One-stop Enclosures,we have some goods in our stock--MOQ:1 pcs
2,We can do DIY small order custom services-----MOQ:20-50 pcs
3,We can design private custom enclosures(if you provide PCB)
4,To private mold customization (Provide sample or STEP file)

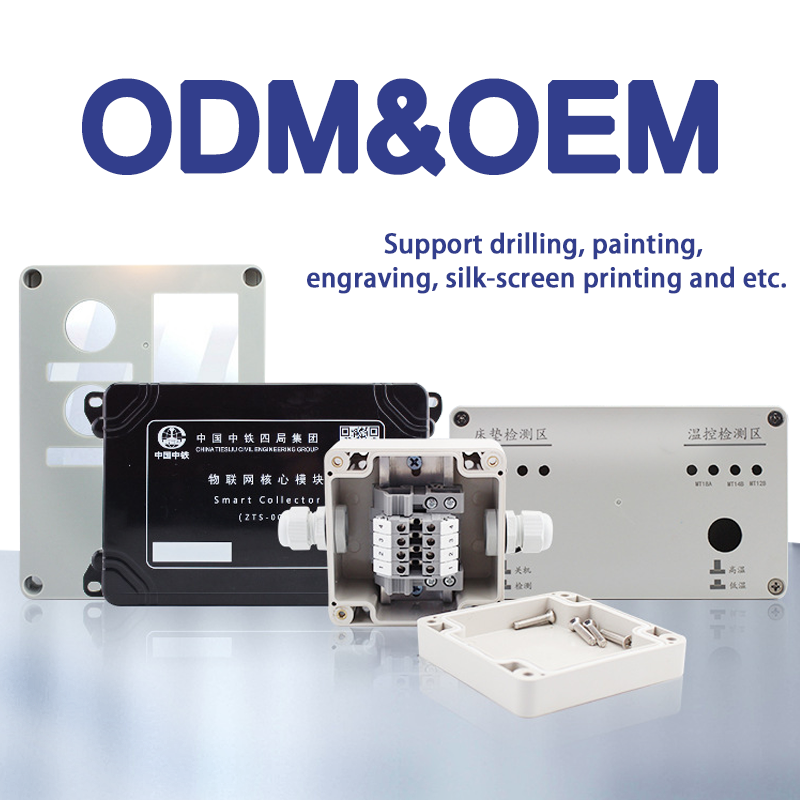

6,Customized service: cutout/mold/Acrylicplate/PVC label/Silkscreen/laserengraving/sticker/silicone/change color and soon.
Contact SZOMK- Provide expert technical advice for your PCBs and electronic components,and discover how easy it is to specify the perfect enclosures for your electronics. Drawings are provided for each model.
Multiple Sizes IP65 Junction Box Outdoor Waterproof Case Enclosure Plastic Box Electronic Project Case for Electronic Equipment
| Product parameters | |
| Products Name | IP65 Waterproof Plastic Enclosure |
| Material | ABS,accept customization |
| Model Number | AK-B-Series |
| Operating Temperature | -30°~max80° |

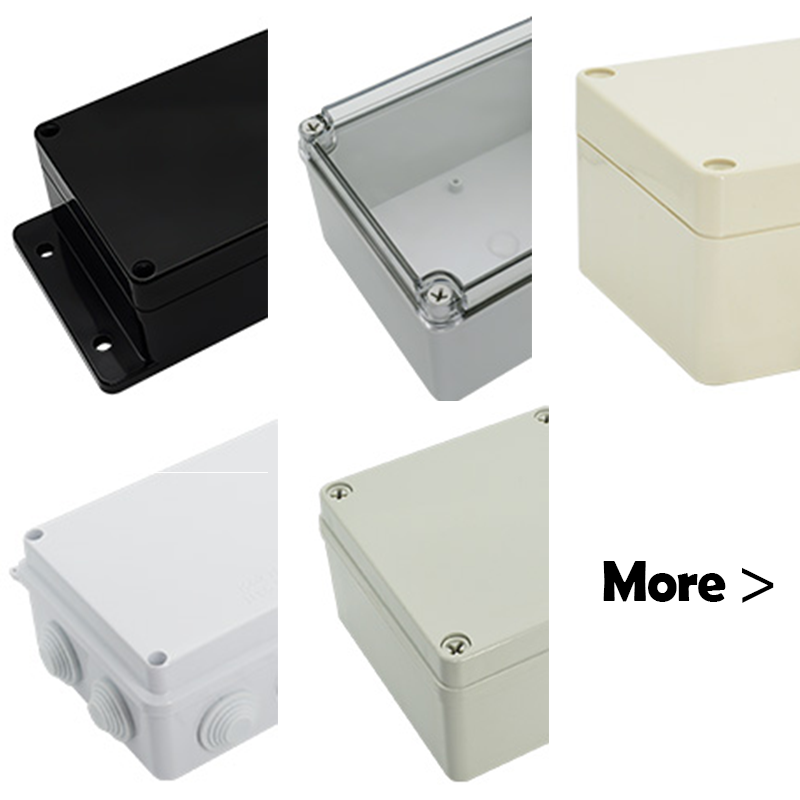

| Color | Beige,black,accept customization |
| IP Rating | IP65 |
| Customized Service | Cutout,silkscreen Printing/ pad printing, laser engraving, UV printing, sticker, membrane keyboard, acrylic plate, oil painting,plastic electroplating, hot melt treatment,custom PC plate,plastic CNC, ultrasonic welding, RFI/EMI shielding coating, Change Material UL94-V0 , Flame Retardant ,High-temperature Retardant. |
| MOQ | 1piece |
| Certification | ROHS, REACH |
| Assembly includes | Screw |
| Application | Outdoor electrical equipments |

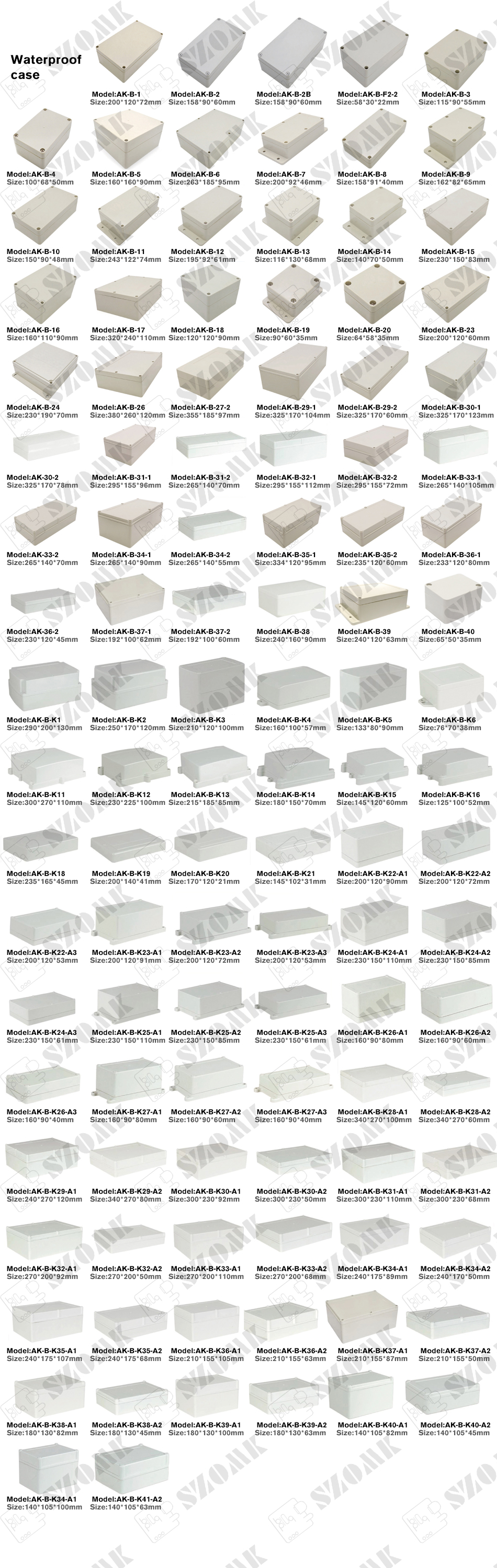

| AK-B-Series IP65 Waterproof Junction Box | |||||
| Model No | Sizes (L*W*H mm) | Model No | Sizes (L*W*H mm) | Model No | Sizes (L*W*H mm) |
| AK-B-1 | 200×120×72 | AK-B-F37-1 | 192×100×62 | AK-B-K27-2 | 160×90×60 |
| AK-B-2 | 158×90×60 | AK-B-F37-2 | 192×100×45 | AK-B-K27-3 | 160×90×40 |
| AK-B-2B | 158×90×60 | AK-B-F38 | 240×160×90 | AK-B-K28-1 | 340×270×100 |
| AK-B-2-2 | 158×90×75 | AK-B-F39 | 240×120×63 | AK-B-K28-2 | 340×270× 60 |
| AK-B-3 | 115×90×55 | AK-B-F40 | 65×50×35 | AK-B-K29-1 | 340×270×120 |
| AK-B-4 | 100×68×50 | AK-B-F50B | 480×370×200 | AK-B-K29-2 | 340×270× 80 |
| AK-B-5 | 160×160×90 | AK-B-F51 | 390×290×165 | AK-B-K30-1 | 300×230×92 |
| AK-B-6 | 263×185×95 | AK-B-F51B | 390×290×165 | AK-B-K30-2 | 300×230×50 |
| AK-B-7 | 197×92×46 | AK-B-F52 | 290×190×140 | AK-B-K31-1 | 300×230×110 |
| AK-B-8 | 158×90×39 | AK-B-F52A | 290×190×140 | AK-B-K31-2 | 300×230× 68 |
| AK-B-9 | 162×81×65 | AK-B-F52B | 290×190×140 | AK-B-K32-1 | 270×200×92 |
| AK-B-10 | 158×90×46 | AK-B-F52C | 290×190×140 | AK-B-K32-2 | 270×200× 50 |
| AK-B-11 | 240×120×75 | AK-B-F53 | 340×240×155 | AK-B-K33-1 | 270×200×110 |
| AK-B-12 | 195×90×60 | AK-B-F53B | 340×240×155 | AK-B-K33-2 | 270×200× 68 |
| AK-B-13 | 115×129×68 | AK-B-F54 | 240×170×110 | AK-B-K34-1 | 240×175×89 |
| AK-B-14 | 138×68×50 | AK-B-F54B | 240×170×110 | AK-B-K34-2 | 240×175× 50 |
| AK-B-15 | 230×150×85 | AK-B-K1 | 290×200×130 | AK-B-K35-1 | 240×175×107 |
| AK-B-16 | 160×110×90 | AK-B-K2 | 250×170×120 | AK-B-K35-2 | 240×175×68 |
| AK-B-17 | 320×240×110 | AK-B-K3 | 210×120×110 | AK-B-K36-1 | 210×155×105 |
| AK-B-18 | 120×120×90 | AK-B-K4 | 160×100×56 | AK-B-K36-2 | 210×155×63 |
| AK-B-19 | 89×58×35 | AK-B-K5 | 133×80×90 | AK-B-K37-1 | 210×155×87 |
| AK-B-20 | 64×58×35 | AK-B-K6 | 100×70×38 | AK-B-K37-2 | 210×155× 45 |
| AK-B-21 | 84×59×33 | AK-B-K11 | 300×270×110 | AK-B-K38-1 | 180×130×82 |
| AK-B-22 | 263×185×70 | AK-B-K12 | 230×255×100 | AK-B-K38-2 | 180×130× 45 |
| AK-B-23 | 200×120×60 | AK-B-K13 | 215×185×85 | AK-B-K39-1 | 180×130×100 |
| AK-B-24 | 230×190×70 | AK-B-K14 | 180×150×70 | AK-B-K39-2 | 180×130×63 |
| AK-B-25 | 200×163×90 | AK-B-K15 | 145×120×60 | AK-B-K40-1 | 140×105×82 |
| AK-B-26 | 380×260×120 | AK-B-K16 | 125×100×52 | AK-B-K40-2 | 140×105× 45 |
| AK-B-27-1 | 355×185×133 | AK-B-K18 | 235×165×45 | AK-B-K41-1 | 140×105×100 |
| AK-B-27-2 | 355×185×97 | AK-B-K19 | 200×140×41 | AK-B-K41-2 | 140×105× 63 |
| AK-B-F28-1 | 355×185×113 | AK-B-K20 | 170×120×21 | AK-B-FT1 | 200×120×72 |
| AK-B-F28-2 | 355×185×77 | AK-B-K21 | 145×102×31 | AK-B-FT2 | 158×90×60 |
| AK-B-F29-1 | 325×170×103 | AK-B-K22-1 | 200×120×90 | AK-B-FT3 | 115×90×55 |
| AK-B-F29-2 | 325×170×60 | AK-B-K22-2 | 200×120×72 | AK-B-FT4 | 100×68×50 |
| AK-B-F30-1 | 325×170×123 | AK-B-K22-3 | 200×120×53 | AK-B-FT5 | 160×160×90 |
| AK-B-F30-2 | 325×170×78 | AK-B-K23-1 | 200×120×90 | AK-B-FT6 | 263×185×95 |
| AK-B-F31-1 | 295×155×96 | AK-B-K23-2 | 200×120×72 | AK-B-FT9 | 162×81×65 |
| AK-B-F31-2 | 295×155×55 | AK-B-K23-3 | 200×120×53 | AK-B-FT11 | 240×120×75 |
| AK-B-F32-1 | 295×155×112 | AK-B-K24-1 | 230×150×110 | AK-B-FT12 | 195×90×60 |
| AK-B-F32-2 | 295×155×72 | AK-B-K24-2 | 230×150×85 | AK-B-FT13 | 115×129×68 |
| AK-B-F33-1 | 265×140×105 | AK-B-K24-3 | 230×150×61 | AK-B-FT14 | 138×68×50 |
| AK-B-F33-2 | 265×140×70 | AK-B-K25-1 | 230×150×110 | AK-B-FT15 | 230×150×85 |
| AK-B-F34-1 | 265×140×90 | AK-B-K25-2 | 230×150×85 | AK-B-FT16 | 160×110×90 |
| AK-B-F34-2 | 265×140×55 | AK-B-K25-3 | 230×150×61 | AK-B-FT17 | 320×240×110 |
| AK-B-F35-1 | 230×120×95 | AK-B-K26-1 | 160×90×80 | AK-B-FT18 | 120×120×90 |
| AK-B-F35-2 | 230×120×60 | AK-B-K26-2 | 160×90×60 | AK-B-FT21 | 84×59×33 |
| AK-B-F36-1 | 230×120×80 | AK-B-K26-3 | 160×90×40 | AK-B-FT23 | 200×120×60 |
| AK-B-F36-2 | 230×120×45 | AK-B-K27-1 | 160×90×80 | AK-B-FT25 | 200×163×90 |
Product packing
